Solar kit 4000w solar panel 230v converter

Hybrid solar set with a continuous power of 2000W and 4000W. Off-grid installation does not require notification and approval of the power plant. The proposed set allows the use of 230V power supply with a total power of 2000W CONTINUOUS 4000W. Ready-made photovoltaic set based on the VOLT POLSKA SINUS PRO ULTRA 4000 solar converter with a built-in regulator. MPPT 80A charging with 2X180W SOLAR PANELS, 2 power devices such as:

TVs, refrigerators, coolers, power tools, water pumps, compressors, transformer power supplies, power supplies for laptops, telephones, central heating stoves, central heating pumps, office equipment - printers, scanners, computers

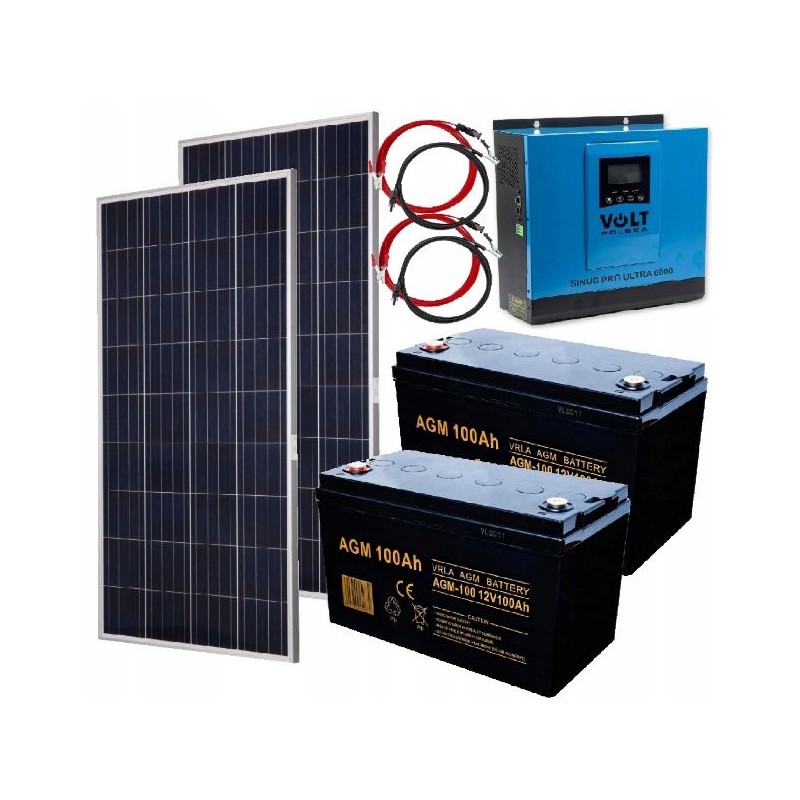

WE RECOMMEND THAT THE SET IS CONNECTED BY A PROFESSIONAL OR A PERSON KNOWING THE BASICS OF ELECTRONICS in the set you receive: 2 X Solar Panel 180W VOLT POLSKA

SINUS PRO ULTRA 4000 SOLAR INVERTER 24/230V

2 X AGM BATTERY 100Ah MAINTENANCE-FREE

4 m long connection cable

1 x CABLE FOR BATTERY CONNECTION 25 CM

SET HAS 2 180W PANELS THAT CHARGE 100AH BATTERIES THAT POWER THE SOLRANE INVERTER WHICH GIVES A CONSTANT POWER OF 2000W. DEVICES WITH A CONSTANT POWER OF 2000 W OFF-Grid CAN BE CONNECTED TO THE DEVICE. Solar inverter VOLT POLSKA 4kW-24 2000 W / 4000WTechnical data

Total power (instantaneous): 4000VA

Constant power: 2000W

Battery voltage: 24VDC

Vmp range from panels: 30VDC-120VDC

Maximum charging current from panel system: Imp up to 60A

Input voltage range (mains supply): 170VAC-280VAC

Output voltage range (mains supply): 220VAC-240VAC

Maximum charging current from the network: 10/20A

Maximum charging current: 70 A

Output voltage range (converter): 230 V + -3%

Operating temperature: 0-40 ° C

Dimensions: 224x337x97 mm

Weight: 5.7 kg

BATTERY VOLTAGE : 12V BATTERY CAPACITY: 100 Ah Maintenance-free batteries are made in AGM technology and intended for use in emergency power systems and other applications in which the battery operates cyclically or in a buffer mode.

They are characterized by high resistance to deep discharges

They absorb gases very well.

Designed service life is 8-10 years at 20-25°C.

Why is it worth using the battery:

Does not require refilling or replacing the electrolyte

Work in any position

High efficiency and performance

Long life 6-10 years

High resistance to mechanical damage and high temperatures

Safe to use (no electrolyte leakage)

POLI polycrystalline panel with a bypass diode optimizes current flow in the event of shade, has a cell conversion efficiency of over 18%. The panel is covered with matte PET foil and laminated EVA foil. Waterproof, ideal for installation in systems.

Quality guarantee:

Electrical insulation test

Resistance to external conditions test

Hot-spot test

UV resistance test

Test of resistance to temperature changes, hail impacts

Moisture resistance test

Durability Test

Mechanical load resistance test

Technical data

Maximum power Pmax (W): 180 W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.3

Voltage at maximum power Vmp (V): 18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A): 10.59

Module efficiency (%): 18.2

Solar cell efficiency (%) : 19.4

Nominal fuse current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 1480x670x35 mm

Panel frame size: 30 mm

Weight: 9.8 kg
