Solar panel solar kit 180w MPPT controller

Solar kit 180W 12V MPPT* Product code: 35951

The solar kit with a power of 180W is a modern and efficient solution for obtaining solar energy, ideal for mobile applications such as campers, boats and camping. The key element of the set is a 180W monocrystalline panel, which is characterized by high efficiency and durability, as well as the ability to effectively convert sunlight into electricity.

The MPPT charging regulator with a maximum current of 20A is an important component of the set, increasing the efficiency of the photovoltaic system by up to 25 % compared to traditional PWM controllers. This allows for more efficient use of the energy collected by solar panels. The set also includes 5-meter solar cables equipped with connectors, which facilitates installation and ensures a safe connection of the panels with the controller. The suggested battery for use in the set is a battery with a capacity of 80-120Ah.

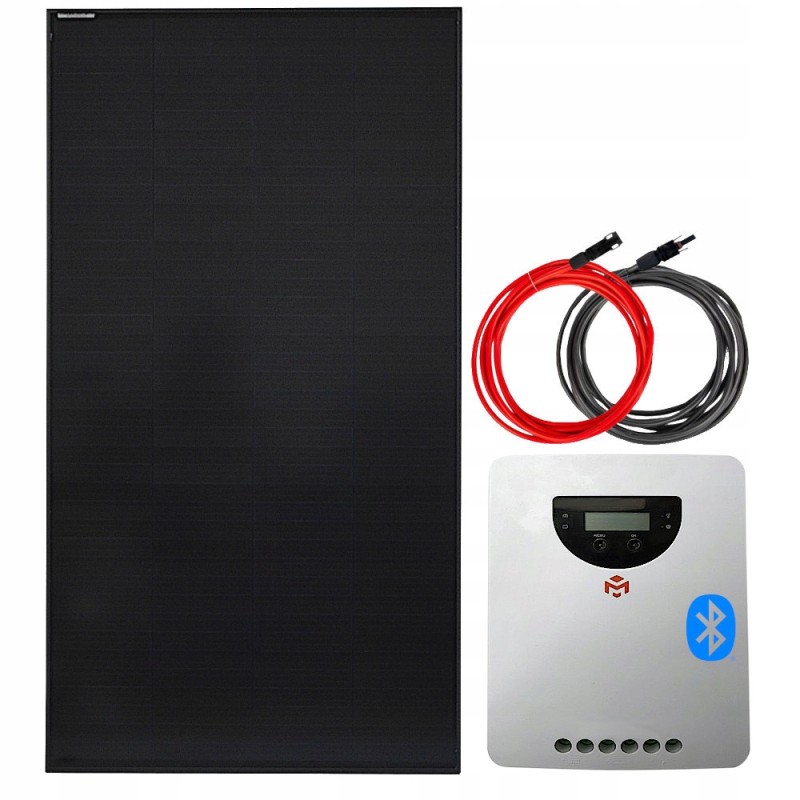

The set includes:* 1x Solarfam 180W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charge controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solar panel Solarfam 180W monocrystalline Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22%

Max power voltage [Vmp]: 21.55 V

Max current [Imp]: 8, 36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: -40°C to +85°C

Protection: Bypass diode

Frame : Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
