Solar battery 200w monocrystalline 12v bt

Solar kit 200W 12V MPPT 20A* Product code: 36346

The 200W solar kit is an advanced solution in the field of renewable energy sources. The key element of the set is a 200W solar panel made of monocrystalline cells, which are characterized by higher efficiency compared to polycrystalline panels. Such properties are particularly important in the context of the Polish climate, where sunlight conditions are varied. The set also includes an MPPT 20A charging regulator, which maximizes charging efficiency, increasing the efficiency of the entire system. This regulator is crucial for optimizing the process of converting solar energy into useful electricity. Additionally, the set includes 2x5 meters of solar cables with a cross-section of 4 mm2, terminated with connectors, which facilitates installation and ensures a stable connection. The recommended battery for this set is a model with a capacity from 80 to 120Ah.

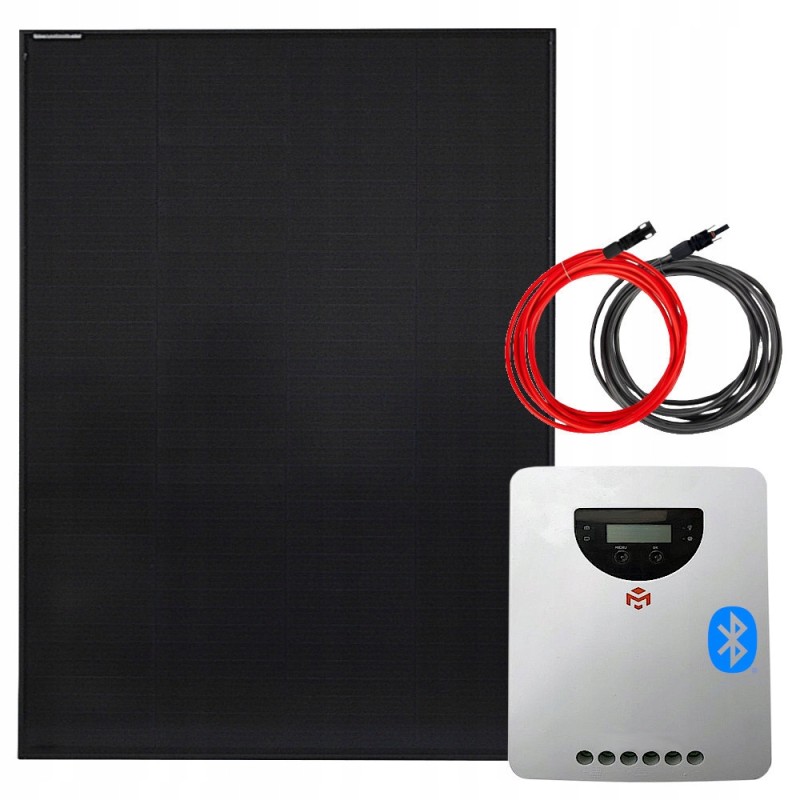

The set includes:* 1x Solarfam 200W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charge controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solar panel Solarfam 200W monocrystalline Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp]: 18.15 V

Max current [Imp]: 11.02 A

No-load voltage [Voc]: 21.57 V

Short-circuit current [Isc]: 11.69 A

Operating temperature: -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: 3.2mm tempered glass

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11.2 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
