Solar kit 2000w solar panel 230v converter

Hybrid solar set with a continuous power of 1000W and an instantaneous power of 2000W. The proposed set enables the use of a 230V power supply with a total power of 1000W CONTINUOUS 2000W. Ready-made photovoltaic set based on the off-grid SINUS PRO ULTRA 2000 solar converter with a built-in MPPT 60A charging regulator along with a SOLAR PANEL and battery 100Ah AGM 12V VRLA, with cables and connection terminals, create a unique off-grid set with a power of up to 2000W. Thanks to the use of a 12V/230V sine voltage converter and 100Ah BATTERIES, you can power devices such as: TVs, refrigerators , refrigerators, power tools, water pumps, compressors, transformer power supplies, power supplies for laptops, phones, central heating furnaces, central heating pumps, office equipment - printers, scanners, computers

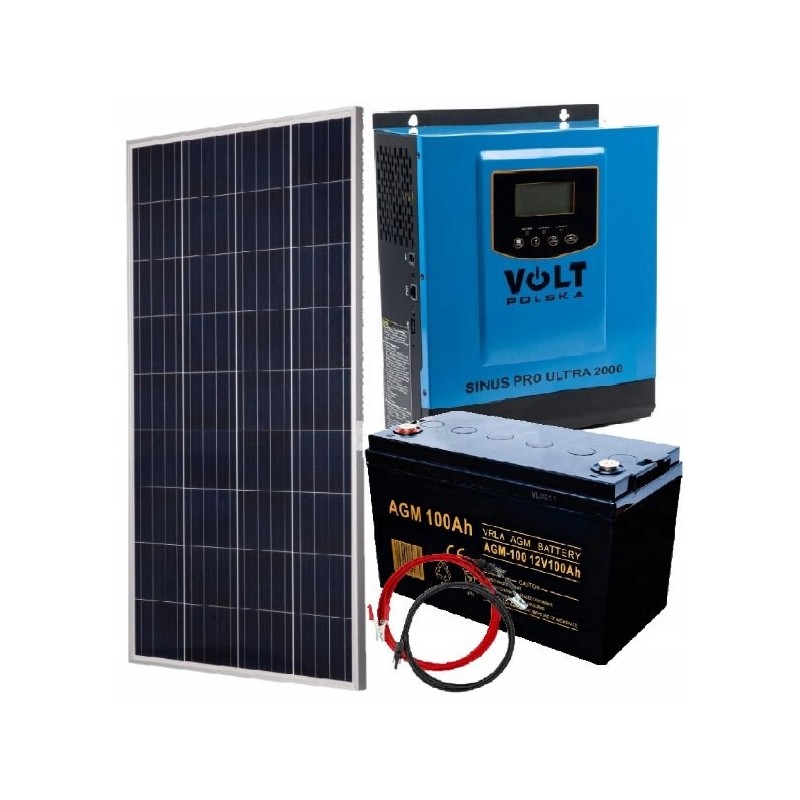

WE RECOMMEND THAT THE KIT IS CONNECTED BY A PROFESSIONAL OR A PERSON KNOWING THE BASICS OF ELECTRONICS The set includes: Panel Solar 180W VOLT POLSKA

SOLAR INVERTER SINUS PRO ULTRA 2000 12/230V

100Ah AGM BATTERY, MAINTENANCE-FREE

4 m long connection cables

Off-Grid Solar inverter VOLT POLSKA ULTRA 2000 1000W -2000W SINUS PRO ULT emergency power supply RA 2000 is used to power demanding electrical devices 230V alternating voltage from 12V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load.

Technical data

Total power (instantaneous): 2000 VA

Constant power: 1000 W

Battery voltage: 12VDC

Input voltage range (photovoltaic panel): 15VDC-60VDC

Maximum charging current from the panel system: 60A

Input voltage range (mains supply): 170VAC-280VAC

Output voltage range (mains supply): 220VAC-240VAC

Maximum charging current from the mains: 10/20A

Maximum charging current: 70A

Range output voltage (converter): 230V+-3%

Operating temperature: 0-40°C

Dimensions: 224 x 337 x 97 mm

Weight: 5 kg

BATTERY VOLTAGE: 12 V BATTERY CAPACITY: 100 Ah Maintenance-free batteries are made in AGM technology and intended for use in emergency power systems as well as other applications in which the battery operates cyclically or in a buffer mode.

They are characterized by high resistance to deep discharges

They absorb gases very well.

The designed lifespan is 8-10 years at 20-25°C.

Why is it worth using the battery:

Does not require refilling or replacing the electrolyte

Work in any position

High efficiency and performance

Long life of 6-10 years

High resistance to mechanical damage and high temperatures

Safe to use (no electrolyte leakage)

Panel polycrystalline POLI with a bypass diode optimizes current flow in the event of shade, has a cell conversion efficiency of over 18%. The panel is covered with matte PET foil and laminated EVA foil. Waterproof, ideal for installation in systems.

Quality guarantee:

Electrical insulation test

Resistance to external conditions test

Hot-spot test

UV resistance test

Test of resistance to temperature changes, hail impacts

Moisture resistance test

Durability Test

Mechanical load resistance test

Technical data

Maximum power Pmax (W): 180 W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.3

Voltage at maximum power Vmp (V): 18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A): 10.59

Module efficiency (%): 18.2

Solar cell efficiency (%) : 19.4

Nominal fuse current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 1480x670x35 mm

Panel frame size: 30 mm

Weight: 9.8 kg
