Solar panel solar kit 170w MPPT controller

Solar kit 170W 12V MPPT* Product code: 35988

The solar kit with a power of 170W is a comprehensive solution for powering 12V devices, ideal for use in motorhomes, camping or on boats. It includes a 170W monocrystalline solar panel and an MPPT 20A charging regulator, as well as a set of solar cables with a cross-section of 4mm2 and a length of 2x5m, terminated with connectors, ensuring a solid connection.

The MPPT 20A regulator effectively manages the energy generated by the panel, increasing the efficiency of the photovoltaic system up to 25% compared to traditional PWM controllers. Thanks to this, even in conditions of variable sunlight, the solar set is able to effectively charge the battery and power various devices.

The solar panel, made of monocrystalline cells, is characterized by high efficiency and durability, which translates into long-term performance. The suggested battery for use in the set is a battery with a capacity of 80-120Ah.

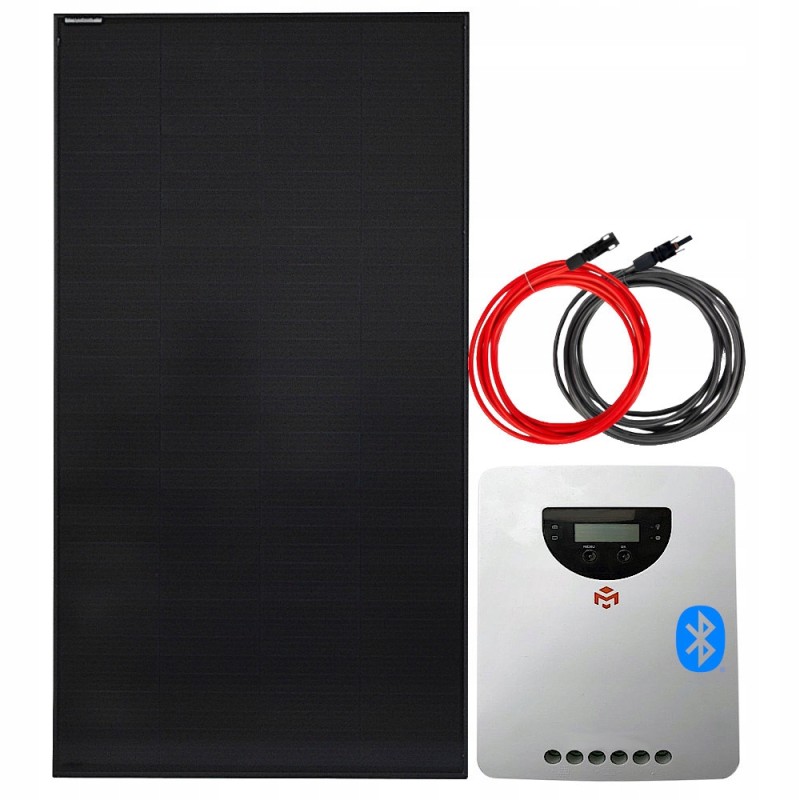

The set includes:* 1x Solarfam 170W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charge controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solar panel Solarfam 170W monocrystalline Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8.75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
