Solar panel solar kit 150w controller

Solar set 150W 12V MPPT 20A* Product code: 33023

The 150W solar set is an innovative solution for people looking for a reliable source of solar energy. It consists of a flexible solar panel with a power of 150 W, using monocrystalline cells, which ensures higher efficiency compared to polycrystalline panels. Its flexibility makes it ideal for installation in various places, such as campers or boats. The key element of the set is the advanced MPPT 20A charge controller, equipped with a Bluetooth function. It enables seamless system monitoring from a smartphone, and MPPT technology provides up to 25% greater efficiency compared to standard PWM controllers. Thanks to this, even in changing light conditions, the system maximizes the benefits of solar energy. The set also includes solar cables 2x5 meters long and 4 mm2 in diameter, which facilitates installation and ensures a stable connection. The recommended battery capacity for use with this system is 80-120Ah.

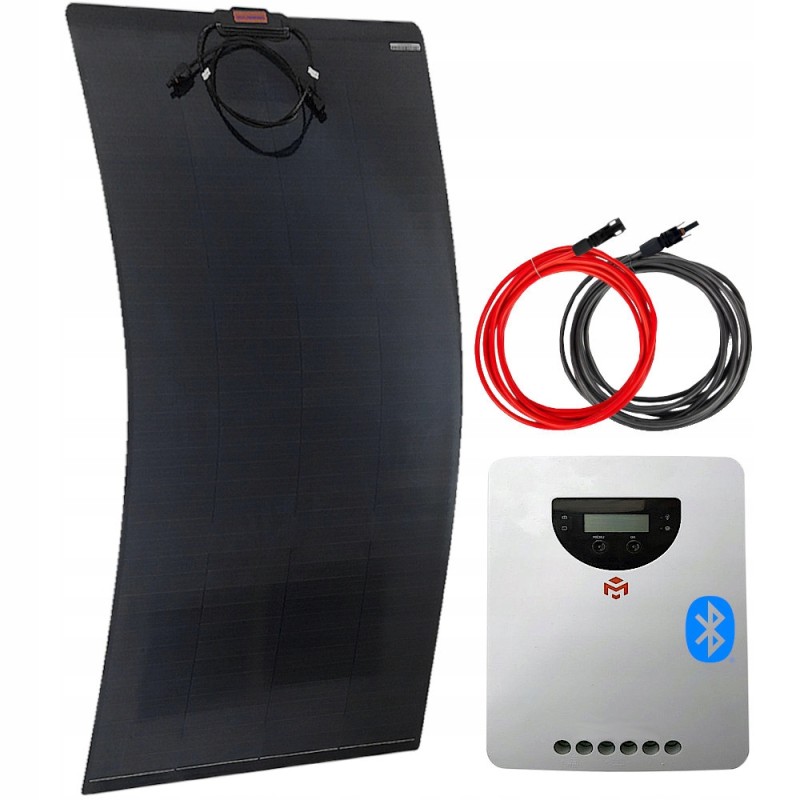

The set includes:* 1x Solarfam 150W flexible panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 150W flexible panel Cells: Monocrystalline

Peak power: 150W

Power tolerance: +3%

Efficiency: 18.8%

Power voltage [Vmp]: 20.35 V

Max current [Imp]: 7.37 A

No-load voltage [Voc]: 24.05 V

Short circuit current [Isc]: 7.81 A

Temperature range: -20 to +85 °C

Connection box: IP67

Cables: 65 cm with MC4 terminals

Base: Black

Height: 117 cm

Width: 68 cm

Thickness: 2 mm

Weight: 3.5 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
