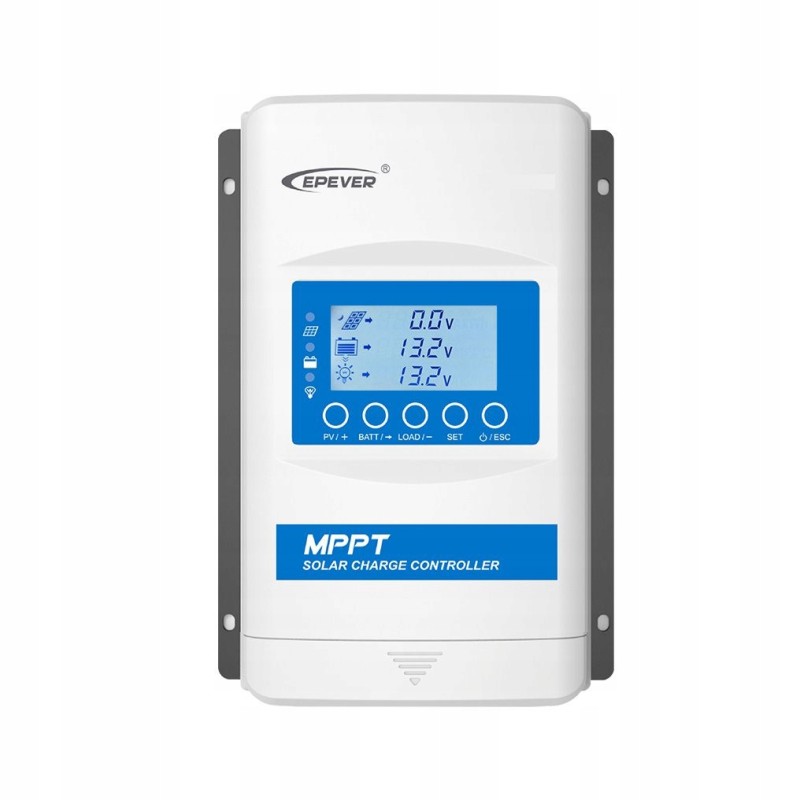

MPPT charging controller xtra4210n xds2 40a

MPPT charge controller XTRA4210N-XDS2 40A R0121

General description

XTRA N series controller with advanced MPPT control algorithm, can minimize the maximum power point loss factor and time loss, by quickly tracking the maximum power point of the PV circuit and obtaining the maximum energy from PV modules under given conditions, can increase the energy utilization factor of PV system by 20% -30% compared to the PWM charging method. Power and current limiting charging time and the power reduction function ensure operational stability in the event of oversizing with PV modules in high temperature conditions. IP33 protection rating and RS485 isolated design further improve? driver reliability and meet? requirements of various applications. The XTRA N series regulator has a three-stage self-adjusting evolving charging mode, based on digital circuit control, which effectively extends the battery life and significantly what streamlines the axis? gi installation. It also has extensive electronic protection against overcharging, deep discharge, reverse charge. polarization? PV and battery etc., provide? c durability and reliability of the system. This series of controllers can be widely used in RV installations, household installations, monitoring installations and many other systems.

Product specifications Max. PV circuit voltage: 100V / 92V (at temperature 25°C) Maximum input power: 520W/12V - 1040W/24V Nominal system voltage: 12/24VDC Battery input voltage range: 8~32V Rated current? d discharge: 40A Rated current? charging time: 40A Power consumption: ≤12mA Dimensions (length x width x height): 255 x 185 x 67.8mm Weight [kg]: 1.7 Features

expandable via BT (bluetooth) interface

the controller supports lead-acid battery types (liquid/gel/AGM)/lithium (LiFePO4/Li(NiCoMn)O2

CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)

Full charging and discharging in full range of operating temperatures

Optional LCD display modules (XDB1/XDS1/XDS2)

High quality and low failure rate of ST, IR components, ensures product durability

Advanced MPPT technology and ultra-fast tracking speed, with tracking efficiency no less than 99.5%

Maximum DC/DC transfer efficiency 98.5%?, under full load up to 97.2%?

Advanced MPPT control algorithm for minimizing MPP loss factor and time loss

Precise recognition and tracking many peaks of maximum power points

Wide MPP operating voltage range

Works with lead-acid and lithium batteries and provides programmable temperature compensation

Limiting power and charging current above the limit values

Real-time energy statistics function

Power limitation at too high temperatures

Multiple receiver control modes

Extensive electronic security

Isolated RS485 with 5V/200mA to protect device output day without power? with the MODBUS

protocol Checking and setting parameters via the mobile application? or PC software

IP33▲

? XTRA4415N for 48V system

Warranty

We provide a 24-month warranty on our products. We guarantee that our products have been manufactured in accordance with the current requirements of European safety and quality standards. The warranty covers any manufacturing defects in terms of materials and workmanship.

The MPPT XTRA N controller has been designed in accordance with the latest thought? technological? . New automatic power and current limiting and reducing function long charging, ensures stable operation in conditions of too high PV power and high temperatures. Additionally, the regulator is water and dust resistant. c class IP33.
