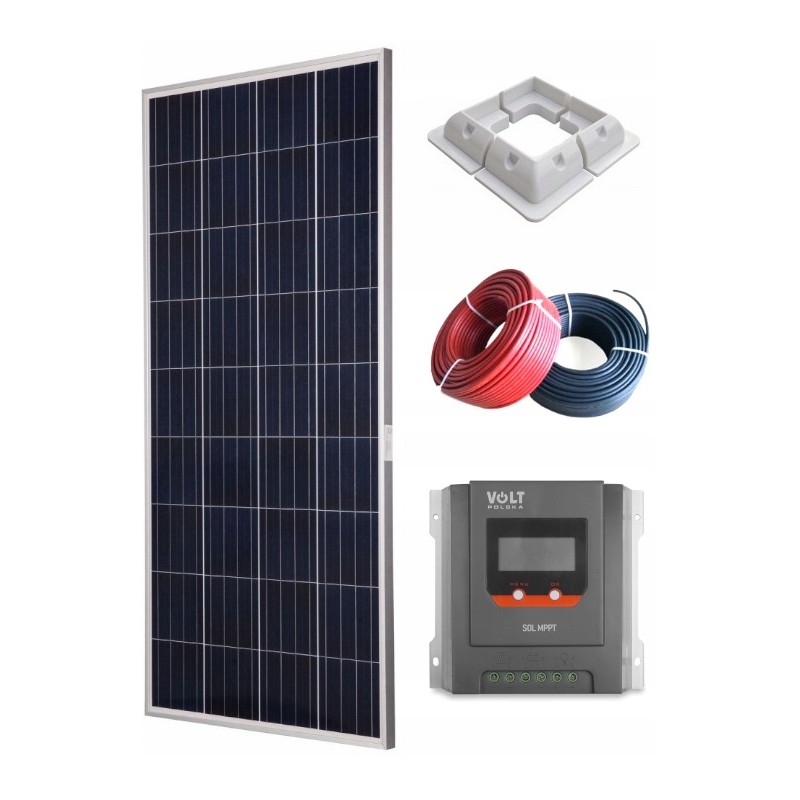

Solar panel controller set 140w MPPT 20A

SOLAR SET WITH PHOTOVOLTAIC PANEL AND REGULATORThe solar panel with a bypass diode optimizes the current flow in the event of shade and has a cell conversion efficiency of over 19.4%. The panel is covered with matte PET foil and laminated EVA foil. Waterproof, ideal for installation in systems. The panel also includes a SOL MPPT solar regulator with the possibility of remote control thanks to the Bluetooth wireless communication function. SOL MPPT performs charging based on the latest and most efficient MPPT charging technology.

The set also includes MC4 connectors, cables, and a set of corner holders.

PRODUCT DESCRIPTION:

Manufacturer: Volt

Maximum power Pmax (W): 140W

Tolerance (%): ± 3%

Open circuit voltage Voc (V):22.5

Voltage at maximum power Vmp (V): 17.96

Current at maximum power Imp (A):9.47

Short-circuit current Isc (A): 10.4

Module efficiency (%): 17.1

Solar cell efficiency (%): 19.4

Fuse nominal current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimensions: 1170 x 670 x 35 x 30 mm

Weight: 9.8kg

Product code: ZPR- 121

QUALITY GUARANTEE:

Electrical insulation test

Resistance to external conditions test

Hot-spot test

UV resistance test

Resistance to temperature changes, hail impact test

Moisture resistance test

Endurance test

Resistance test to mechanical loads

INCLUDED:

Polymorphic panel

Solar regulator

Cables 4m+4m +MC4

Set of corner brackets

SOL MPPT SOLAR REGULATOR

Designed for charging batteries from a connected set of solar panels. This modern and multifunctional device charges based on the latest and most efficient MPPT charging technology.

By optimizing the charging process, the regulator effectively extends battery life compared to standard PWM regulators.

Technical data

Max. charging current: 20A

Battery voltage: 12V/ 24V

Maximum voltage from panels: 100 V

Own power consumption: 7 mA

For batteries: AGM, GEL

MPPT charging voltage: <,14.5/29.0V (at 25°C)

BOOST voltage: 14.5/29.0V (at 25° C)

Equalization Voltage:14.8/29.6 (at 25°C)

Float Voltage:13.7/27.45 (at 25°C)

Low Voltage Load Disconnection:10.8~11.8V/21.6~23.6V SOC1~5

Recycle Voltage connections:11.6~12.8V/23.2~25.6V

Overcharge protection:15.5/31.0V

Temperature compression:-4.17mV/K per cell (Boost, Equalization) -3.33mV/K per cell (Float)

Twilight detection voltage /dawn:5/10V

Dimensions:189x182x64mm

Weight:1.3kg

Protection:IP32

CONNECTORS

MC4 serial connectors are used to hermetically connect solar cables. Suitable for 2.5 mm2, 4 mm2 and 6 mm2 solar cables. Connecting solar cables using our connectors is quick and reliable.

Housing material: PPO

Contact material: Tinned copper

Suitable for cables: 4.0mm²~6.0mm² 12AWG-10AWG

Resistance: less than 0.3 mΩ

Waterproof: IP 67

Pin dimensions: Ø4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Pollution degree: 2

CORNER BRACKET SET

Mounting corners are used to ensure the solar panel is securely attached to vehicles, caravans, boats etc. The mounting hardware will support the solar panel at the optimal height above the surface to allow airflow from below, ensuring the panel's features are used as efficiently as possible .

Length: 150 mm

Width: 150 mm

Height: 66 mm

Cutout for solar panel: 35 mm

Set includes: 4 corner support blocks

Color of corner holders: white

Material: ABS, resistant on UV
