Solar camper set 2x140w 230v sinus 1500s set

Solar Set 280W Mini Power Plant 230V 1000VA 1000Wh

The set includes all the necessary elements to run a mini solar power plant.

The set is perfect for places where there is no access to the electricity grid.

The set can be used in summer houses, allotment gardens and caravans or yachts.

Application: power supply for refrigerators, pumps, RTV equipment, computers, power tools, etc.

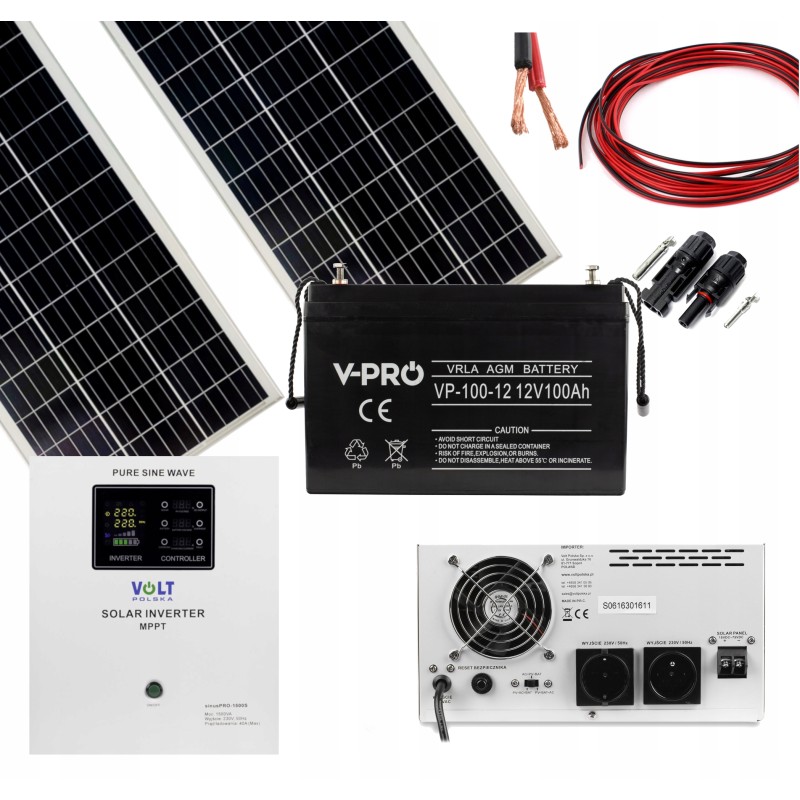

The solar set includes:

2x 140W Polycrystalline solar battery

1x AGM battery with a capacity of 100Ah 12V

1x Volt 1500S solar inverter with MPPT controller 40A 12V/ 230V 1000/1500W

1x Connecting cables 10 m with MC-4

2x Mounting brackets - Plastic corners

Panel technical data:

Maximum power Pmax (W):140W

Tolerance (%):± 3%

Open circuit voltage Voc (V):22.03

Voltage at maximum power Vmp (V):18.36

Current at maximum power Imp (A):7.63

Short-circuit current Isc (A) :8.24

Efficiency module (%):19.4

Solar cell efficiency (%):18.8

Nominal fuse current (A):10

Protection class:IP65

Maximum voltage of the panel system (V):DC1000

Range operating temperatures: -40°C-85°C

Dimension: 1330x540x30x20mm

Weight: 8.5kg

Efficiency of the solar set in the absence of sunlight 1000Wh

enables the operation of a device with a power of e.g. 100W for about 10 hours, or 200W for about 5 hours.

Full charging time is about 3-4 hours in full sunlight.

The inverter included in the set has a clear display, is equipped with an AVR network voltage regulator, and a 10A rectifier for charging batteries from the network or with a power generator. The converter has pure SINUS and is based on a toroidal transformer, which compensates for different reactive power of receivers (capacitive, inductive and resistive loads can be combined) and responds very flexibly to overloads (starting pumps, compressors, engines, refrigerators).

The converter can also operate in UPS, which ensures continuous and trouble-free operation of blowers, feeders, pumps, etc.

Shipped in 3 packages.

The SinusPRO 1500S 12V emergency power supply is used to power electrical devices requiring 230V alternating voltage from 12V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load.

The most important features:

Automatic mains voltage stabilizer AVR

Main charger for charging the connected battery

Pure SINUS converter based on a toroidal transformer

Possibility to connect solar panels

The built-in toroidal transformer compensates for different reactive power of receivers (capacitive, inductive and resistive loads can be combined), and responds very flexibly to overloads, among others. starting pumps, compressors, engines

The converter can operate in UPS mode, which ensures virtually uninterrupted and trouble-free operation of e.g. blowers, feeders, pumps, central heating installations, automation, etc.

LCD display with the most important parameters

Solid and compact housing

What devices does SinusPRO 1500S 12V power?

RTV devices, e.g. TVs, tuners, hi-fi, DVDs

Household appliances, e.g. refrigerators, microwaves, blenders, sandwich makers

Office devices, e.g. printers, faxes, computers, monitors

Power tools, e.g. drills, grinders, squares

Pumps, compressors

Total power (instantaneous): 1500VA

Constant power: 1050W

Battery voltage: 12V

Input voltage range (photovoltaic panel): 15VDC-75VDC

Max charging current: 40A MPPT

Input voltage range (mains supply):140VAC-275VAC

Output voltage range (mains supply):190VAC-245VAC

Charging current from the mains:20A

Output voltage range (converter):230V+-3%

Operating temperature:0- 40°C

Dimensions: 352x302x156 mm

Weight: 12 kg
