Solar panel solar kit 170w 100ah 1000w

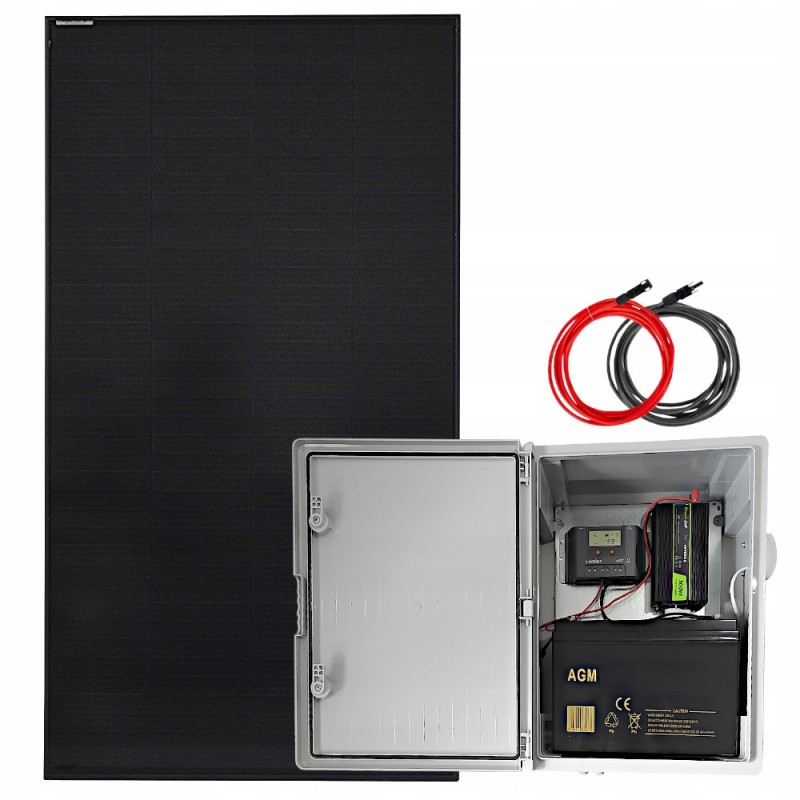

Off Grid solar kit 170W 12V 100Ah Sinus 1000W* Product code: 35984

Off Grid solar kit 170W 12V, equipped with a 170W solar panel, is a comprehensive solution for autonomous power supply. The monocrystalline panel ensures high efficiency and reliability, ideal for use in various conditions.

The key element of the set is the MPPT 15A charge regulator, which effectively manages the energy from the panel, optimizing the charging process of the 100Ah AGM battery.

The 1000W converter enables the conversion of 12V current to 230V, providing electricity of a quality equivalent to home electrical sockets. This solution is ideal for homes, campers or boats where power is required for standard electrical devices. The set also includes a 5-meter set of solar cables with a cross-section of 4 mm² with connectors, making installation easier. The whole thing is enclosed in an electrical box.

The set is recommended for internal installation in places where the temperature does not fall below 0°C and does not exceed 35°C, which ensures optimal conditions for the system components.

The set includes:* 1x Solarfam solar panel 170W monocrystalline

* 1x MPPT 15A charge controller

* 1x Green Cell Sinus voltage converter 12V/230V 1000W

* 1x AGM Volt battery 12V 100Ah

* 1x ABS IP65 electrical box 80x60x26

* 1x Set of 2x5m solar cables 4 mm2 terminated with connectors

Solar panel Solarfam 170W monocrystalline Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8.75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

MPPT 15A charging controller System voltage: 12V/24V

Compatibility with batteries: AGM, Gel

Max. PV power: 195W (12V) / 390W (24V)

Max. charging current: 15A

Max. output current: 10A

Maximum panel voltage: 75V

Charging off: 14.7V (24V 29.4V)

Power on after discharge: 12.0V (24V 24V)

Power disconnection: 10.8V (24V 21.6V)

MPPT efficiency: 99%

USB output: 5V 1A

Operating temperature: -35C ~ +55C

Protection level: IP32

Height: 9.95 cm

Width: 13.10 cm

Depth: 3.40 cm

Weight: 0.27 kg

Green Cell Sinus voltage converter 12V/230V 1000W Usable power (continuous): 1000 W

Instantaneous power (pulse): 2000 W

Input voltage: 12 V DC

Output voltage: 230 V AC

Efficiency: 85%

Output voltage shape: Pure sine wave

Power consumption without load: 1.3 A

Number of power sockets: 1 pc.

USB connector: 1 pc.

Protections: Short-circuit protection (SCP) / Thermal

Fuse value: 30 A

Color: Black

Length: 264 mm

Width: 135 mm

Height: 76 mm

Weight: 1921 g

Additional information: Fan cooling

Included accessories: Connection cables / Spare fuses

AGM Volt 12V 100Ah battery Rated capacity: 100 Ah

Voltage: 12 V

Connector: M6 thread

Battery dimensions (length/width/height): 32.5 x 17 x 21 cm

set of screws for installation

ABS IP65 electrical box 80x60x26 Material: ABS plastic

Color: gray RAL7035

Door: opaque

Operating temperature: -25°C ÷, 60°C

Impact resistance class: IK10

Tightness class : IP65

GWT: 650°C

GWT HF: 960°C

Weight: 13.3 kg

Compliance with the standard: 2006/95/EC

Installations: low voltage

height: 80 cm

width : 60 cm

depth: 26 cm

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
