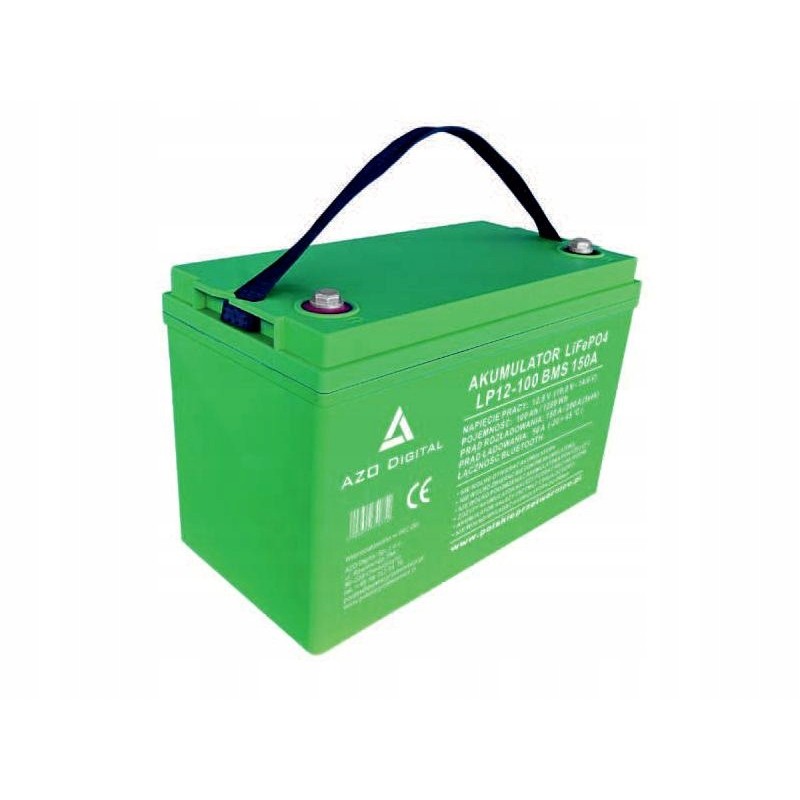

Lifepo4 battery 12v 100ah 150a bluetooth lithium iron phosphate

LIFEPO4 12V 100AH BATTERY 150A 1280WH with Bluetooth and a built -in heating mat that allows the use of LifePo4 12V 100Ah 150A 1280A 1280Wh + BT + built -in heating mat in the negative temperature temperature in a negative temperature temperature. long-term reliability.

They provide excellent operating parameters and high efficiency. They are an ideal solution for installations collecting all types of renewable energy, both solar and wind. They are used in industry and transport. They are also suitable for non-commercial and recreational applications.

Thanks to the built-in heating mat, they can operate at negative temperatures.

Typical applications of LiFePO4 batteries

Electric vehicles: campers, scooters, quads

Electric boats

Garden equipment

Photovoltaic installations

UPS emergency power supply

Printers, cash registers, alarms

The factory-installed Bluetooth module allows you to constantly monitor their operating parameters, and the efficient BMS allows you to power devices with a power of 1.8 kW.

The BMS system ensures monitoring of cell voltage and temperature both during charging and discharging of cells. If critical values are exceeded, the system cuts off the power, thus ensuring the safety of the battery and the working environment.

Charging at negative temperatures is carried out thanks to the built-in heating mat.

The actual charging process begins when the cell temperature reaches a positive value and is between 0 degrees Celsius and 45 degrees Celsius

TECHNICAL PARAMETERS OF THE BATTERY

Cell type: LiFePO4

Nominal voltage: 12.8 VDC

Nominal capacity : 100 Ah

Nominal capacity: 1280 Wh

Operating voltage: 10.8 - 14.6 VDC

Charging voltage: 14.6 VDC

Maximum charging voltage: 14.6 VDC

Recommended discharge voltage: 11, 2 VDC

Critical discharge voltage: 10.8 VDC

Recommended charging current: 25A

Maximum charging current: 100A

Maximum continuous discharge current: 150A

Maximum discharge current: 180A

Internal resistance: <, 25m Ohm

Efficiency: >, 99.5%

Self-discharge (month): <, 3%

Built-in BMS: YES

Bluetooth communication: YES

Lifespan (0.2C, 25 St.C 100% DOD): 4000 cycles

Lifespan (0.2C, 25 St.C 80% DOD): 6500 cycles

Series connection of batteries: Yes, maximum 4 pieces

Heating function: YES

Discharge temperature: -20°C C ÷ 60 St. C

Charging temperature: -20 degrees Celsius C ÷ 45 St. C

Storage temperature: -10 degrees Celsius C ÷ 30 St. C

Dimensions: 330 x 171 x 215 mm

Weight: 10.2 kg

Connector: M8

Housing material: ABS

1. Always use the latest technical documentation available on the manufacturer's or distributor's website.

2. Before parallel connection, please discharge the individual batteries first and only charge them after connection.

3. When connected in series, the capacity of individual batteries should be kept the same.
