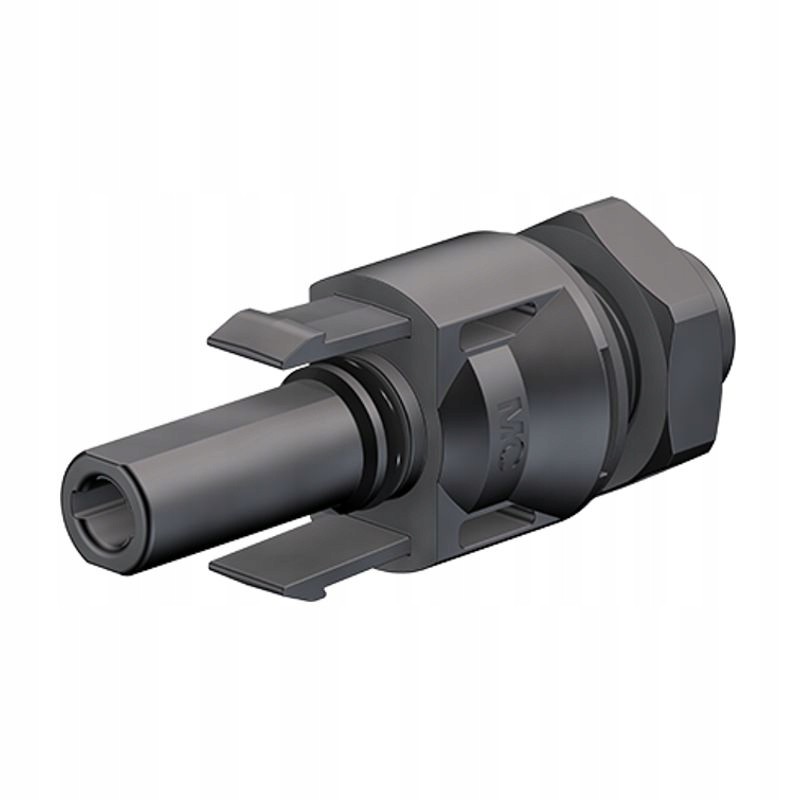

Staubli panel socket mc4 adbp4 s2 6 4 6 mm2

MC4 (+) panel socket ADBP4-S2/6 4 mm2 or 6 mm2 Plug for photovoltaic installations.

Cable cross-section: 4 mm2 or 6 mm2

Total cable diameter: 5.5 to 7.4 mm

Resistance to salts contained in the air

Resistance to ammonia contained in the air

Certificates: UL, TÜV-Rheinland, CSA, CQC

For installation in inverters in photovoltaic installations, installation in a housing.

The socket is sold with the original connector (pin). It is an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Type of contact: Ø 4 mm banana connector, made of tin-plated copper, inside the sockets there are elastic elements improving electrical contact - Multi-lams®

Max system voltage:

1000 V DC / 600 V DC ( UL)

1000 V DC /1500V DC (IEC)

Nominal current: IEC (90°C)

17A - 50 A (depending on cable cross-section)

Nominal current: IEC (85°C)

17A - 45 A (depending on the cable cross-section)

Test voltage:

12 kV (1000 V DC (IEC))

16 kV (1500 V DC (IEC))

Operating temperature:

- 40°C… + 90°C (IEC),

- 40°C… + 75°C (UL)

- 40°C… + 70°C (UL 14 AWG)

Max operating temp.:

105°C (IEC)

Degree of protection:

IP65

IP68 (1 hour/1 meter)

IP2X (disconnection state)

Measurement category/degree of pollution

CAT III / 3

Contact resistance (approx. 25 years) guaranteed: ≤ 0.35mΩ Protection class:

1000 V DC: II

1500 V DC: 0

Type of cable connection:

crimped

Security against disconnection:

snap system

Insulation:

PA (polyamide)

Flammability class:

UL94-VO

Cable gland:

compliant with the EN 50521:2008 standard

Certificates:

TÜV-Rheinland according to the EN5021 standard - R60028286

TÜV-Rheinland according to the 2PfG2330 standard - R60087448

UL according to the UL 6702 standard - E343181

Salt resistance included in the air (according to IEC 60068-2-52)

Resistance to ammonia contained in air: 1500h, 70°C/70% RH, 750ppm

Other auctions include:

original MC4 connectors for mounting on cables and in housings

new series MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

tools for mounting MC4 and MC4 EVO 2 connectors

FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important it is important that their parameters remain stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors allows operation at a voltage of 1500 V and transmitting significantly higher currents (for a 4 mm² cable – 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a flame-retardant substance.
