Flexible solar kit 200W 12V/24V MPPT 20A* Product code: 36383

Flexible solar kit 200W, equipped with two monocrystalline solar panels with a power of 100W each, is an innovative solution for generating energy in places isolated from the electricity grid. It is an excellent choice for users of motorhomes, boats and camping enthusiasts, offering energy independence.

The panels are characterized by a monocrystalline structure, which provides them with greater efficiency compared to polycrystalline panels. The flexibility of the panels allows them to be mounted on various surfaces, which is crucial in mobile applications. The set also includes an MPPT charge controller, which significantly increases the efficiency of the photovoltaic system - by up to 25% compared to standard PWM controllers. This allows for maximum use of solar energy.

The set also includes solar cables with a length of 2x5 meters and a cross-section of 4mm2, which facilitates and speeds up the installation process.

For optimal results, it is recommended to use a battery with a capacity of 100-200Ah. This will allow you to effectively store energy to power 12V devices.

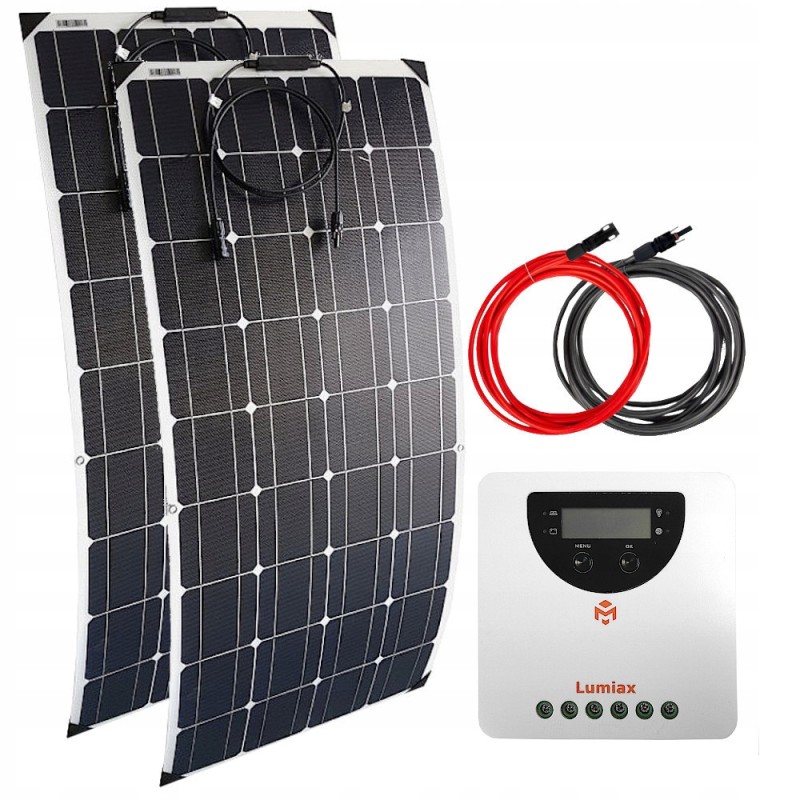

The set includes:* 2x Flexible Panel Maxx 100W

* 1x Lumiax 20A MPPT 12/24V Bluetooth Charge Controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Flexible Panel Maxx 100W - 2 pieces Type: Monocrystalline

Maximum system voltage: 600 V

Max power voltage (Vmp): 18 V

Max current (Imp): 5.55 A

No-load voltage (Voc): 21.6 V

Current short circuit (Isc): 5.93 A

Coating: ETFE

Junction box: IP67

Cable: Approximately 90cm with a diameter of 2.5mm

Connector: Type MC4

Dimensions: 118.5 x 54 x 0.3 cm

Weight: 2 kg

Certificates: CE ISO ROHS FCC

Operating temperature: -40 to +85 °C

Power tolerance: +3 %

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
