Goal zero charging controller 10a panel nomad 50

Weight: 0.408 kg

Dimensions: 15.5 x 9.91 x 2.6 cm

8mm cable length: 0.9 m

Fuses: Yes, 15A replaceable

Optimum operating temperature: -25 - 50°C

IP certificate: IP65

Certificates: IC, FCC, CE-EMC, CE-LVD

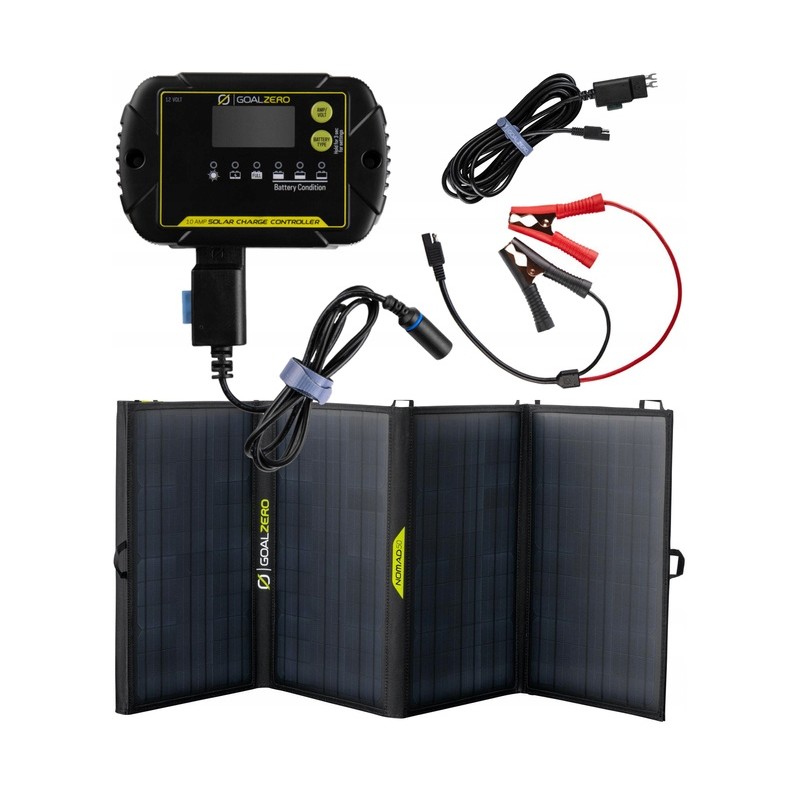

Monitor and regulate solar input for 12V batteries with the 10A charge controller kit and the fully mobile, flexible and foldable high power solar panel (18-22V, 50W)

Designed to seamlessly integrate with GOAL ZERO solar panels, the controller The charging station is equipped with a pre-installed 8 mm solar connector and an easy-to-read LED screen. Manufactured from the highest quality materials and equipped with an IP65 protection rating - the charge controller is resistant to weather conditions and dust, which allows for protection when using outdoors.

Goal Zero was born from one belief: lack of resources should never limit human potential. Goal Zero Yeti is what you need to power anything, anywhere, with plug-and-play and easy-to-use solutions. The Goal Zero Yeti ecosystem is a way to stay powered even in the most demanding situations. Goal Zero is an innovator of portable solar charging systems in the USA. This brand's products collect renewable energy that can be transferred to electronic devices. Each Goal Zero product is designed with full device mobility in mind. The brand's product range includes solar panels, power supplies, complete sets, accessories and add-ons. All this so that you have energy wherever you need it. The goal of Goal Zero is to meet the need for completely renewable energy. Without incurring additional, unnecessary costs. Goal Zero is a company created by people who live life to the fullest and are guided by a common passion for adventure. This is a company that provides the most innovative, portable devices that collect energy from renewable sources.

The Goal Zero Solar Panel is perfect as an energy source or as an emergency power supply:

When walking, attached to a backpack.

For a mobile office.

During trips with friends to fish, to the mountains.

In motorhomes, trucks, tractors, cars.

During hiking, motorcycle and bicycle trips

At camping sites, camps.

In summer houses, Dutch houses.

In boats, yachts, kayaks.

Ports Input/Output: M5

Input: (blue, 8 mm), 14-22.5V to 10A

BatteryBuilt-in charge controller: PWM

Solar panel open circuit voltage: 15-22V

Maximum voltage of solar panels: 25V

Lowest operating voltage of solar panel or battery: 8V (minimum)

Charging characteristics Starting voltage at 25°C: 3-10V

Charging voltage at 25°C: LTO battery: 14.0V, Battery gel: 14.1V, LiFePO4 battery: 14.4V, AGM battery - 14.4V, WET battery: 14.7V, Calcium battery: 14.9V

Float voltage at 25 ° C: Gel batteries, AGM, WET, Calsium - 13.6V, LTO and LiFePO4 batteries - 13.4V

Battery temperature compensation coefficient: -24mV / ° C

SPADE to SAE cableGeneral: Length.: 4.5 m

SAE polarity: Silver Pin positive, Female plastic negative

Certificates:: IC, FCC, CE-EMC, CE-LVD

Ports: Input:: Spade

Output:: SAE

General.SAE Adapter for Alligator Clips (SAE to Alligator Clip)Length: 60.96 cm

Certifications.: IC, FCC, CE-EMC, CE-LVD

Ports.Input.: SAE

Output.: Alligator clips (SAE to Alligator Clip)

General,Goal Zero Nomad 50Weight:: 3.1 kg

Dimensions (before unfolding): 43.2 x 28.6 x 6.4 cm

Dimensions (after unfolding): 43.2 x 134.6 x 3.8 cm

Rated power: 50W

Open circuit voltage: 18-20V

Cell type: Monocrystalline

Optimum temperature operation:: 0-40 degrees C

Certificates: CE, FCC, ROHS

Ports, USB: 5V, up to 2.4A (12W max)

8mm (blue): 14-22V, up to 3.3A ( 50W max)
