Hybrid off grid solar kit esb 3kw 24 mppt

Home off-grid power plant.

The set consists of 6 monocrystalline PV 10 busbar Half Cell panels with a power of 410W each, the ESB-3kW-24 hybrid inverter, and complete cabling with a length of 25 meters terminated with MC4 connectors.

Off-grid installation does not require notification and acceptance of the energy company.

ESB series solar inverters are intended for the construction of independent 230V off-grid power supply systems based on energy obtained from PV panels, the power grid and the battery. Thanks to their modular design and flexible configuration, ESB inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, they can also work in buffer systems powered only by PV panels and/or supported by grid energy.

TYPE: Photovoltaic set

Maximum power: 3000 W

PV system power: 2500 W

Output voltage waveform: PURE SINUS

Cooling: Active - fan

Output stable sinusoidal supply voltage of 230V (220V, 240V) is perfect for powering any receivers electricity, and the built-in starting overload support system allows you to power loads with high starting current, such as compressors in refrigerators and generators.

The inverter configuration and control is available via an intuitive control panel, which can be installed in a convenient place at a distance of up to 20 m from inverter.

What is also new in the ESB series inverters is the ability to control the inverter using a smartphone and a mobile application replacing the control panel.

The most important feature of the inverters is the ability to build hybrid power systems without an external battery, which has a significant impact on the cost and reliability of the system and the profitability of the investment.

The set includes:

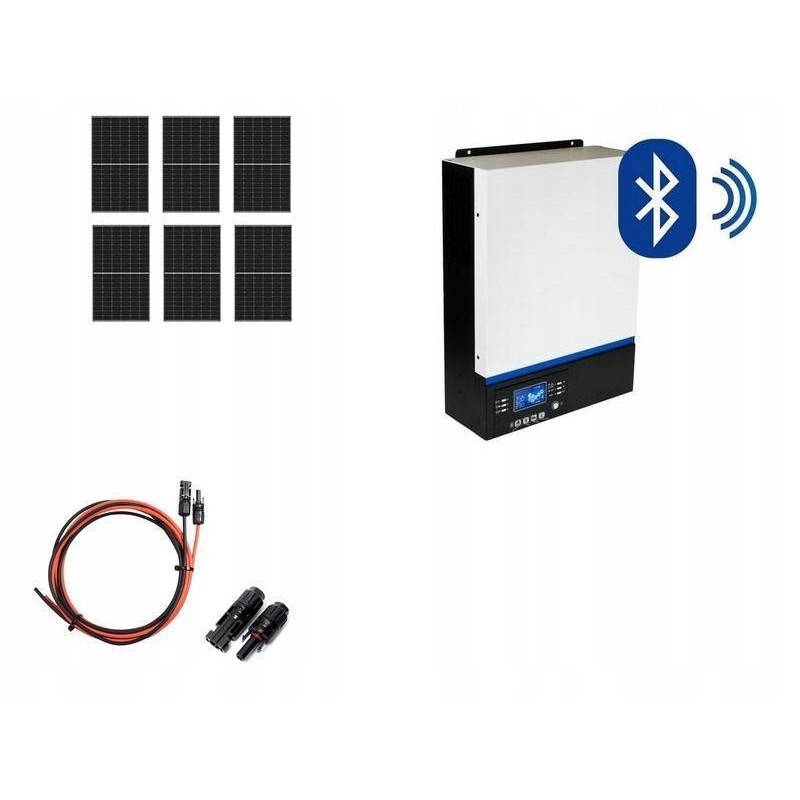

6 monocrystalline PV panels 410W Half Cell 10 busbar

Hybrid solar inverter ESB-3kW-24

set of 25-meter cables with connectors

installation instructions

Product technical data SOLAR INVERTER

ESB-3kW-24

ESB -6kW-24

ESB-10kW-48

INPUT PARAMETERS

Nominal input voltage

230 VAC

Input voltage range

90-280 VAC

Operating voltage frequency

50 Hz/60 Hz (automatic detection)

OUTPUT PARAMETERS

Output voltage

230 VAC

Peak power

3000 VA

6000 VA

10000 VA

Continuous power

1500 W

3000 W

5000 W

Efficiency

93%

Switching time

15 ms

Output voltage waveform

Pure Sine Wave

BATTERY

Battery voltage

24 VDC

48 VDC

Battery charging voltage

27 VDC

54 VDC

Battery overcharging protection

33 VDC

63 VDC

CHARGING

Charging type

MPPT

Maximum power of PV panels

2000W

4000W

5000W

MPPT operating voltage range

120-380 VDC

120-450 VDC

Maximum circuit voltage of PV panels

400 VDC

500 VDC

Maximum charging current from PV panels

60 A

80 A

Maximum charging current from the network

40 A

60 A

Maximum charging current

60 A

80 A

DIMENSIONS WEIGHT

Dimensions D x W x Height [mm]

100 x 280 x 390

115 x 300 x 400

Weight [kg]

8.5

9

10

OPERATING CONDITIONS

Operating temperature

-10°C ~ +50°C

Humidity

5% -95% relative humidity (non-condensing)

Protection level (IP)

IP21

Parameters / Product name: KD-M410H-108 410W photovoltaic panel

Nominal power Pmax (W): 410

Power tolerance Pmax Maximum: 0 ~ +5

Maximum voltage Vmp [V]: 31.22

Current in nominal power lmp [A]: 13.06

Open circuit voltage VOC [V]: 37.34

Short-circuit protection [A]: 25

Short-circuit current [A ]: 13.7

Module efficiency [%]: 20.97

NOTC: 46°C - 50°C

Temperature coefficient Pmax: -0.36%/C

Temperature coefficient Voc: -0.28%/C

Temperature coefficient Isc : +0.05%/C

Maximum operating voltage: 1500VDC

Operating temperature: -40°C +85°C

Maximum reverse current [A]: 25

Max. load (snow/wind): 5400 Pa / 2400 Pa

Cells: Mono 182×182 mm

Number of cells: 108 (54×2)

Module dimensions [mm]: 1723×1133×35

Weight [kg ]: 21.5

Glass: 3.2mm glass, tempered glass

Junction box: IP68

Cables: 4mm2, (+)30cm, (-)30cm

Connectors: MC4-compatible

EAN: 5903699340448
