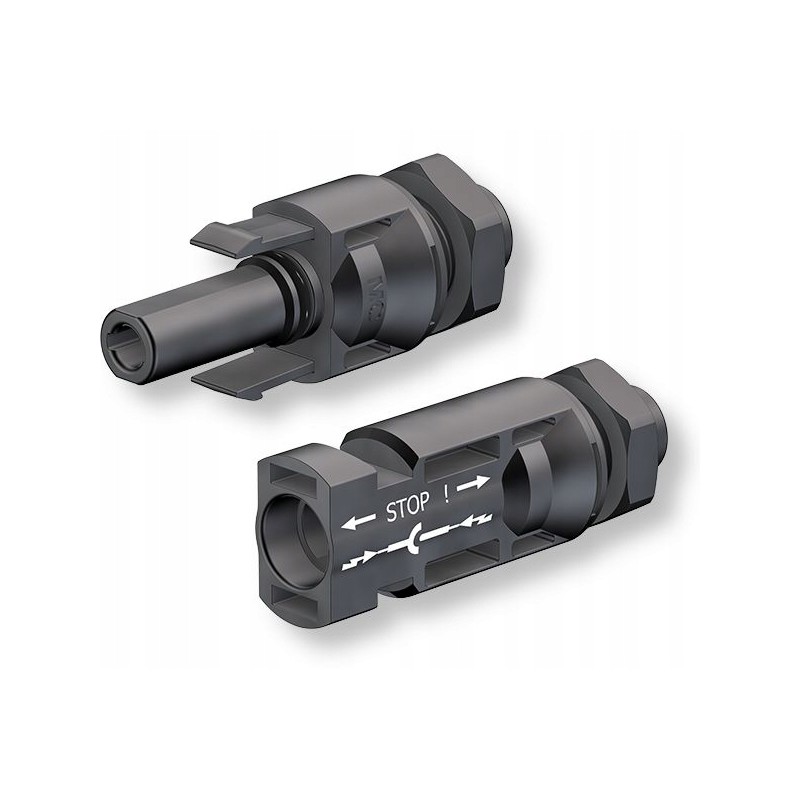

Staubli set of mc4 panel connectors 4 6 mm2

Set of MC4 photovoltaic connectors for installation in housings for a cable with a cross-section of 4 mm2 or 6 mm2. The set of connectors for mounting in housings consists of a PV-ADSP4-S2-UR/6 plug and a PV-ADBP4-S2-UR/6 socket, which are intended for for cables with a cross-section of 4 mm2 or 6 mm2. The connectors are waterproof, resistant to high temperatures and UV rays. Very good quality plastic housing with a latching system ensures electrical and fire safety. The design of the electrical contacts guarantees long-term stable and failure-free operation with minimal losses of energy produced.

For installation in inverters in photovoltaic installations, installation in a housing.

The set includes a socket with a plug and original dedicated connectors (pins). This is an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. Type of contact: Ø 4 mm banana connector, made of tin-plated copper, inside the sockets there are elastic elements improving electrical contact - Multi-lams®

Max system voltage:

1000 V DC / 600 V DC ( UL)

1000 V DC /1500V DC (IEC)

Nominal current: IEC (90°C)

17A - 50 A (depending on cable cross-section)

Nominal current: IEC (85°C)

17A - 45 A (depending on the cable cross-section)

Test voltage:

12 kV (1000 V DC (IEC))

16 kV (1500 V DC (IEC))

Operating temperature:

- 40°C… + 90°C (IEC),

- 40°C… + 75°C (UL)

- 40°C… + 70°C (UL 14 AWG)

Max operating temp.:

105°C (IEC)

Degree of protection:

IP65

IP68 (1 hour/1 meter)

IP2X (disconnection state)

Measuring category/degree of pollution

CAT III / 3

Contact resistance (approx. 25 years) guaranteed: ≤ 0.35mΩ Protection class :

1000V DC: II

1500V DC: 0

Cable connection type:

crimped

Disconnection protection:

latch system

Insulation:

PA (polyamide)

Flammability class:

UL94-VO

Cable gland:

compliant with the EN 50521:2008

standard Certificates:

TÜV-Rheinland according to EN5021 standard - R60028286

TÜV-Rheinland according to standard 2PfG2330 - R60087448

UL according to UL 6702 - E343181

Resistance to salts contained in the air (according to IEC 60068-2-52)

Resistance to ammonia in the air: 1500h, 70°C/70% RH, 750ppm

Other auctions include:

original MC4 connectors for mounting on cables and in housings

a new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting chains of panels

tools for installing MC4 and MC4 EVO 2 connectors

cables solar FLEX SOL EVO TX (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors allows operation at a voltage of 1500 V and transmitting significantly higher currents (for a 4 mm² cable – 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a substance that limits smoking. The product is new, original, unused, factory packed. HOW TO PLACE AN ORDER
