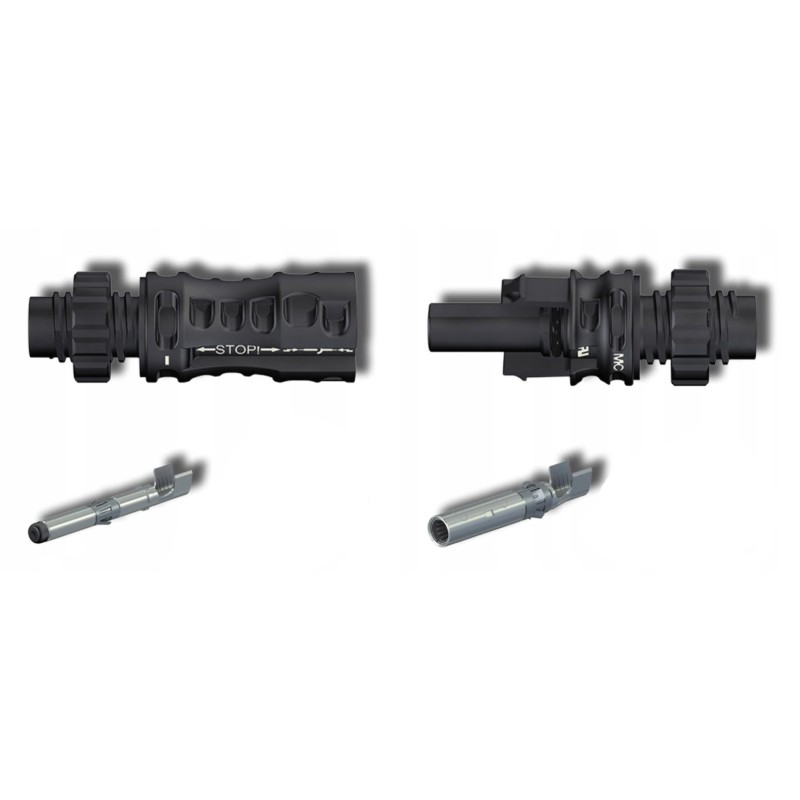

Staubli set of evo2 panel connectors 4 6 mm2

Set of MC4 EVO2 photovoltaic connectors for installation in housings for a cable with a cross-section of 4 mm2 or 6 mm2. Cable cross-section: 4 mm2 or 6 mm2

Total cable diameter: from 5.5 to 7.4 mm

Resistance to salts contained in the air

Resistance to ammonia contained in the air

Certificates: UL, TÜV-Rheinland, CSA, CQC

For installation in inverters in photovoltaic installations, installation in a housing.

The set includes a socket with a plug and original dedicated connectors (pins). an original product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. NOTE Due to any doubts as to whether this is an original product, I will now clarify. The inscriptions on the product are white only in the photo to show that they are there at all. The fakes have no inscriptions at all. This is how the manufacturer draws attention to it. Stäubli (Multi-Contact) uses white lettering on regular MC4s because it has a smooth surface, but on MC4 EVO2 they are only embossed because they are in a hard-to-reach place. Please do not be influenced by one opinion of someone who has no idea about it and is an amateur. I have been selling Stäubli (Multi-Contact) products for several years and no one has yet proven to me that they are fakes. Please feel free to purchase. Technical parameters of MC4 EVO 2 panel connectors

Type of contact:

Banana connector Ø 4 mm, made of tin-plated copper, elastic Multilam® elements inside the sockets improving electrical contact.

Max system voltage:

1500 V DC ( TÜV)

1500 V DC (UL)

TÜV nominal current:

39 A – 2.5 mm²

42 A – 4.0 mm²

47 A – 6.0 mm²

Test voltage:

16 kV 1500V DC

Operating temperature:

-40°C … +85°C (TÜV)

-40°C … +90°C (UL)

Max operating temperature:

115°C

Protection level:

IP65/IP68 (1 h/1 m)

IP2X (disconnection state)

Overvoltage category/Pollution degree:

CAT III/3

Contact resistance ≤ 0.2 mΩ (guaranteed after approx. 25 years ≤ 0, 35 mΩ)

Safety class:

Class II

Type of cable connection/Disconnection protection (UL):

Clinching/click system

Insulation:

PA (polyamide)

Flammability class:

UL94-VO

Certificates :

TÜV-Rheinland according to the IEC 62852:2014 standard - R60127171

UL according to the UL 6703 standard - E343181

The remaining auctions include:

original MC4 connectors for mounting on cables and in housings

a new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

tools for mounting MC4 and MC4 EVO 2 connectors

FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that they parameters were stable during 25 years of installation operation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors allows operation at a voltage of 1500 V and transmitting significantly higher currents (for a 4 mm² cable – 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a substance that limits smoking. The product is new, original, unused, factory packed. HOW TO PLACE AN ORDER
