Solar panel solar kit 200w MPPT controller

Solar kit 200W 12V MPPT* Product code: 36108

The solar kit with a power of 200W, using a monocrystalline panel, is an effective way to obtain solar energy. Monocrystalline cells are known for higher efficiency than their polycrystalline counterparts, making them an ideal choice in conditions of variable sunlight intensity.

The set includes an MPPT charge regulator, which increases the efficiency of converting solar energy into electricity by up to 25% compared to standard regulators PWM. The included set of solar cables with a cross-section of 4 mm2, equipped with connectors, facilitates installation and integration of the system.

Additional elements of the set, such as corner brackets, brackets and roof adapters, ensure stability and safety of the installation, as well as flexibility in selecting the installation location.

Recommended battery for this set is a model with a capacity from 80 to 120Ah.

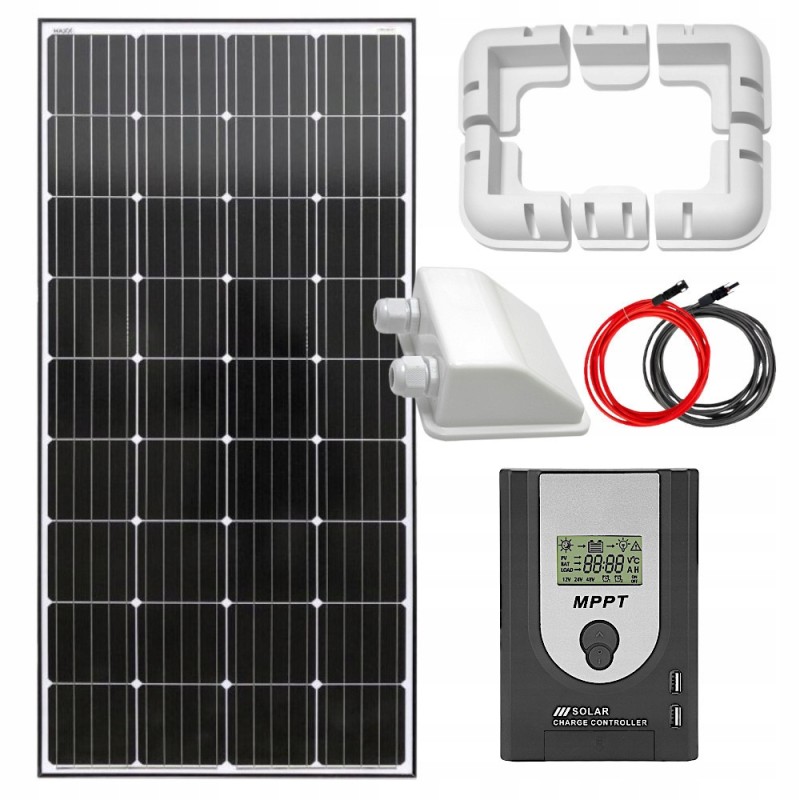

The set includes:* 1x Maxx 200W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charging controller

* 1x Corner holders for solar panels

* 1x Battery support holder solar

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 200W monocrystalline solar panel Cells: Monocrystalline

Peak power: 200W

Power tolerance: +3%

Max power voltage [Vmp] : 20.7 V

Max current [Imp]: 9.66 A

No-load voltage [Voc]: 24.84 V

Short circuit current [Isc]: 10.63 A

Operating temperature range [c°] : -40 - +85

Length: 148 cm

Width: 67 cm

Depth: 3.5 cm

Weight: 10.9 kg

Terminal: MC4

Frame: Anodized aluminum

Glass: Glass hardened 3.2mm

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
