Solar hybrid kit 2kw 230v 3000w

Off Grid 2KW solar kit 230V 2400W* Product code: 36212

The Off Grid 2KW solar kit, consisting of six solar panels, is an advanced solution for homes that want to reduce their dependence on the power grid. These panels, made of monocrystalline silicon, are characterized by high efficiency and durability, providing a reliable source of solar energy. The key component of the set is a 2400W hybrid inverter, operating with a voltage of 24V and an output of 230V. This modern inverter enables the effective conversion of solar energy into alternating current, which allows you to power home electrical appliances. Additionally, the set is equipped with two gel batteries with a capacity of 100Ah and a voltage of 12V each. They allow for the storage of the energy produced. When the batteries run low, the system automatically switches to mains power.

This solar kit is not only an economical solution that allows you to significantly reduce your electricity bills, but also provides an ecological alternative, reducing your carbon footprint. Its use is ideal for homes that strive to increase energy efficiency and independence from traditional energy sources.

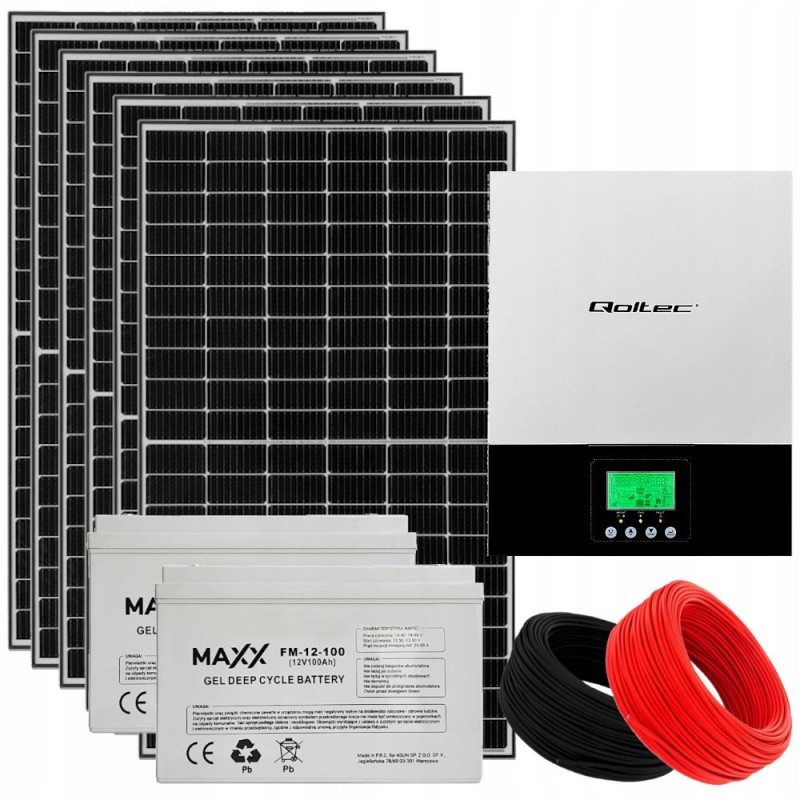

The set includes:* 6x JA Solar 385W monocrystalline Silver solar panel

* 1x Qoltec Off Grid Hybrid Inverter 24V 230V 2400W

* 2x Maxx gel battery 100Ah 12V

* 1x Set of 2x15m solar cables 4mm2

* 2x Cable for connecting batteries M8 35mm2 50cm

* 1x Cable for connecting batteries M8 35mm2 30cm

* 1x MC4 serial connectors

Solar panel JA Solar 385W monocrystalline Silver - 6 pieces Cells: Monokry steel

Maximum power Pmax: 385W

No-load voltage Voc: 41.78 V

Short-circuit current Isc: 11.53 A

Maximum power voltage Vmp: 35.04 V

Maximum power intensity Imp: 10.99 A

Power tolerance: 0-+5 %

Efficiency: 20.7 %

Temperature current indicator Isc: +0.044 %/◦C

Temperature voltage indicator Voc: -0.272 %/◦C

Temperature power indicator Pmax: -0.350 %/◦C

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Dimensions: 176.9 x 105.2 x 3.5 cm

Weight: 20.5 kg

Qoltec Off Grid Hybrid Inverter 24V 230V 2400W Type: Off-grid

Charging type: MPPT

Rated power: 3000VA/2400W

Peak power: 6000W

Output voltage waveform: Pure sine wave

Maximum power of the photovoltaic panel: 3000W

MPPT operating voltage range: 120 ~ 450VDC

Maximum charging current: 80 A

Interface: RS232

Number of phases: Single-phase

Operating frequency: 50Hz / 60Hz (automatic detection)

Nominal input voltage: 230 VAC

Cooling system: 2 x fans

Switching time: 10 ms (PC) 20 ms (Home appliances)

Efficiency: 95%

Protections: Short-circuit Against overheating Against overload Against overcharging

Battery charging voltage: 27 VDC

Variable charging voltage: 27VDC

Battery overcharge protection: 31VDC

Battery voltage: 24VDC

Maximum battery charging current from PV: 80A

Maximum open circuit voltage of the photovoltaic panel: 450VDC

Display: LCD

Noise : 45 dB

Operating temperature: -10˚C ~ +50˚C

Additional information: Possibility to connect an additional Wi-Fi module

Housing color: White, black

Dimensions (D/D x W x H): 348 x 270 x 95 mm

Weight: 5.1 kg

Maxx 100Ah 12V gel battery - 2 pieces Model: 12-FM-100

Capacity: 100Ah

Nominal voltage: 12V

Manufacturing technology: Gel

Full tightness: Yes

Connector: M6

Width: 33 cm

Depth: 17.1 cm

Total height: 22 cm

Weight: 28.4 kg

Set of 2x15m solar cables 4mm2 Length of red wire: 15 meters

Length of black wire: 15 meters

Cross section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Cable for connecting batteries M8 35mm2 50cm - 2 pieces35mm2 = cable diameter approx. 9.5mm

Cable for connecting batteries M8 35mm2 30cm 35mm2 = cable diameter approx. 9.5mm

MC4 serial connectors Contact material: Tinned copper

Suitable for cables: 4.0 mm²~6.0mm² 12AWG-10AWG

Resistance: less than 0.3 m

Waterproof: IP 67

Pin dimensions: Ø,4mm

Flame class: UL94-V0

Rated voltage: TUV 1000V DC / UL 600V DC

Rated current: 20A-30A

Protection class: Class II

Pollution degree: 2
