Solar kit 3000w solar panel 230v converter

Hybrid solar set with a continuous power of 3000W 6000W. Off-grid installation does not require notification and approval of the power plant. The proposed set allows the use of 230V power supply with a total power of 3000W CONTINUOUS 6000W. Ready-made photovoltaic set based on the VOLT POLSKA SINUS PRO ULTRA 6000 solar converter with a built-in regulator. MPPT 80A charging with 2X180W SOLAR PANELS, 2 X 100Ah batteries, 24v battery balancer, cables and connection terminals, create a unique off-grid set with a power of up to 6000W. Thanks to the use of a 24V/230V sine voltage converter AND 200Ah BATTERIES, can power devices such as:

TVs, refrigerators, coolers, power tools, water pumps, compressors, transformer power supplies, power supplies for laptops, telephones, central heating stoves, central heating pumps, office equipment - printers, scanners, computers

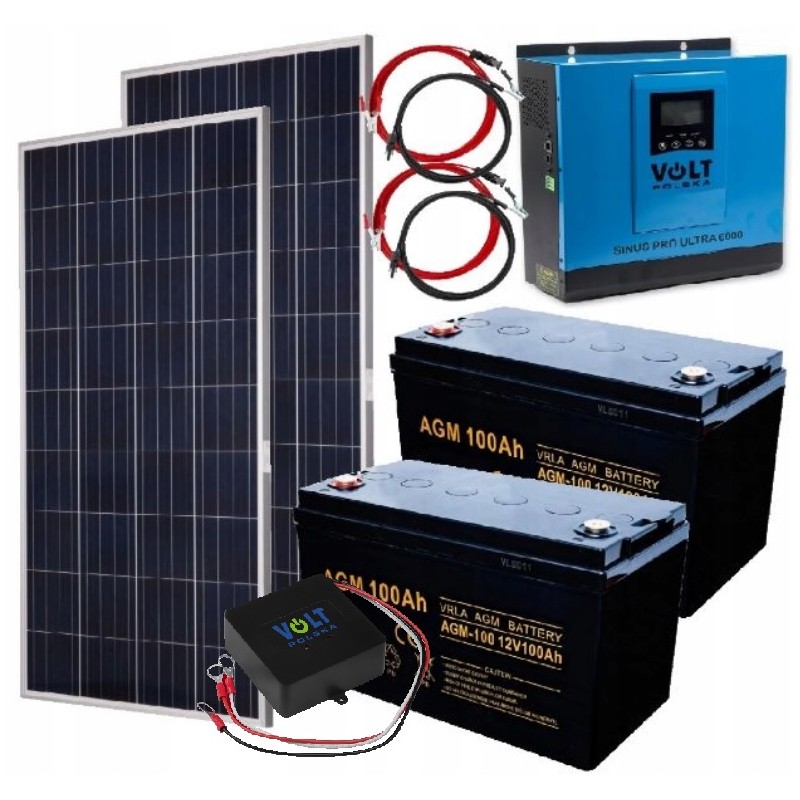

WE RECOMMEND THE SET IT WAS CONNECTED BY A PROFESSIONAL OR A PERSON KNOWING THE BASICS OF ELECTRONICS. The set includes: 2 X Solar Panel 180W VOLT POLSKA

SINUS PRO ULTRA 6000 SOLAR INVERTER 24/230V

2 X AGM BATTERY 100Ah MAINTENANCE-FREE

1 x 24v battery balancer

Cables for connection length 4 m

1 x BATTERY CONNECTION CABLE 25CM

THE SET CAN BE EXPANDED WITH ADDITIONAL PANELS AND BATTERIES THE SET HAS 2 180W PANELS WHICH CHARGES 100AH BATTERIES THAT POWER THE SOLRANE INVERTER WHICH GIVES A CONSTANT POWER OF 3000W TO THE DEVICES ENIA CAN CONNECT DEVICES WITH CONSTANT POWER 3000W Off-Grid VOLT POLSKA 6kW solar inverter -24 3000W / 6000WTechnical data

Total power (instantaneous):6000VA

Constant power:3000W

Battery voltage:24VDC

Input voltage range (photovoltaic panel):30VDC-130VDC

Maximum charging current from the panel system:60A

Input voltage range ( mains supply):170VAC-280VAC

Output voltage range (mains supply):220VAC-240VAC

Maximum charging current from the mains:20/30A

Maximum charging current:80A

Output voltage range (converter):230V+-3%

Operating temperature :0-40°C

Dimensions: 290 x 342 x 118 mm

Weight: 7.3 kg

BATTERY VOLTAGE: 12 V BATTERY CAPACITY: 100 Ah Maintenance-free batteries are made in AGM technology and intended for use in emergency power systems and other applications in which the battery operates cyclically or in a buffer mode .

They are characterized by high resistance to deep discharges

They absorb gases very well.

The designed lifespan is 8-10 years at 20-25°C.

Why it is worth using the battery:

Does not require refilling or replacing the electrolyte

Work in any position

High efficiency and performance

Long service life of 6-10 years

High resistance to mechanical damage and high temperatures

Safe to use (no electrolyte leakage)

POLI polycrystalline panel with a bypass diode optimizes current flow in the case of shade, it has a cell conversion efficiency of over 18%. The panel is covered with matte PET foil and laminated EVA foil. Waterproof, ideal for installation in systems.

Quality guarantee:

Electrical insulation test

Resistance to external conditions test

Hot-spot test

UV resistance test

Test of resistance to temperature changes, hail impacts

Moisture resistance test

Durability Test

Mechanical load resistance test

Technical data

Maximum power Pmax (W): 180 W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.3

Voltage at maximum power Vmp (V): 18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A): 10.59

Module efficiency (%): 18.2

Solar cell efficiency (%) : 19.4

Nominal fuse current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 1480x670x35 mm

Panel frame size: 30 mm

Weight: 9.8 kg

Balancer PROTECT 24 for battery set 24VDCBALANSER BATTER PROTECT 24V is used for 12V batteries connected in series to maintain equal battery voltage. Can be used for AGM and gel batteries. When two or more batteries work in series, the voltage of individual batteries may be different. One voltage will be high, the other low.

BACTERIAL BALANCER PROTECT will balance the battery voltage when it detects that the difference between the batteries is 20 mV. It will then allow current to flow from the higher voltage to the lower voltage until equilibrium is reached. This improves battery performance and extends battery life.
