Solar kit 200W 12V MPPT Holder* Product code: 36379

The solar kit with a power of 200W, equipped with a monocrystalline solar panel, is a technologically advanced solution for obtaining solar energy. This set is ideal for users of motorhomes, camping sites and boats, providing a reliable source of energy.

The key component of the set is the MPPT 20A charge regulator. Thanks to MPPT technology, the system maximizes the efficiency of solar energy conversion, offering up to 25% greater efficiency compared to classic PWM controllers. This regulator guarantees optimal use of the panel's power, ensuring effective battery charging. The set also includes a set of solar cables with connectors, facilitating installation and ensuring a stable connection. Additionally, the set includes corner brackets, brackets and a roof adapter, which allows for easy and safe installation.

The set recommends using a battery with a capacity of 80 to 120Ah, which provides adequate capacity to store the energy produced by the panels.

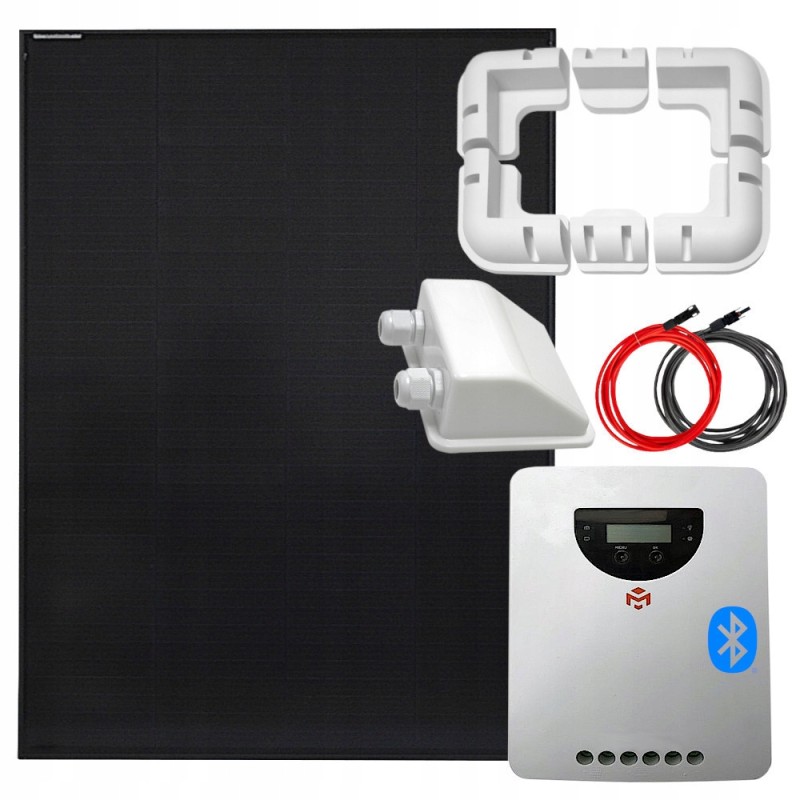

The set includes:* 1x Solarfam 200W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charging controller

* 1x Corner holders for solar panels

* 1x Solar panel bracket holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables terminated connectors

Solarfam 200W monocrystalline solar panel Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp]: 18.15 V

Max current [Imp] : 11.02 A

No-load voltage [Voc]: 21.57 V

Short circuit current [Isc]: 11.69 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11.2 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: Auto Sensing 12V/24V

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
