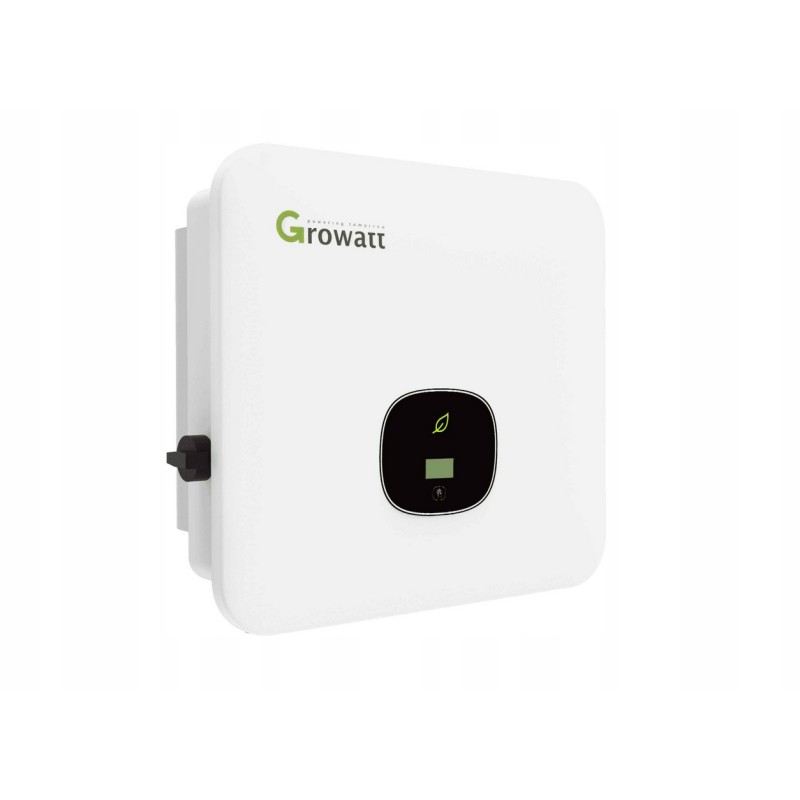

3-phase 8kW 2 MPPT hybrid inverter Growatt MOD 8000 TL3-XH (BACK UP) Three-phase hybrid photovoltaic inverters belonging to the new generation of inverters (X-Series). The letter H in the model means it is a hybrid.

The Growatt MOD 10KTL3-XH hybrid inverter works with the Growatt ARK XH energy storage system, i.e. a high-voltage battery system with a BDC controller (Bidirectional DC/DC Box). To start hybrid operation, the inverter requires a minimum of three battery modules, but it will support as many as 10 battery modules, i.e. the energy storage capacity can range from 7.68 kWh to 25.6 kWh. In this configuration, the inverter increases self-consumption without having an emergency power option.

However, emergency power supply is possible if we use batteries from the APX HV series, where one battery module has a capacity of 5 kWh and cooperates with the same charge/discharge controller - BDC (Bidirectional DC/DC Box). The APX HV series allows you to connect from 1 to 6 battery modules, which gives us a storage capacity of 5 to 30 kWh. An essential device for emergency power supply will also be Growatt SYN-50-XH-30 (Backup Box), i.e. automation that allows us to disconnect our electrical installation from the network and enable full use of batteries.

A huge advantage of the presented equipment is the AFCI function, i.e. detection and immediate extinguishing of electric arcs that may occur on improperly prepared connectors or when poor-quality connection materials wear out. An electric arc is an extremely dangerous phenomenon because it can cause a fire in the installation and, consequently, a threat to our house or other building.

Works with devices for monitoring the operation of photovoltaic installations: WiFi-X / LAN-X / ShineLink-X / GPRS-X.

Input data (direct current - DC) Maximum power of photovoltaic panels - 16,000W

Maximum DC voltage - 1,100V

Starting voltage - 160V

Voltage range - 140V-1000V

Nominal voltage - 600V

Maximum current per tracker - 16A

Maximum short-circuit current per tracker - 20A

Number of MPPTs - 2

Number of strings per MPPT - 1

Input data (DC battery) Compatible battery - APX HV (backup power available) 5 kWh - 30 kWh / ARK XH (self-consumption only, mains required) 7.68 kWh - 25.6 kWh

Operating voltage range - 600 V - 950 V

Maximum operating current - 18.5 A

Maximum charging power - 10,000 W

Maximum discharge power - 8,800 W

Output data (alternating current - AC) Output power - 8,000W

Maximum output power - 8,800VA

Maximum current - 13.3A

Nominal voltage of alternating current, operating range - 230V/400V, 320-480V

Current frequency alternating, operating range - 50Hz60Hz ± 5Hz

Adjustable power factor offset - 0.8 leading...0.8 inductive

THDI - <.3%

AC connection - 3 Phase / L+N+PE

BackUp output data (only with APX HV batteries) Maximum apparent power - 8,000 VA

AC nominal voltage - 230 / 400 V

AC mains frequency - 50 / 60 Hz

Efficiency Maximum efficiency - 98.6%

Weighted European efficiency - 98.1%

MPPT efficiency - 99.9%

Protections Reverse polarity protection - Yes

DC disconnector - Yes

DC overvoltage protection - Class II

AC overvoltage protection - Class II

AC short circuit protection - Yes

Insulation resistance monitoring - Yes

Ground fault monitoring - Yes

Network parameter monitoring - Yes

String fault monitoring - Yes

Residual current monitoring - Yes

Islanding protection - Yes

AFCI protection - Yes

General data Dimensions (Width / Height / Depth) in mm - 425/387/178

Weight - 14.0KG

Operating temperature range - -25°C ... +60°C

Height without negative effect on operation - 4000m

Power consumed at night - <.5.5 W

Topology - Transformerless

Cooling - Free convection

IP protection level - IP66

Relative humidity - 0~100%

General features DC connector - H4

Interfaces: RS485 / USB / WiFi / GPRS / RF / LAN - Yes / Yes / Optional / Optional / Optional / Optional

Display - OLED +LED
