Solar panel solar kit 180w regulator 20a

Solar kit 180W 12V MPPT Holders* Product code: 36377

The solar kit with a power of 180W is an innovative photovoltaic solution designed to power electrical devices in places where access to the electrical network is limited or impossible, such as campers, boats or camping areas. The set includes an efficient 180W monocrystalline panel, which is characterized by better efficiency compared to polycrystalline panels. The key element of the set is an advanced MPPT 20A charge controller with Bluetooth function, which maximizes the use of solar energy. MPPT technology increases charging efficiency by approximately 25% compared to standard PWM controllers, which translates into a greater amount of energy available to users. The set also includes two 5-meter solar cables with a cross-section of 4 mm2, equipped with connectors, which facilitates installation. Additionally, the set includes practical corner brackets and brackets that enable safe and stable installation of the panels, as well as a roof adapter for aesthetic and functional connection of the installation with the roof of the vehicle or building.

The suggested battery for operation in the set is a battery with a capacity of 80-120Ah .

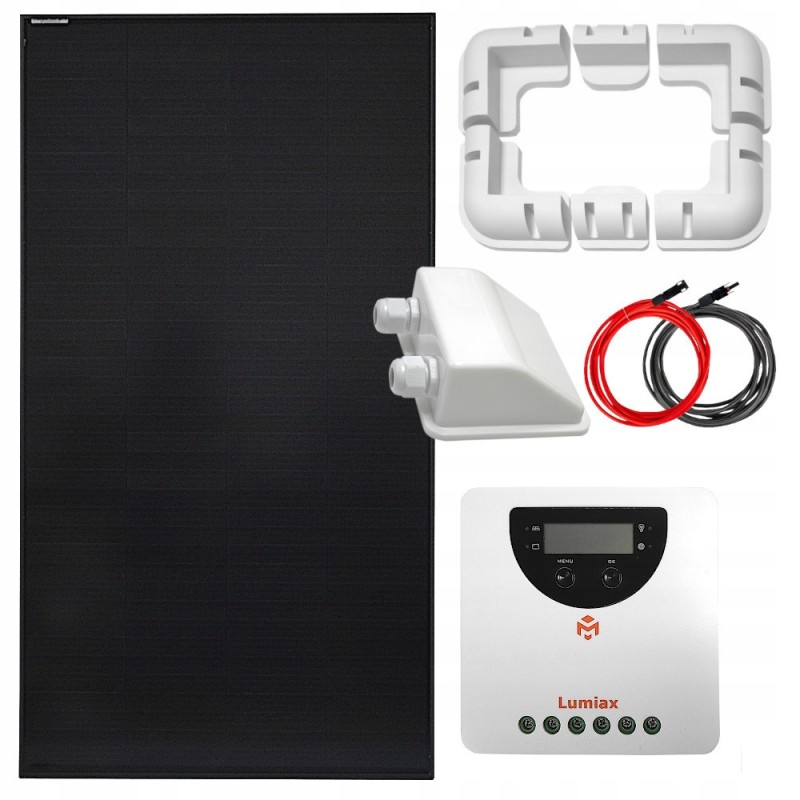

The set includes:* 1x Solarfam 180W monocrystalline solar panel

* 1x Lumiax 20A MPPT 12/24V Bluetooth charge controller

* 1x Corner holders for solar panels

* 1x Solar panel bracket holder

* 1x Roof adapter for solar cables

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 180W monocrystalline solar panel Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22%

Max power voltage [Vmp]: 21.55 V

Max current [Imp]: 8.36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: -40°C to +85 °C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

Lumiax 20A MPPT 12/24V Bluetooth Charge Controller Model: MC2010BT

System Voltage [V]: 12V/24V Auto Sensing

Max. charging current [A]: 20A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6V at 25℃(default: 14.5/29V)

Volt. Equalization: 14~15.0/28~30V at 25℃ (default: 14.8/29.6V at 25°C (Liquid, AGM)

Float Voltage: 13~14.5/26~39V at 25℃ (default: 13.7/27.4) V)

Receiver disconnection at low voltage: 10.8~11.8V/21.6~23.6V（default: 11.2/22.4V)

Volt. reconnect: 11.4~12.8V/22.8~25.6V（default: 12.0/24.0V)

Overcharge protection: 15.8/31.3V

Max. battery connector voltage: 35V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~32.0V (lithium, default : 14.4V)

Charging recovery voltage: 9.2~31.8V(lithium, default: 14.0V)

Volt. low voltage disconnection: 9.0~30.0V(lithium, default: 10.6V)

Volt. low voltage connections: 9.6~31.0V(lithium, default: 12.0V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 260/520W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 20A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >, 99.9%

Max. charging conversion: 98.0%

Dimensions: 13.6 x 13.6 x 6.7 cm

Weight: 0.83 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber-BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max. altitude: 4000m

Corner holders for solar panels Number of elements: 4 elements

Material: ABS, UV resistant

Color: White

Dimensions: 15 x 15 x 3.5 cm

Weight: 1.92 kg

Solar panel support holder Dimension: 8 x 7.5 x 4 cm

Cutout for solar panel: 25 x 30 mm

Color: White

Material: ABS

Roof adapter for solar cables Material: ABS

UV resistance: YES

Color: White

Number of pieces in the set: 1

Height: 4.50 cm

Width: 9.30 cm

Length: 11, 30 cm

Weight: 0.18 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
