Victron solar panel kit 200w MPPT photovoltaic Lublin

The 200W Maxx solar panel is made of high-quality monocrystalline silicon cells. It is mounted in a light, black aluminum frame, which gives a very pleasant visual effect. The frame has special mounting holes that facilitate the installation of the panel on a caravan, camper or bus. Specially hardened glass protects the photovoltaic module against any damage and ensures high absorption of solar radiation, which clearly translates into increased efficiency of the solar battery.

Monocrystalline panels are made of silicon, which has an ordered structure, which makes it more efficient and effective. This means that the same energy can be produced in a smaller area. Thanks to this, monocrystalline modules have slightly higher efficiency than polycrystalline panels. For example, polycrystalline panels have an efficiency of around 16%, and monocrystalline panels are around 18%. Due to these properties, they are also slightly more expensive than polycrystalline panels.

The cells of monocrystalline panels range in color from dark blue to black. The production of a monocrystalline cell takes longer, requires higher temperatures, but thanks to this we gain greater efficiency of the cell.

Technical data - Monocrystalline panel 200W:

Model: 200W Maxx

Cells: Monocrystalline

Peak power [W]: 200

Max power voltage : Vmp [V]: 20.5

Max current: Imp [A]: 9.27

No-load voltage Voc [V]: 24.6

Short circuit current: Isc [A]: 10.2

Length [mm]: 1480

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 11

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, thickness 3.2mm

Technical data - Smart Solar MPPT BlueTooth charging controller - Victron Energy 75V 15A:

Charging regulators in the Smart version from the Dutch manufacturer Victron Energy are the most advanced devices available on the market. They have an ultra-fast MPPT power point tracking system that guarantees up to 30% more power than traditional PWM regulators. They also enable charging in the shade and in unfavorable lighting conditions such as morning and late afternoon.

Bluetooth interface ensures constant data monitoring in the mobile application

Technical data:

Battery voltage 12V or 24V (auto)

Rated charging current 15 A

Nominal PV power, 12V 220W

Max. PV short-circuit current 15 A

Automatic load disconnection Yes

Max. PV Open Circuit Voltage 75 V

Peak Efficiency 98%

Stand-alone Consumption – Load 12V: 19 mA 24V: 16 mA

Stand-alone Consumption – Load Relief 12V: 10 mA 24V: 8 mA

Charging Voltage "absorption" 14.4 V / 28.8 V (adjustable)

Charging voltage "float" 13.8 V / 27.6 V (adjustable) Charging algorithm Multi-stage adaptive

Temperature compensation -16 mV / °C or - 32 mV / °C

Max. continuous load current 15 A

Protection Output short circuit/over temperature

Operating temperature -30 to +60 °C (full rated power up to 40 °C)

Humidity 95%, non-condensing

Power terminals 6 mm² / AWG10

Weight 0.5 kg

Dimensions (hxwxd) 100 x 113 x 40 mm

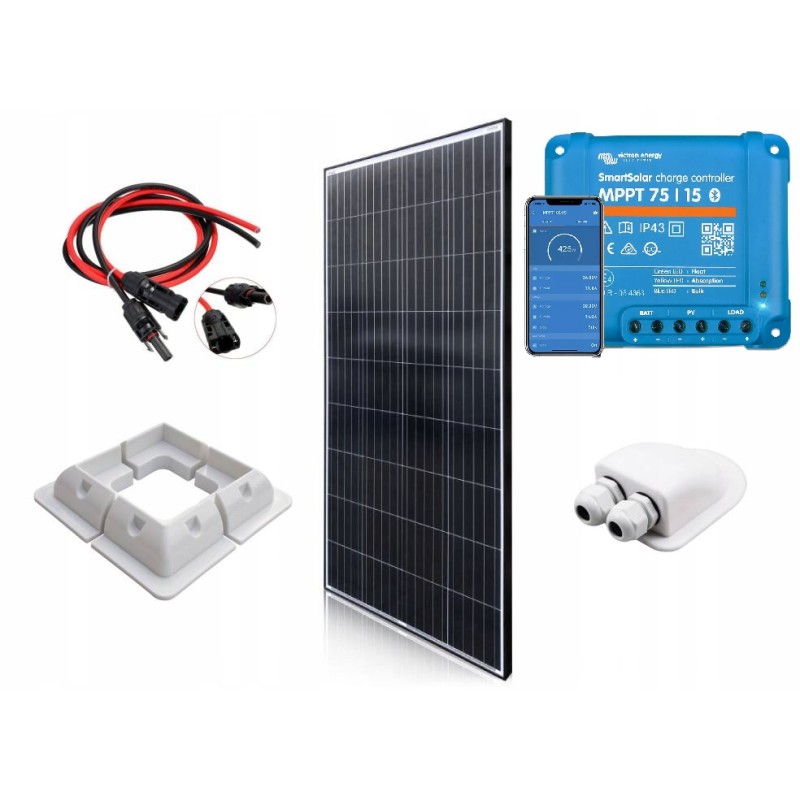

The set includes:

Photovoltaic panel model: 200W Maxx monocrystalline

MPPT Solar Charge Controller – Smart Solar BlueTooth – Victron Energy 75V 15A [pcs] 1

Mounting corners for the camper roof [set - 4 elements]

Double adapter for electrical cables [pcs] 1

Set of 2x5m solar cables 1x6mm2 terminated with mc4

We offer professional installation of photovoltaic installations in caravans, campers and bus campers in Lublin.

Our offer includes complete solar sets with various power from 100 W to a set of 450 W panels and more, hard glass, so-called frame and flexible panels.

Our offer includes polycrystalline and monocrystalline panels , rigid and flexible, with power from 50W to 450W from companies such as Maxx, 4sun, suntrack, Victron Energy and others, PWM and MPPT controllers from Epever Tracer, Lumiax, Victron Energy, Votronic and others

The cost of installing the installation depends on the power of the panel/ and solar panels, regulator and a given caravan, camper or bus and starts from PLN 400 net. (the price includes the installation of a complete photovoltaic set with one panel - everything needed to charge your battery with solar energy). Possibility to build a 230v installation (like from an electrical outlet, this allows you to use standard electrical devices that we use at home). We offer converters from VOLT, Green Cell and AZO Digital. Each installation is designed and priced individually depending on the customer's needs. Welcome to the eCamp Lublin service

Fast implementation times.
