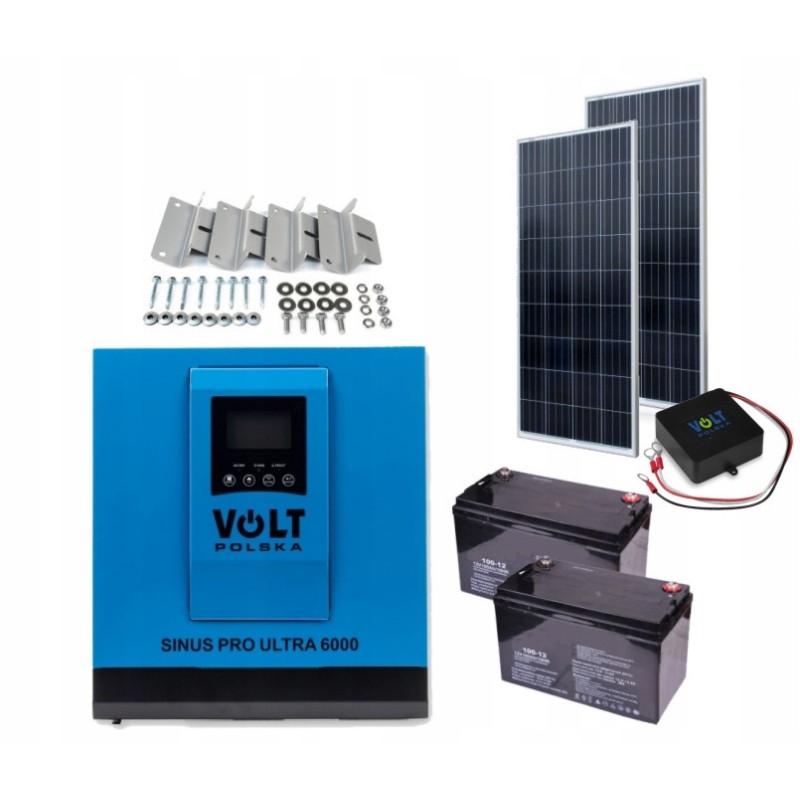

Solar kit off grid power plant 3kw pv 360w

Hybrid solar set with a continuous power of 3000W / instantaneous power of 6000W. The proposed set enables the use of a 230V power supply with a total power of 3000W CONTINUOUS / 6000W INSTANTIALLY. Ready-made photovoltaic set based on the off-grid SINUS PRO ULTRA 6000 solar converter with a built-in MPPT 60A charge controller in

Thanks to the use of 12V/230V sine voltage converter AND 2x100Ah BATTERIES, you can power devices such as: TVs, refrigerators, coolers, power tools, water pumps, compressors, transformer power supplies, power supplies for laptops, phones, central heating stoves, central heating pumps, office equipment - printers, scanners, computers

WE RECOMMEND THAT THE KIT IS CONNECTED BY A PROFESSIONAL OR A PERSON KNOWING THE BASICS OF ELECTRONICS The set includes: ULTRA 6000 inverter - 1 pc

180W panel - 2 pcs

AGM 100Ah battery - 2 pcs

Cables for connecting 5 m panels

AKU PROTECT 24V balancer

'The set can be expanded with additional panels and batteries.'

Maximum power Pmax (W): 180 W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.3

Voltage at maximum power Vmp (V) :18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A) :10.59

Module efficiency (%):18.2

Solar cell efficiency (%) :19.4

Nominal fuse current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 1480x670x35mm

Panel frame size: 30mm

Weight: 9 .8 kg

Off-Grid solar inverter VOLT POLSKA ULTRA 6000 3000W / 6000W The SINUS PRO ULTRA 6000 emergency power supply is used to power electrical devices requiring 230V alternating voltage from 24V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load.

INPUT PARAMETERS: Nominal input voltage: 230 VAC

Input voltage range: 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC( VDE)

Operating voltage frequency: 50 Hz/60 Hz (automatic detection)

OUTPUT PARAMETERS: Output voltage: 230 VAC

Peak power: 6000VA

Continuous power: 3000W

Efficiency: 98%

Switching time: 10 ms

Output voltage waveform: Pure Sine Wave

BATTERY: Battery voltage: 24 VDC

Battery charging voltage: 27.4 VDC

Battery overcharge protection

CHARGING:Charging type: MPPT

MPPT operating voltage range : 30VDC-120VDC

Maximum PV open circuit voltage: 120 VDC

Maximum charging current from PV panels: 60A MPPT

Maximum charging current: 60 A

Device dimensions: 290x342x118mm

Weight [kg]: 7.3 kg

Operating temperature: 0°C ~ +50°C

Humidity: 5%-95% relative humidity

The most important features: AC charger for charging the connected battery

Pure SINUS converter based on a toroidal transformer

Possibility to connect solar panels

The converter can operate in UPS mode, which ensures virtually uninterrupted and trouble-free operation of e.g. blowers, feeders, pumps, central heating installations, automation, etc.

LCD display with the most important parameters, including: input and output voltage, battery voltage and charging

Protection against: overload, short circuit

Solid and compact casing

Why is it worth using the SINUS PRO ULTRA power supply?• Construction based on an efficient toroidal transformer

• Wide input frequency range, automatic detection of 50/60Hz

• Full range of protections and alarms: overload, short circuit, over- and under-voltage, temperature protection

• Display LCD providing information about the current operating status of the device, including: input and output voltage, battery voltage and charging

BATTERY CHARGING TIME Charging time with a 180W Panel and a 100Ah Battery is approximately 5 hours in full sunlight

AGM 100Ah GEL BATTERY, MAINTENANCE-FREE

BATTERY VOLTAGE: 12V BATTERY CAPACITY: 100 Ah Maintenance-free batteries are made in AGM technology and intended for use in emergency power systems and other applications in which the battery operates cyclically or in a buffer mode.

They are characterized by high resistance to deep discharges

They absorb gases very well.

The designed service life is 8-10 years at 20-25°C.

Why is it worth using a battery:

• Does not require refilling or replacing the electrolyte

• Work in any position

• High efficiency and performance

• Long service life of 6-10 years

• High resistance to mechanical damage and high temperatures

• Safe to use (no electrolyte leakage)

The set includes:

ULTRA 6000 inverter - 1 pc

180W panel - 2 pcs

AGM 100Ah battery - 2 pcs

AKU PROTECT 24V balancer - 1 pc

Set of cables for 2x5 m MC4 panels

Cable for connecting batteries 1 pc

Inv-battery cables 2x1.5 m

The set can be expanded with additional panels and batteries.
