Flexible photovoltaic panel 150W set with MPPT

Welcome to all visitors to the Turismus auctions

The subject of the auction is:

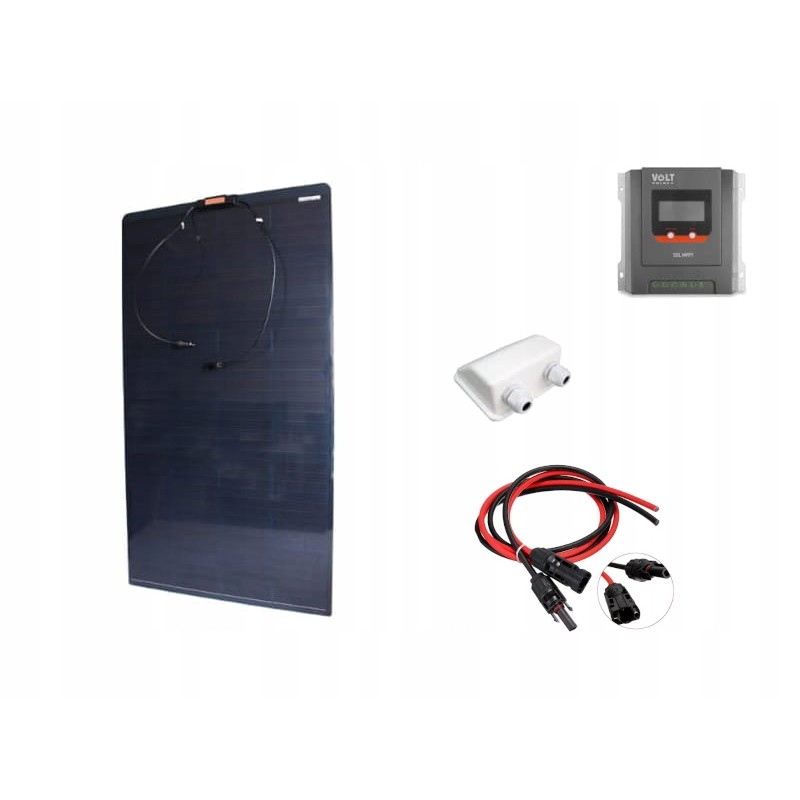

150W flexible photovoltaic panel for a trailer set.Complete 150W monocrystalline flexible photovoltaic set for installation on a caravan or camper.

The set consists of:

a 150W monocrystalline flexible panel from Solarfam,

a solar regulator SOL MPPT 20A BLUETOOTH by Volt,

double roof grommet,

solar cables (5m x black 4mm2 cable and 5m x red 4mm2 cable terminated with connectors).

Description of the photovoltaic panel:

The 150W flexible panel from Solarfam is a high-quality photovoltaic module . The panel is characterized by efficient monocrystalline silicon strips, the efficiency of which can reach 22%, and a fully flexible and waterproof design. Perfect for use on a caravan, camper, food truck or summer house. Panels supplied by Solarfam are made of small monocrystalline strips, making them smaller than panels of other brands.

product features:

2-year warranty,

made of high-quality silicon strips (small silicon strips instead of full lobes increase efficiency in a smaller area) ,

high efficiency in its class,

black aesthetic bottom of the panel covered with TPT (it is a multi-layer composite foil covering the back of photovoltaic modules),

dark navy blue top of the panel with a plastic coating, protects against mechanical impacts and hail,

a thickness of only 2mm increases flexibility and easier adaptation to the roof surface,

mechanical tested after production,

electrical testing after production,

tight product: IP67,

standard MC4 connectors,

mono-crystalline technology.

product technical data:

model: SZ-150-36MF,

cell type: monocrystalline,

maximum power: 150 W,

maximum current: 8.02 A,

maximum voltage: 18.7 V,

open circuit voltage: 22.24 V,

maximum system voltage: 100 V,

short circuit current: 8.49 A,

power tolerance: +3%,

silicon strip efficiency: 22%,

operating temperature: from -20 up to +65 °C,

connector: MC4,

module dimensions (length x width x height): 1170x680x2 mm,

weight: 3.5 kg,

bottom color: black,

top color: dark navy blue ,

manufacturer: Solarfam.

Description of the SOL MPPT 20A BLUETOOTH solar regulator by Volt:

The SOL MPPT 20A BLUETOOTH solar regulator is designed for charging batteries from a connected set of solar panels. This modern and multifunctional device charges based on the latest and most efficient MPPT charging technology. By optimizing the charging process, the regulator effectively extends the battery life compared to standard PWM regulators. The SOL MPPT 20A model is equipped with a BLUETOOTH wireless communication function, thanks to which you can remotely control and view the regulator's operating parameters.

downloadable application:

Solarlife in the Apple Store for IOS,

Solar life in the Google Play store for Android.

most important features:

modern MPPT (Max Power Point Tracking) maximum operating point tracking technology,

conversion/tracking efficiency >, 99.9%,

clear LCD display showing the most important operating parameters,

automatic recognition of the voltage of the connected battery 12/24V,

to work with GEL (gel), AGM, lithium and liquid electrolyte batteries,

temperature sensor with automatic temperature compensation (if the temperature exceeds the set value, the charging current will decrease to reduce the temperature),

four-stage charging: MPPT, BOOST (pulsed), Equalization (equalizing), Float (sustaining),

many modes of controlling the connected load: always-on, from dusk to dawn, night and manual,

controller operation via dedicated smartphone application via Bluetooth (wireless control of operating parameters),

fully automatic protections (short circuit, temperature, overload).

technical data:

max charging current: 20A,

battery voltage: 12V/24V,

maximum voltage from panels: 100V,

own power consumption: 7mA,

for batteries: AGM, GEL,

MPPT charging voltage: <,14.5/29.0V (at 25°C),

BOOST voltage: 14.5/ 29.0V (at 25°C),

Equalization voltage: 14.8/29.6 (at 25°C),

Float voltage: 13.7/27.45 (at 25°C),

low voltage load disconnection: 10.8~11.8 V/21.6~23.6V SOC1~5,

reconnect voltage: 11.6~12.8V/23.2~25.6V,

overcharge protection: 15.5/31.0V,

temperature compression: -4.17mV/K per cell ( Boost, Equalization) -3.33mV/K per cell (Float),

dusk/dawn detection voltage: 5/10V,

dimensions: 189x182x64mm,

weight: 1.3kg,

protection: IP32,

manufacturer : Volt.

art.no. 150WKITVOLT
