SOLAR PANEL SOLAR KIT 360W + 20A MPPT REGULATORThe proposed set allows you to use solar energy to charge a 12/24V battery. The collected energy can be used to power devices or lighting with a voltage of 12/24V (such as from a cigarette lighter socket in a car). It is also possible to use a converter from 12/24V to 230V AC to power typical electrical devices.

This set solves the problem of access to electricity in a camper or caravan

On a boat, yacht, houseboat

On a recreational plot, summer house .

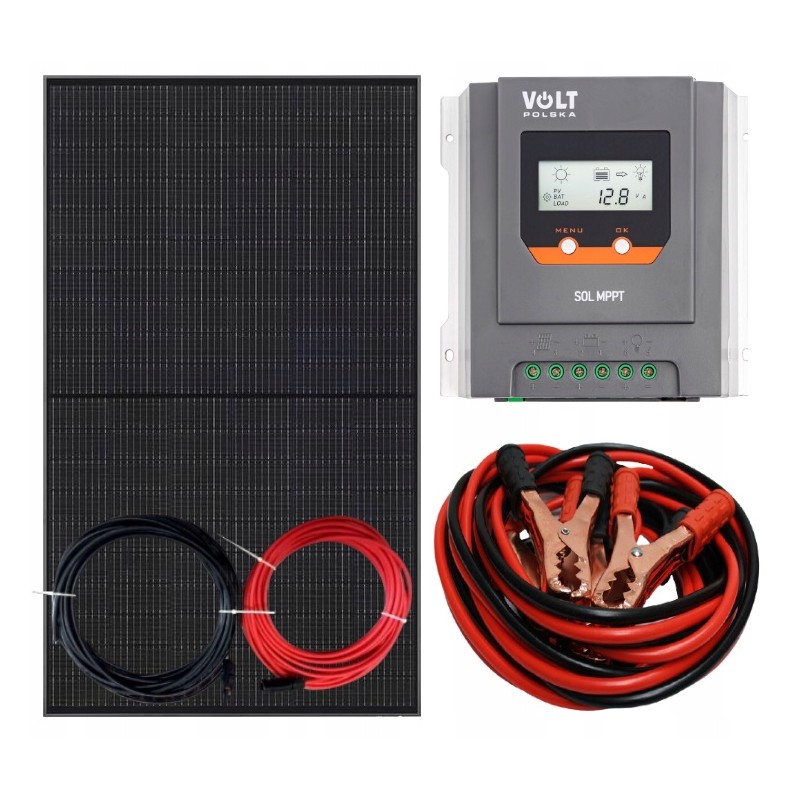

The set includes: Solar Panel 360W Astro FULL BLACK MONO HALFCUT 10.68A 39.80V 176.5cm×104.8cm×3.5cm

MPPT Voltage Regulator 20A 12V/24V BLUETOOTH with LCD Panel VOLT POLSKA / Will easily handle 2 such panels.

Solar cables 4mm2, 3m long

Cables with crocodile clips for connecting to the battery, 1.2m long

Solar Panel 360W Astro FULL BLACK MONO HALFCUT 10.68A 39.80V 176.5cm×104.8cm×3.5cmData technical specifications of the photovoltaic panel: Maximum power (Pmax): 360 Wp

Maximum power voltage (Vmp): 33.24 V

Maximum power intensity (Imp): 10.68 A

Open circuit voltage (Voc): 39.80 V

Short circuit current (Isc): 11.15 A

Module efficiency: 19.2%

Power tolerance: 0~+5W

Maximum nominal fuse current: 20 A

Number of cells: 120 (6x20)

Class II

Panel dimensions: 176.5cm×104.8cm×3.5cm

Weight: 19.5 kg

Frame material: anodized aluminum alloy

Operating temperature: -40*C - +85*C

Glass : tempered anti-reflective glass 3.2 mm

Connection box: IP68, 3 diodes

MC4 connector x2 4mm2

VOLTAGE REGULATOR 20A MPPT BT VOLT POLSKAMPPT solar regulators by VOLT are devices based on advanced technology that involves tracking the MPPT maximum power points (maximum power point tracking) on the PV solar panel. Thanks to this technology, the efficiency of MPPT solar controllers is incomparably higher than in the case of classic PWM models.

Characteristics

The combination of multiple tracking algorithms allows you to quickly and precisely track the maximum power point

Innovative maximum power point tracking technology (MPPT), tracking efficiency >.99, 9%, Fully digital technology, high charging conversion efficiency up to 98%.

LCD display, easy reading of operating data.

Real-time energy statistics function.

12/24/48V automatic detection.

Flexible battery selection: Liquid, Gel, AGM and LiFePO4. Extended service life thanks to a remote temperature sensor.

The regulator is protected against overheating by a built-in power limiting function.

It also has a four-stage charging process: MPPT, pulse (boost), equalize, float.

Double automatic protection against too high charging power and too high current.

Numerous receiver operating modes: Always on (always on), Dusk to Dawn (from dusk to dawn), Evening (evenings) and manual mode.

Wireless communication or communication Bluetooth. Optional mobile application for Bluetooth communication.

The controller can be remotely connected to IoT/GPRS thanks to the IoT remote communication function. Monthly operating data can be counted and displayed graphically.

TECHNICAL DATA:Regulator: SOL MPPT 20A + BLUETOOTH

System voltage: 12V / 24V AUTO

Maximum charging current: 20A

Maximum voltage from panels: 100V

Maximum input power of 18V 12V/24V panels: 260W/520W

Maximum input power of 36V 12V/24V panels: 390W/780W

Own consumption power: 7mA

Supported batteries: GEL, AGM, with liquid electrolyte

Smartphone application: Bluetooth connectivity, ANDROID / IOS*

Dimensions: 189 x 192 x 64 mm

Weight: 1.25 kg

*suitable application available in Google Play / Appstore

BATTERY CHARGING TIMEThe table below presents the time needed to charge batteries available on the market depending on the power of the photovoltaic system.

The solar battery will easily charge a 100 Ah battery in less than 6 hours from full discharge!!!

NOTE: Battery is not included. We recommend a gel or acid battery of at least 100Ah for this set. Of course, you can use a smaller one, but the amount of stored energy will be smaller and the service life will be shortened. Generally, the larger the battery, the better.

The charge controller controls the battery charging process and protects it against excessive charging or discharging.

Connection sequence:1. Battery

2. PV panel

3. Load (bulb symbol)

NOTE: Before connecting, ALWAYS make sure that you connect with the correct polarity, i.e. plus to plus and minus to minus. Despite the protection provided, incorrect connection may result in damage to the regulator, e.g. overheating, as well as damage to the battery and the PV panel. EXAMPLE PHOTOS OF PANEL APPLICATIONS
