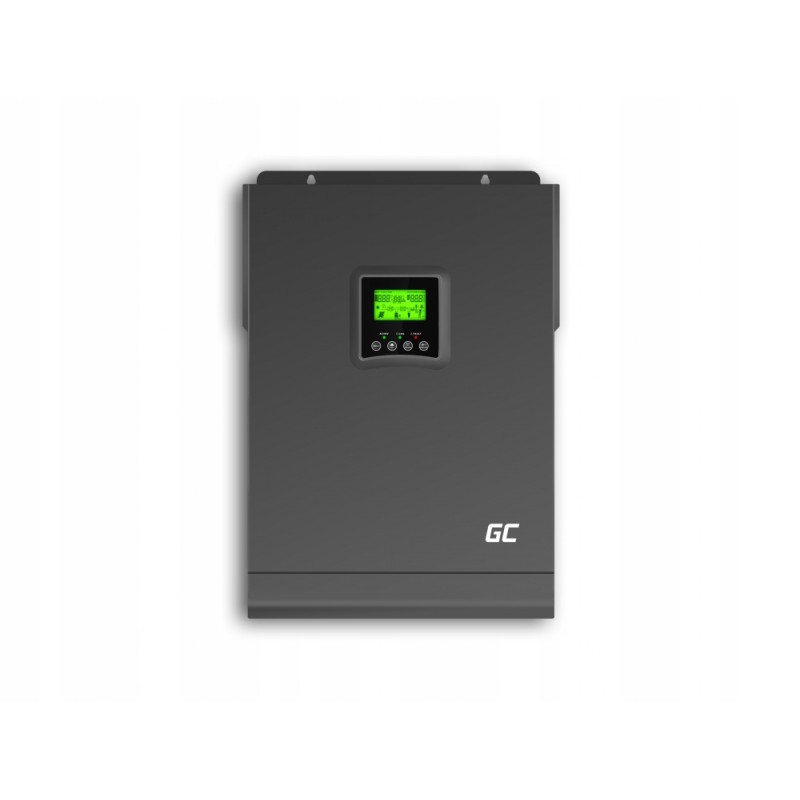

MPPT 80a 3000w 48vdc 230vac solar converter

Green Cell PV18-3048 VPM 3000W inverterSolar converter with MPPT 80A controllerGreen Cell PV18 3048 VPM 3000W solar converter with MPPT 80A controller - connection of three different devices and guarantees multifunctionality

MPPT controller - maximizes the power obtained from solar panels

inverter - converts solar energy into 230V alternating current

energy storage charger

pure sine wave - ability to connect all electronic devices requiring high-quality electricity.

The main purpose of the inverter is to provide continuous power supply even during a power outage or in the absence of access to the power grid.

For proper operation, the converter needs a connection to an energy source - e.g. photovoltaic panels or a connection to the power grid. The device itself will not generate electricity.

The functionality and operation of the inverter can be conveniently controlled from a computer - through a dedicated program.

In order to use all the functions of the Green Cell solar inverter, software has been created that allows for advanced management of the device and adjustment of the inverter's operation to individual needs. The application guarantees simple and intuitive operation, so that its use does not cause any problems. The program provides a real-time preview of measurement data. What is the function of the MPPT charge controller in the solar converter? The MPPT charge controller allows you to maximize the power obtained from solar panels. Its main task is to convert energy obtained from the sun into electricity with appropriate parameters needed to charge batteries and power devices. Thanks to the highest quality electronics, it is able to work with even the most extensive off-grid photovoltaic systems, ensuring full safety and maximum efficiency.

The operation of the Green Cell MPPT solar converter is extremely intuitive!

It is equipped with a clear and multifunctional display informing about the most important operating parameters of the inverter, Moreover, you can adjust the settings to your individual needs.

LED indicators (in three colors and distinguishing the information by constantly lighting or flashing) will inform you about the current power supply mode of the converter, whether it is charging or discharging, but also indicate that a fault or error has occurred - which will make it much easier to find the problem. Four function buttons allowing you to enter the reset mode or settings mode, and go to the previous selection. Increasing and decreasing the setting value and making selections in the settings mode, moving to the next selection and exiting the reset mode.

If you need more functionality, use a dedicated program - you can download the software above.

You will take care of the environment and save money at the same time

Thanks to the Green Cell solar inverter and the use of renewable energy as a power source for its devices. As the brain of solar installations, it allows you to maximize the power obtained from them and optimally manage it in all conditions - both during power outages and lack of access to the power grid. You will also get electricity in places where it is impossible to connect to the power grid - when traveling, e.g. in a camper. Just install photovoltaic panels on the roof of your vehicle, connect them to the converter and enjoy electricity anywhere.

It has the most important and necessary protections

The operation of the converter is very simple - three steps are enough:

Obtaining energy from solar panels or by connecting to the power grid ->, charging and receiving energy from energy storage ->, powering devices with 230V alternating current.

Allows the direct use of photovoltaic panel systems to power devices such as:

all types of electronics (charging phone, tablet, laptop)

air conditioners

electric boilers

heaters

heating mats, etc.

Specification

Battery voltage: 48V

Output voltage: 230V AC

Output voltage shape: Pure Sine Wave

Output frequency: 50Hz or 60Hz (automatic detection)

Efficiency: 98%

Usable power (continuous): 3000W

Instantaneous power (pulse): 6000W

Power consumption without load: 2W

Maximum charging current: 140A

Dimensions: 297.5 x 468 x 125 mm

Weight: 13.3kg

Maximum PV voltage (VOC): 145VDC

Inverter efficiency: 90% - 93%

AC voltage regulation (battery mode): 220VAC - 240VAC (can be set )

Charging voltage: 54.8V

PV voltage range for MPPT: 60-130VDC

Maximum PV power: 4000W

Maximum MPPT output current: 80A

Consignment contents from the Connector store:

Green Cell 3000W voltage converter

wiring

user manual in Polish
