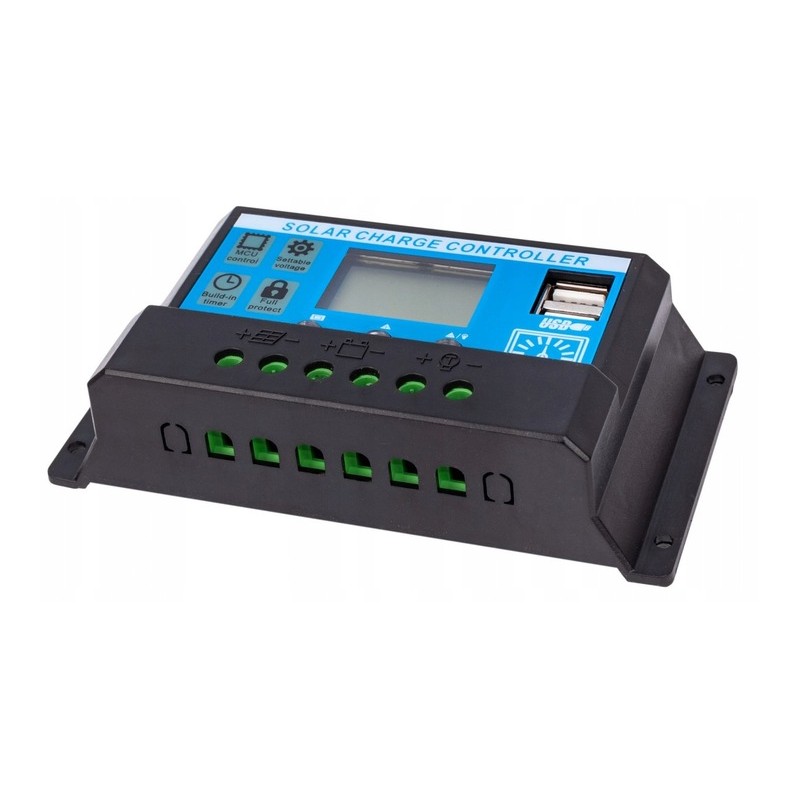

12v 24v 60a solar charge controller controller

CHARGING REGULATOR SOLAR CONTROLLER 12V 24V 60A SERVICE CARE AS A GIFT - Promotion 2023 Only for devices from the latest delivery Extended package value - PLN 39.00 gross

When purchasing at this auction you receive the package completely FREE :)

ADDITIONAL PROMOTION EXCLUSIVE NOW -50% UNTIL FURTHER NOTICE WE PRESENT ON NEWER version of the REGULATOR POLISH PREMIERE!REGULATOR sold under our LOG!Highest quality Regulator only from us!Newest Model!!!* in MEGA PROMOTION*SOLAR CHARGING REGULATOR CONTROLLER 12V 24V 60A WE OFFER THE LATEST MODEL❗❗❗ NEW ❗❗❗Price reduction from PLN 189.90 ł on 98 .90 PLN! Only Now!Don't miss this Opportunity Buy Today!We focus on professionalism and fast service!---Occasion---Last pieces at this price!* List price PLN 189.90

* Limited number of pieces in the promotion

Please place orders

The only CERTIFIED, AWARD WINNER on the market* PREMIUM PRODUCT 2023*Charging Regulator 60A 12V 24V PWM Solar Controller Solar PWM regulator and charge controller for 12/24V photovoltaic panels with LCD display and two USB ports.

Solar regulator and charge controller for panels 12/24V photovoltaic panels with LCD display and USB ports.

Converts the energy supplied from the panels to the battery, and at the same time protects against overcharging of the batteries and excessive discharge by receivers connected to the regulator.

If the battery voltage at the output is 12V, the panel voltage can be a maximum of 23V . If the battery voltage at the output is 24V, the panel voltage can be a maximum of 46V.

Applications: Campers

Boats

Solar lamps

Parameters:

Panel power: 12V= 780W (MAX), 24V= 1560W (MAX)

Maximum charging and discharging current: 60A

Specification: Condition: New

High quality workmanship

Display: LCD

Built-in 2x USB 5V/2.5-3A

Protection against excessive discharge and overcharge

Discharge protection: 11.1V or 22.2V

Overcharge protection: 14.4V or 28.8V

Panel voltage up to 24V for a 12V battery, Max power: 780W

Panel voltage up to 48V for a 24V battery, Max power: 1560W

Panel power: 12V= 780W (MAX), 24V= 1560W (MAX)

Maximum charging and discharging current: 60A

Periodic battery desulfation function.

Dark voltage: 8V

Current consumption: <.10mA

Operating temperature: -34°C +60°C

On the controller display you can see the current battery charging voltage and set/select the operating mode with gel, acid and AGM batteries. Manual programming of the voltage setting and output switching time is also allowed. By selecting the function button, you can call up the selected parameter and modify it using the arrow buttons and confirm. It is possible to change the battery type, charging and discharging voltage and the time of switching on the power supply of the connected receiver after dark. HOW TO CHOOSE A REGULATOR? Before purchasing, please pay attention to the voltage/power of your panels and follow the information given below. If the voltage of the panel(s) is above 24V, for proper operation it will be necessary to have a 24V battery or connect two 12V batteries in series:

10A regulator, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery), Max power: 120W (12V), 240W (24V)

Regulator 20A, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery), Max power: 240W (12V), 480W (24V)

Regulator 30A, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery), Max power: 360W (12V), 720W (24V)

40A regulator, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery ), Max power: 520W (12V), 1040W (24V)

50A regulator, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery), Max power: 650W (12V), 1300W (24V)

60A regulator, Max voltage from the panel: up to 24V (12V battery), up to 48V (24V battery), Max power: 780W (12V), 1560W (24V)

How to connect?

Connect the controller to the solar panels, paying attention to the maximum voltage system supported by the controller.

Connect the battery. The regulator should detect its voltage and adjust the charging parameters to it.

Connect the receiver, you can connect a receiver/lighting with a maximum power of 360W directly to the input marked with a light bulb. To connect other devices, use an inverter that is connected directly to the battery.

Note: incorrect selection of the regulator and therefore its damage will result in the complaint not being accepted.

***ARE YOU LOOKING FOR THE highest quality REGULATOR?***❗❗This offer is just for You !! Only now professional REGULATOR in MEGA PROMOTION !!! PRICE PROMOTION ONLY UNTIL THE END OF THIS WEEK ❗⏳ ⏰ LAST CHANCE ⏰ HURRY ⏳ ONLY NOW LAST OPPORTUNITY ❗* NEW REINFORCED MATERIAL ⚡ ❗ We have a service center for these devices! * YOU MUST HAVE IT ⚡SO GOOD ? THE REGULATOR HAS NOT BEEN YET??The set includes: SOLAR REGULATOR 60Aregulator SOLD UNDER OUR LOGO!We also offer models 10A,30A,40A. Welcome.60A
