Inverter off grid hybrid solar 3 2kw 24v 80a anern

WARNING: Do-it-yourself installation may result in danger or damage to the equipment. Commissioning should be performed by an electrician with experience in operating these devices, according to the following rules:

The nominal power of the inverter and PV installation should be three times higher than the power of the connected energy receivers. If the starting power of the connected loads exceeds the power of the inverter, it may be damaged. Please select the appropriate inverter model before purchasing.

Connect the power circuits correctly according to the instructions and install breakers and protection devices for each circuit.

Initial start-up: turn on the breaker first battery, turn on the inverter and turn on the PV, grid and power receiver switches.

Turn off: turn off power receivers, PV and grid, turn off the inverter, and finally turn off the battery.

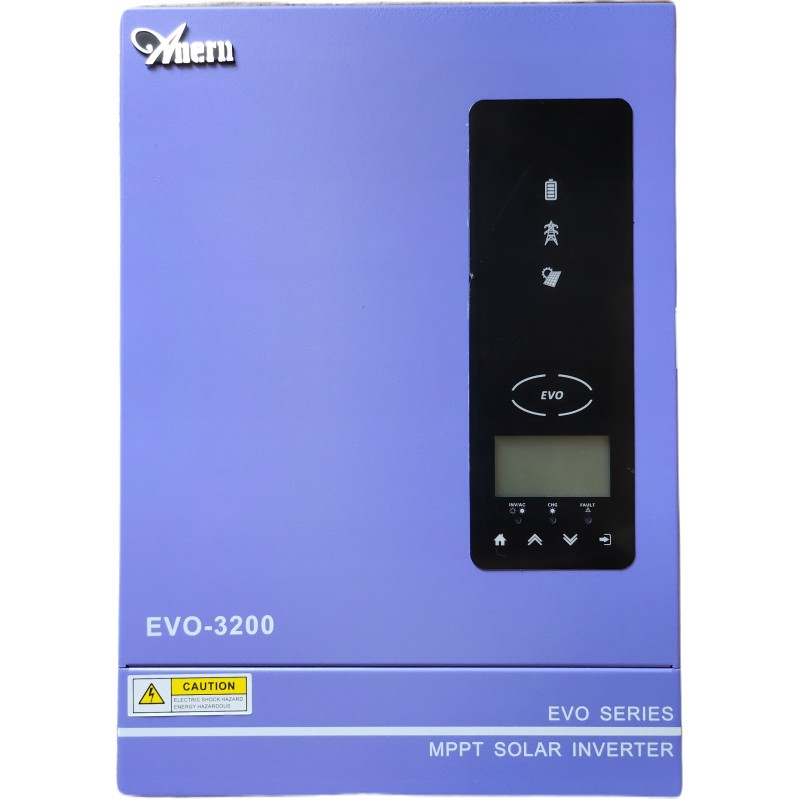

New, unused, 3.2kW inverters, 230V solar inverters off -grid 24V, with MPPT 80A, Max PV 400VDC, with WIFI. Model Anern AN-SCI-EVO-3200

NOTE: Battery needs to be connected to the inverter.

The MPPT voltage is 30-400VDC this upgrade allows the open circuit voltage of connected solar panels to be higher than 35VDC for the first time, then stable input of 30VDC to normal use of the inverter, This means that fewer solar panels are needed for power supply than before.

WiFi module is included

Inverter features:

Off grid inverter.

Works in an installation with a battery.

Can be restored to factory settings.

Built-in automatic activation of the lithium battery.

Built-in MPPT 80A solar controller.

Solar charging Max 3000W

Wide PV input voltage range (30-400VDC).

Intelligent battery charging to extend its life.

WIFI available for IOS and Android.

Note:

You must properly adjust the battery capacity to the system in accordance with the specific power consumption requirements. Too small will lead to a rapid decline in battery capacity. Too much power generation to waste.

Note:

You must properly match the battery capacity to your system according to your specific power consumption requirements. Too small will lead to a rapid decline in battery capacity. Too much to waste generating energy.

Model: SCI-EVO-3200

Rated power: 3200VA/3000W

AC input

AC input voltage: 230VAC

Selectable voltage range:

170-280 VAC (computers)

90-280VAC (Home Appliances)

Frequency Range: 50Hz/60Hz (Auto Sensing)

AC Output

AC Voltage Regulation (Batt. Mode): 230VAC ± 5%

Surge Power: 6400VA

Performance (peak) PV to inverter: 98%

Efficiency (peak) battery to inverter: 94%

Transfer time: 10ms (for computers), 20ms (for home appliances)

Wave waveform: Pure sine wave

AC battery and charger

Battery voltage: 24VDC

Variable charging voltage: 27VDC

Overcharge protection: 33VDC

Maximum AC charging current: 60A

Solar charger

Maximum PV array power: 3000W

MPPT range operating voltage : 30-400VDC

Maximum voltage in the open circuit of the PV system: 400VDC

Maximum charging current: 80A

Dimensions: L x W x H (mm)

390*270*100mm

Net weight (kg): 5.4

Communication interface: WIFI (module included)

Operating humidity: 5% to 95% relative humidity (non-condensing)

Operating temperature: -10° to +50°C

Storage temperature: -15° to + 60 ° C

Frequently asked questions:

Q: do you need to connect batteries?

A: YES

Q: can you connect the power supply from the inverter directly to the receivers?

A: yes

Q: can it be connected to the grid ?

A: no, there are no certificates for ZE in Poland

Q: how many solar panels must be connected?

A: to start the inverter normally, the voltage of the solar panels should be 300V-400V, the maximum should not exceed 500V. For example, 10 pieces of 250W 30V solar panels are connected in series.

Q: Can the inverters be connected in series or parallel?

A: No.

Q: What kinds of batteries can be used?

A: Batteries can be used. -lead batteries, gel batteries, lithium iron phosphate (LiFePo4) and lithium. 24V. The battery cannot be less than 100AH.

Q: Can it be used in air conditioners, water turbines and wind turbines?

A: It can be used in air conditioners, but not water turbines or wind turbines.

Q: Can is it a high frequency converter or a low frequency converter?

A: high frequency

Q: can the grid power be used to power the inverter when there is no sun?

A: yes.

Q: how to select the power of the inverter according to with household appliances connected?

A: if household appliances such as refrigerators, washing machines, air conditioners, etc. are connected, the inverter power must be at least three times the total power of the inductive receivers, otherwise the devices may not start.

Q: whether Can you use PV, battery, grid power at the same time?

A: yes. The default mode is PV priority. When the power from PV is insufficient, the battery and grid will be used.
