Staubli mc4 evo2 connector set, cable 4 6 mm2

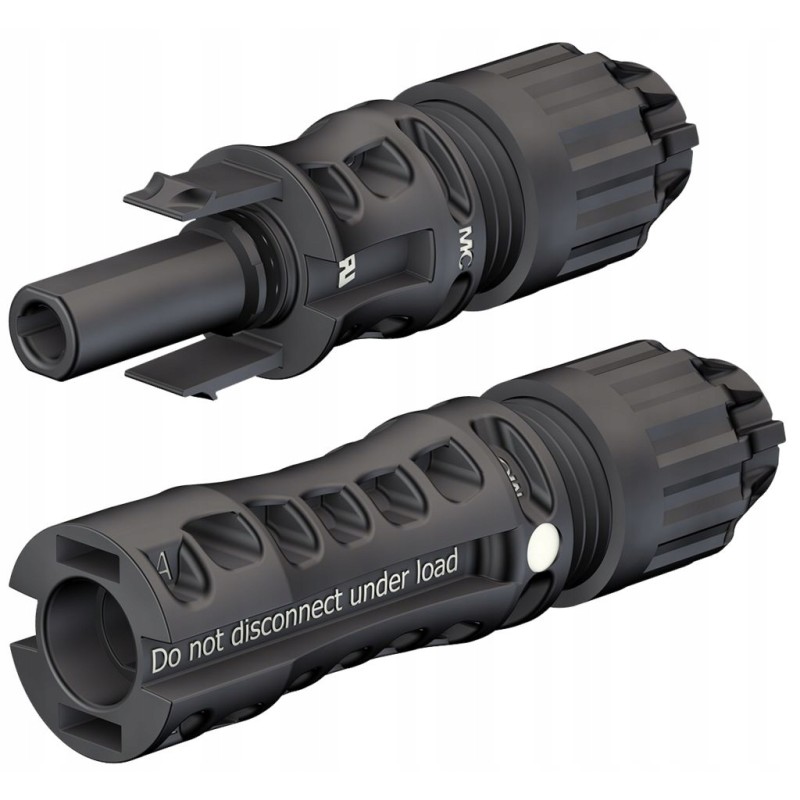

MC4 EVO2 - Set of connectors for a cable with a cross-section of 4 mm2 or 6 mm2. The set of photovoltaic connectors consists of a PV-KST4-EVO 2 plug (1 pc.) and a PV-KBT4-EVO 2 socket (1 pc.), which are intended for cables. with a cross-section of 4 mm2 or 6 mm2 and a total diameter (with insulation) from 4.7 to 6.4 mm. The connectors are waterproof, resistant to high temperatures and UV rays. Very good quality plastic housing with a hidden latching system ensures electrical and fire safety. The design of internal electrical contacts guarantees long-term stable and failure-free operation with minimal losses of energy produced. The quality of the connectors is confirmed by the following certificates: TÜV-Rheinland, UL, CSA, CQC, JET, resistance to salts contained in the air and resistance to ammonia contained in the air. The set includes a socket with a plug and original dedicated connectors (pins). This is the original a product of the Swiss company Stäubli (Multi-Contact), characterized by reliability and durability in all conditions. It is made of the best components available on the market. NOTE Due to any doubts as to whether this is an original product, I will now clarify. The inscriptions on the product are white only in the photo to show that they are there at all. The fakes have no inscriptions at all. This is how the manufacturer draws attention to it. Stäubli (Multi-Contact) uses white lettering on regular MC4s because it has a smooth surface, but on MC4 EVO2 they are only embossed because they are in a hard-to-reach place. Please do not be influenced by one opinion of someone who has no idea about it and is an amateur. I have been selling Stäubli (Multi-Contact) products for several years and no one has yet proven to me that they are fakes. Feel free to purchase. Specification: Max system voltage: 1500 V DC (IEC)

IEC nominal current: (85°C) – 45A / 4 mm² or 53A / 6 mm²

Operating temperature: 40°C… + 85°C (IEC)

Degree of protection:

IP65/IP68 (1 hour / 1 meter)

IP2X (disconnected state)

Contact resistance: <.0.2 mΩ

Contact type: Ø 4mm banana connector, made of tin-plated copper, elastic elements inside the sockets improving electrical contact - Multilam

Max system voltage:

1000 V DC / 1500 V DC (TÜV)

600 V DC /1000 V DC /1500V DC (UL)

1500 V DC (JET)

Nominal current TÜV (85°C) depending on the cable cross-section

39A - 2.5 mm²

45A - 4, 0 mm²

53A - 6.0 mm²

69A - 10.0 mm²

Test voltage:

12 kV 1000 V DC

16 kV 1500 V DC

Operating temperature:

- 40°C… + 85° C (TÜV/UL),

Max. operating temperature:

115°C (TÜV)

Protection level:

IP65 / IP68 (1 hour/ 1 meter)

IP2X (disconnection state)

Overvoltage category/Pollution degree:

CAT III / 3

Contact resistance (approx. 25 years) guaranteed ≤ 0.2mΩProtection class:

Class II

Type of cable connection / Disconnection protection (UL):

Clinching/snap system

Insulation:

PA (polyamide)

Connector polarity:

Plus – PV-KBT4/EVO 2/….

Minus – PV-KST4/EVO 2/….

Warning: “Do not disconnect under load” – Do not disconnect under load

Flammability class:

UL94-VO

Certificates:

TÜV-Rheinland according to IEC 62852:2014 - R60098495

UL according to UL 6703 - E349713

JET according to IEC 61730-1:2004 - 1625-C4302 -167

Resistance to ammonia contained in the air (TÜV) - Q60095359

On other auctions the following are available:

original MC4 connectors for mounting on cables and in housings

new series of MC4 EVO connectors compatible with MC4

MC4 parallel connectors for connecting panel chains

tools for mounting MC4 and MC4 EVO 2

connectors FLEX SOL EVO TX solar cables (1500 VDC, according to EN 50618)

In the case of photovoltaic connectors, the most important thing is that their parameters are stable during the 25 years of operation of the installation. The minimal and time-stable contact resistance of MC4 connectors guarantees maximum financial profit thanks to minimal energy losses, no service interruptions and failures, and fire safety. The connector contacts are made of tin-plated copper, which, unlike silver-plated copper, ensures a lower rate of electrochemical corrosion both in the connection of plugs and in the connection of tinned wires crimped on the connectors.

The design of the new MC4 EVO2 connectors enables operation at a voltage of 1500 V and the transmission of much higher currents (for a 4 mm² cable - 45 A). Multi-Contact has obtained the following certificates for connectors: UL, TüV, IP68 1h/1m tightness, resistance to salts in the air and to ammonia gas. The connectors can be connected to wires with cross-sections of 2.5, 4, 6, 10 mm². FLEX SOL EVO TX solar cables meet the latest EN 50618 standard and, thanks to good quality copper, ensure minimal voltage drops. They are characterized by very good mechanical, chemical and environmental parameters. They are covered with a substance that limits smoking. The product is new, original, unused, factory packed. HOW TO PLACE AN ORDER
