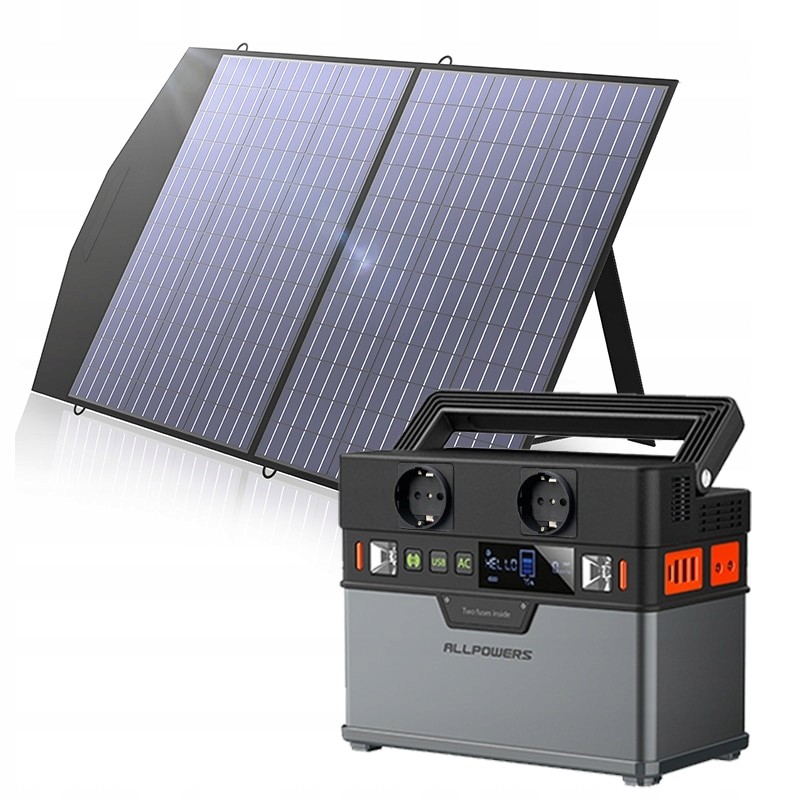

Set of portable power supply station and collector

Portable Power Station Kit Electricity Collector KIT: Portable Power Station - AllPowers S300 AllPowers 100W Solar Panel --------------------------------- ------------------------------------------

Full GW after-sales service. 24 months Inductive charging Fast charging 288Wh/78000mAh 300 - 500 W1. Technical Data: Battery capacity: 288Wh/78000mAh

Rated power: 300W

Peak power: 500W

Input:

Car cigarette lighter not included: voltage 12-22V current 3.2A (at max)

Solar, MPPT: voltage 16.6-22V current 3.2A (at max)

AC: voltage 110V to 220V current 2.0 a (at max.) please use the adapter (20V-2.0 a) included with this device,

USB-C: input 5V-20V/60W max, QC3.0

Output:

AC: 2 × US/JP 110V 300W or EU/UK 220V 288W (surge power 500W)

DC: 3 × USB: 5V3.0A (maximum three ports 8.0A) 2 × DC5521:12V5.0A

1 × USB -C: 5V/3a, 9V/3a, 12V/3a, 15V/3a (two-way PD support in/out max 60w) 1 × carport: 12V 10a

Wireless charging: 5V2.1A

Solar panel technical data:

Peak power: 100W ± 5%

Connector: MC4 waterproof IP67

Open circuit voltage (VOC):22.4V

Open circuit current (IOC):6.0A

Maximum supply voltage (Vmp):18V

Maximum current power supply (Imp): 5.5A (max)

Solar energy conversion rate: 22%-25%

Operating temperature: -20°С ~ 60°С

Unfolded size: 103*68*1cm ± 0.5 cm

Foldable size: 68*51*2cm±0.5cm

Net weight: 2600g±50g

2. 4 charging methods The ALLPOWERS S300 portable power source boasts 4 charging methods for the emergency battery. Fully charge your portable power station with

AC 110V wall socket takes about 5-6 hours,

Direct sunlight with solar panel (DC 100W Max) is about 6 hours,

12V/24V car socket is about 6-7 hours

Type C socket with 60W 6-7 hours

3. How long will ALLPOWERS S300 last you? Charging the smartphone 40-45 times

Refrigerator approx. 6 hours of continuous operation

Laptop approx. 4-6 hours

Fan 50W 4-5 hours

4. Save money Instead of using paid energy, store it. Energy storage allows you to use energy produced by the sun. The more energy you store, the more you save.

5. Safety of your devices With energy storage, you don't have to worry about sudden power outages. Thanks to this, your data is safe and you will be able to continue your work for many more hours. Additional anti-overvoltage protection will protect your equipment against damage, and the charge indicators will tell you how long you can use free energy

6. Convenience while traveling You can take our energy storage units with you literally anywhere. With a solar panel, thanks to which you can replenish electricity shortages using a renewable energy source such as the sun. You can take them to the beach, fishing, camping or use them while traveling. Connect your laptop, hairdryer, telephone, kettle. Use all devices freely just like at home

7. App control and monitoring Highest wireless stability thanks to Bluetooth technology that connects your devices in the blink of an eye. New APP, makes operation easier. Bluetooth technology ensures stable and reliable operation. Works almost anywhere, no dongle or transceiver to lose from office to travel.

8. Charge devices without a cable Thanks to a special plate on the top of the device, you can charge your phone and other devices without using a cable

9. Ecological power of the sun You can charge the ALLPOWERS S300 station using unlimited solar energy - just connect it to solar panels using a special port. Dedicated ALLPOWERS panels as well as publicly available solar systems with appropriate voltage can be used to charge the station.

Recommendations 1. It is recommended to fully charge it at least once every 90 days to maintain the best performance, reliability and longevity.

2. Due to the chemical properties of the battery, the available battery capacity may vary slightly depending on the environment, such as cold weather or overheating. It is recommended to use the device at a temperature of (0 °C-40 °C). You should also watch out for rain.

3. The batteries inside are non-removable and cannot be disassembled, if you take good care of the equipment, it will last up to 10 years

4. Do not always discharge the power bank to 0% and do not leave it uncharged - this shortens its life. It is best to leave it with at least 20% of the battery if we want to put it aside for some time.

Q: What devices are compatible with ALLPOWERS 288Wh?

Suitable for electronic devices whose rated power is less than 300W and the peak power is not more than 500W.

Q: How do I know how long I will power my device?

AC output: working time = 288Wh * 0.85 / working power of the device.

DC output: working time = 288Wh * 0.90 / working power of the device.

Q: How long does it take to fully charge the power plant?

Fast AC charging from 0% to 80% in 3.6 hours and fully charged in 5-6 hours.

About 6 hours in direct sunlight with solar panel (DC 100W max. 6-7 hours with 12V/24V car socket and 6-7 hours and with 60W (max) Type - C Socket

Q: Which what kind of solar panels can be connected?

18V60W ~ 18V100W solar panel will be able to charge our generator. The solar input can handle up to 60W power per hour and is regulated by MPPT. As we know it is not always as sunny as in summer, so we suggest you choose the foldable charger 80-100W solar generator.

Q: Can you power devices and charge the S300 storage at the same time?

Yes, the ALLPOWERS 300W solar generator can charge and discharge at the same time.
