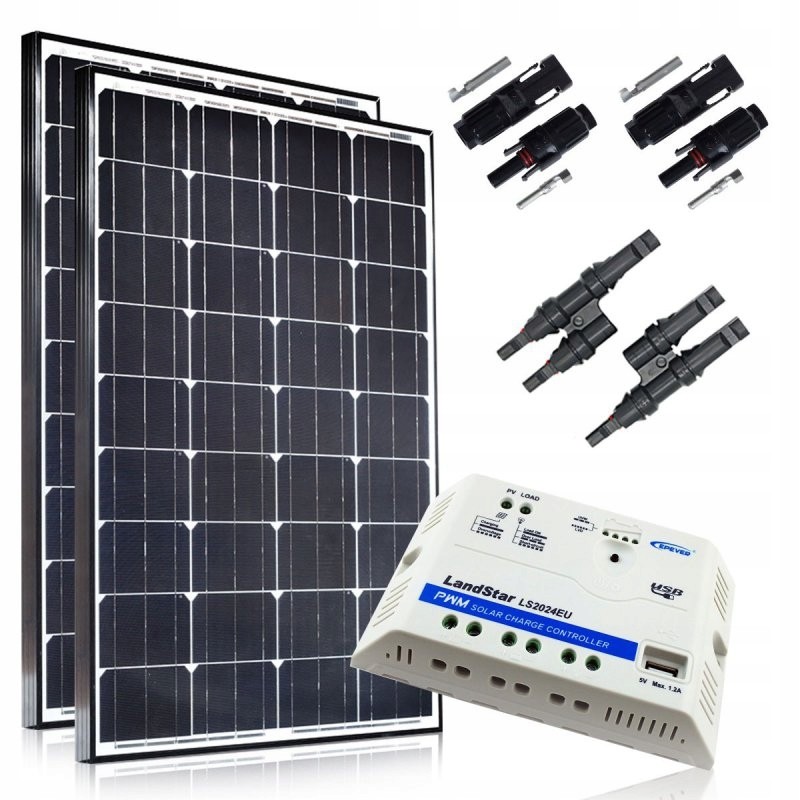

Solar kit solar pv 280w camper plot

280W photovoltaic set, 140W solar panel - 2 pcs

Serial connector - 2 sets

EPEVER LS2024EU 20A regulator with USB - 1 pc

Parallel connector - 1 set

Recommended for charging 100 - 200 Ah batteries

140W panel: Cells: Monocrystalline

Peak power [W]: 140

Power tolerance [%]: +3%

Max power voltage: Vmp [V]: 19.8

Max current: Imp [A]: 7.07

Voltage no-load Voc [V]: 23.76

Short circuit current: Isc [A]: 7.78

Length [mm]: 1130

Width [mm]: 670

Depth [mm]: 35

Weight [ kg]: 8

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, thickness 3.2mm

Charging regulator: Regulator operating mode: 12V/24V auto

Max. solar or load current: 20A

Low voltage cut-off: 11.1V

Low voltage reconnection: 12.6V

Max solar voltage: 50V

Max battery voltage: 8~16V

Max wire size: 6mm2

USB output port: 5VDC/1.2A

Protection rating: IP20

Temp. operation: -35℃ ~ +55℃

Instruction in Polish: YES

Dimension [mm] / Weight: 148 x 85.6 x 34.8 mm / 180g

Housing: Plastic
