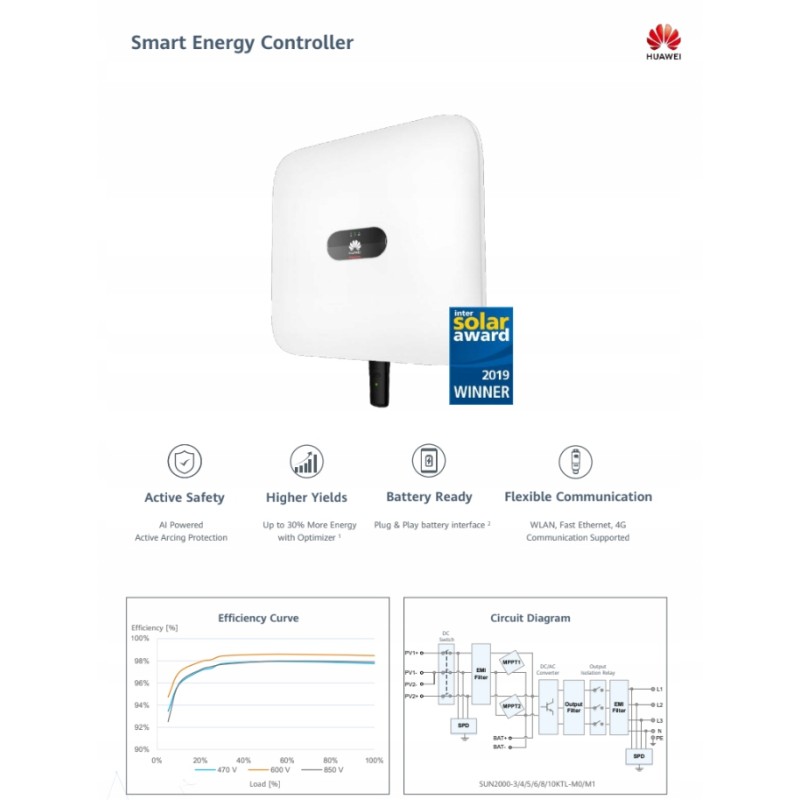

Inverter huawei sun2000 8ktl hc m1 3 phase

The latest generation of Huawei SUN2000 inverters – adapted to work with new types of PV panels with the highest power.

WiFi communication (WiFi dongle) included. Cooperation with Huawei SUN2000 optimizers, Fusion Home application.

Technical parameters:

Dimensions [mm): 525 x 470 x 166-

Weight: 18 kg-

Inverter type: 3 phase

Number of MPPT: 2-

Nominal power: 6000 VA

MPP min. voltage: 470.0 Volt

MPP max voltage: 850.0 Volt

Features and protections of the inverter:

Input side disconnect device.

Protection against island operation.

DC reverse polarity protection.

Insulation condition monitoring.

DC surge arrester, type II according to EN/IEC 61643-11.

AC surge protector, type II according to EN/IEC 61643-11.

Residual current monitoring (RCMU).

AC overcurrent protection

AC short-circuit protection

AC surge protection

Electric arc protection.

Remote control receiver.

Integrated PID function.

Protection against charging the battery from the mains.
