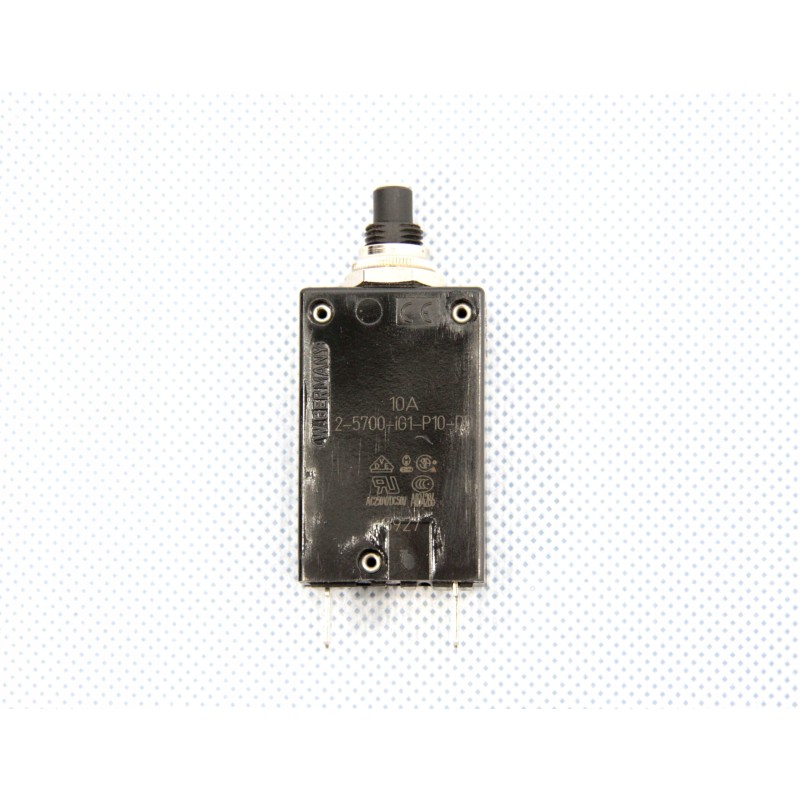

Aviation-automatic-fuse-10a-small size

am offering you a professional automatic fuse manufactured by the German company ETA.

Fuse type 2-5700-ig1-p10-dd.

The fuse is intended for use in professional equipment, aircraft and military equipment.

The offered component is of very good quality, has a hermetic body made of hard, temperature-resistant material.

The fuse is small in size, i.e. its dimensions are smaller than standard aircraft fuses. The method of manually disconnecting the fuse has also been changed. To disconnect it, press the lever firmly all the way. This prevents the fuse from being unintentionally turned off by hooking the mushroom head.

Fuse terminals designed for automotive-type terminals or for soldering.

The fuse lever has a characteristic white sector, which is visible when the fuse is activated.

The fuse can be used like a switch, when the lever is pressed it disconnects the circuit. .

The fuse has one disconnectable circuit with a nominal current of 10A.

The maximum nominal operating voltage of the fuse is 250V alternating current.

The fuse is also designed to operate at direct voltages up to 50V.

Fuse mounting in a hole with a diameter of 10 mm.

Fuse dimensions:

Height 29 mm

Width 14.5 mm

Length 46 mm

More data in the scan.

The fuse is brand new, German made, military made.

I provide a start-up warranty.
