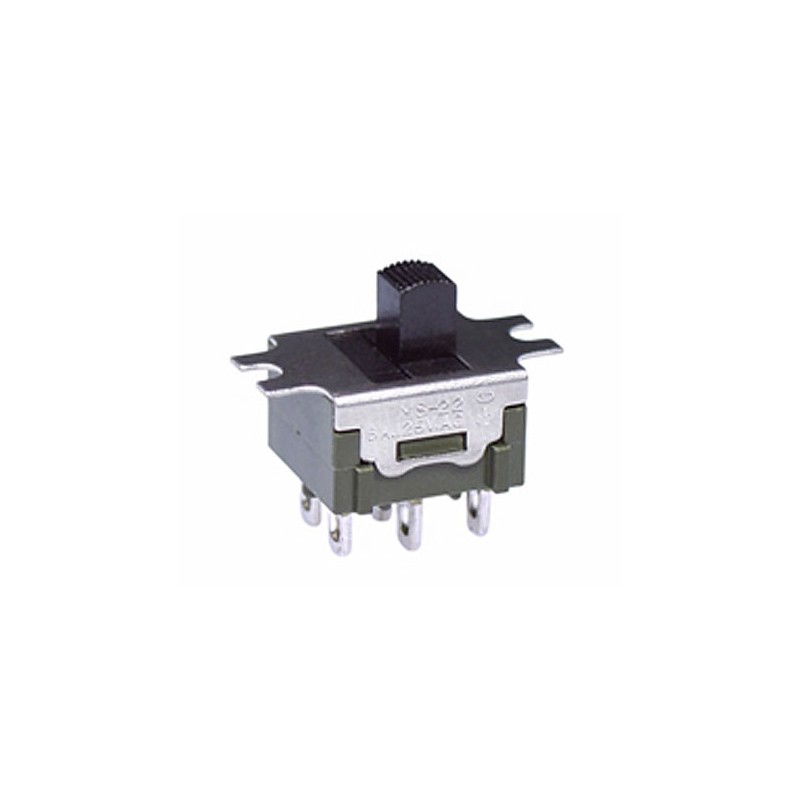

    1 pcs - NKK Switches Panel Mount Slide Switch DPDT Latching 3 A @ 250 V ac, 6 A @ 125 V ac Top
    • 1 pcs - NKK Switches Panel Mount Slide Switch DPDT Latching 3 A @ 250 V ac, 6 A @ 125 V ac Top

    1 pcs - NKK Switches Panel Mount Slide Switch DPDT Latching 3 A @ 250 V ac, 6 A @ 125 V ac Top

    Allparts-UK/15/R/125-1856
    £16.86
    Delivery: 4-7 business days
    Quantity
    4 Items

    Product Details
    NKK SWITCHES
    Allparts-UK/15/R/125-1856
    MS22AFW01
    4 Items

    Data sheet

    Manufacturer
    NKK SWITCHES
    Dimensions
    11.5 x 12.7 x 6.6mm
    Width
    11.5mm
    Length
    12.7mm
    Contact material
    silver alloy
    Depth
    6.6mm
    A-Supplier
    Allparts-UK-R
    Voltage Rating
    125 V ac, 250V ac
    Terminal Type
    Solder Lug
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Panel Mount
    Minimum Operating Temperature
    -30°C
    Contact Configuration
    DPDT
    Operating Temperature Range
    -30 - +85°C
    Actuator Type
    Top
    Contact Current Rating
    3 A @ 250 V ac, 6 A @ 125 V ac
    Mechanical Life
    100000Cycles
    Switch Operation
    Latching
    Contact Resistance
    10mΩ
