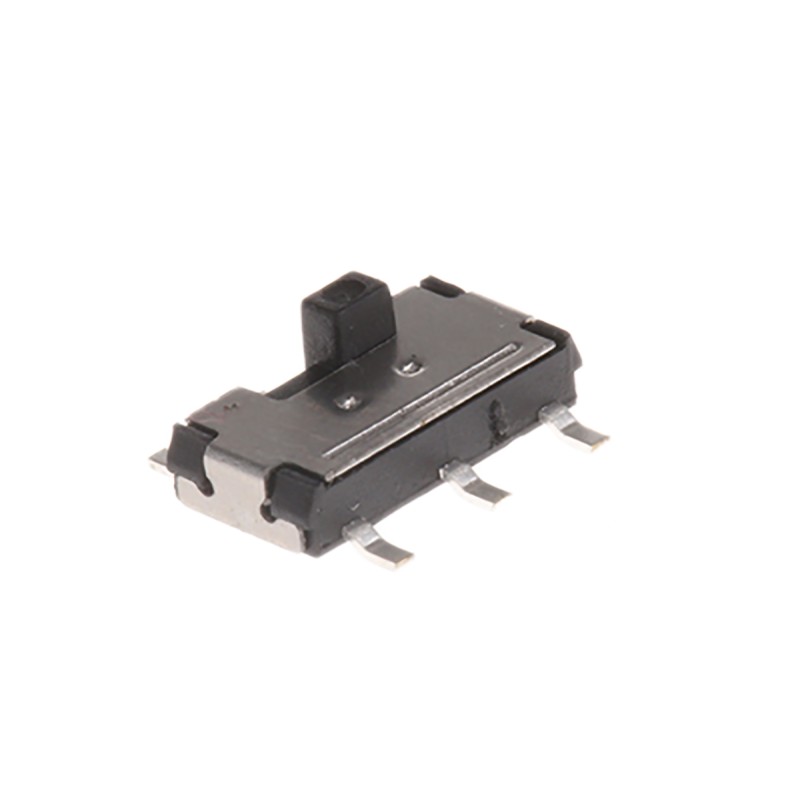

    10 pcs - AYZ0202AGRLC C & K PCB Slide Switch DPDT On-On-On 100 mA @ 12 V dc Slide
    • 10 pcs - AYZ0202AGRLC C & K PCB Slide Switch DPDT On-On-On 100 mA @ 12 V dc Slide

    10 pcs - AYZ0202AGRLC C & K PCB Slide Switch DPDT On-On-On 100 mA @ 12 V dc Slide

    10(Allparts)7931504
    C & K
    10 pcs - AYZ0202AGRLC C & K PCB Slide Switch DPDT On-On-On 100 mA @ 12 V dc Slide
    £49.02
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    C&K - AYZ Series Miniature Slide SwitchesAYZ Series switches from C&K. Typical applications include telecommunication products and test and measurement equipmentLow profileSingle & double pole modelsDouble & triple throw models2-position PCB mountMechanical life, 10000 operations.Glass filled nylon housing and actuator
    Product Details
    C & K
    10(Allparts)7931504
    AYZ0202AGRLC
    10 Items

    Data sheet

    Manufacturer
    C & K
    Dimensions
    7.2 x 4.5 x 1.5mm
    Width
    4.5mm
    Length
    7.2mm
    Contact material
    Silver Plated Brass (Fixed Contact), Silver Plated Copper Alloy (Movable Contact)
    Depth
    1.5mm
    A-Supplier
    Allparts-UK/15/R-14
    Terminal Type
    PC Terminal
    Maximum Operating Temperature
    +60°C
    Mounting Type
    PCB
    Minimum Operating Temperature
    -10°C
    Contact Configuration
    DPDT
    Operating Temperature Range
    -10 - +60°C
    Actuator Type
    Slide
    Contact Current Rating
    100 mA @ 12 V dc
    Mechanical Life
    10000Operations
    Switch Operation
    On-On-On
    Contact Resistance
    80mΩ
