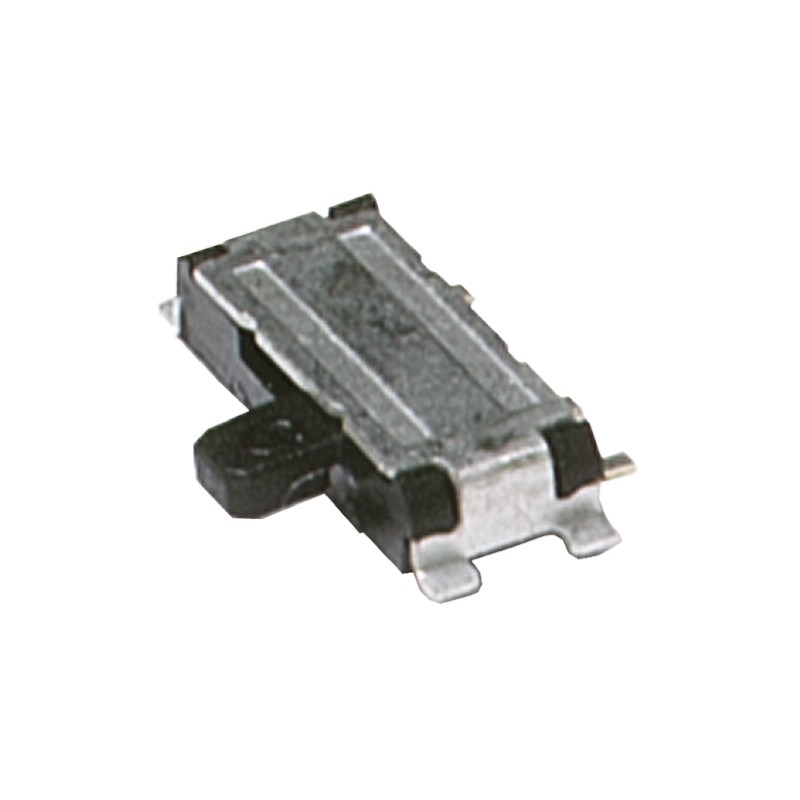

    10 pcs - PCM12SMTR C & K Surface Mount Slide Switch SPDT Latching 300 mA @ 6 V dc Slide
    • 10 pcs - PCM12SMTR C & K Surface Mount Slide Switch SPDT Latching 300 mA @ 6 V dc Slide

    10 pcs - PCM12SMTR C & K Surface Mount Slide Switch SPDT Latching 300 mA @ 6 V dc Slide

    10(Allparts)7931721P
    C & K
    10 pcs - PCM12SMTR C & K Surface Mount Slide Switch SPDT Latching 300 mA @ 6 V dc Slide
    £34.96
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    C&K - PCM Series Slide SwitchesPCM Series ultraminiature slide switches from C&K Components. Typical applications include test and measurement equipment, computer peripheral devices and telecommunication products. These units have an ultraminiature, low profile design and are ideal for applications where space is at a premium.Ultraminiature surface mountLow profileSPDT and SP3T optionsNon- shorting contactsMechanical life: 10000 cyclesMaterials, housing: Stainless Steel / PA6T, actuator: Nylon 4/6
    Product Details
    C & K
    10(Allparts)7931721P
    PCM12SMTR
    10 Items

    Data sheet

    Manufacturer
    C & K
    Dimensions
    6.7 x 1.4 x 2.6mm
    Width
    2.6mm
    Length
    6.7mm
    Contact material
    Silver Plated Copper Alloy
    Depth
    1.4mm
    A-Supplier
    Allparts-UK/15/R-14
    Terminal Type
    PC Terminal
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -20°C
    Contact Configuration
    SPDT
    Operating Temperature Range
    -20 - +85°C
    Actuator Type
    Slide
    Contact Current Rating
    300 mA @ 6 V dc
    Mechanical Life
    10000Cycles
    Switch Operation
    Latching
    Contact Resistance
    70mΩ
