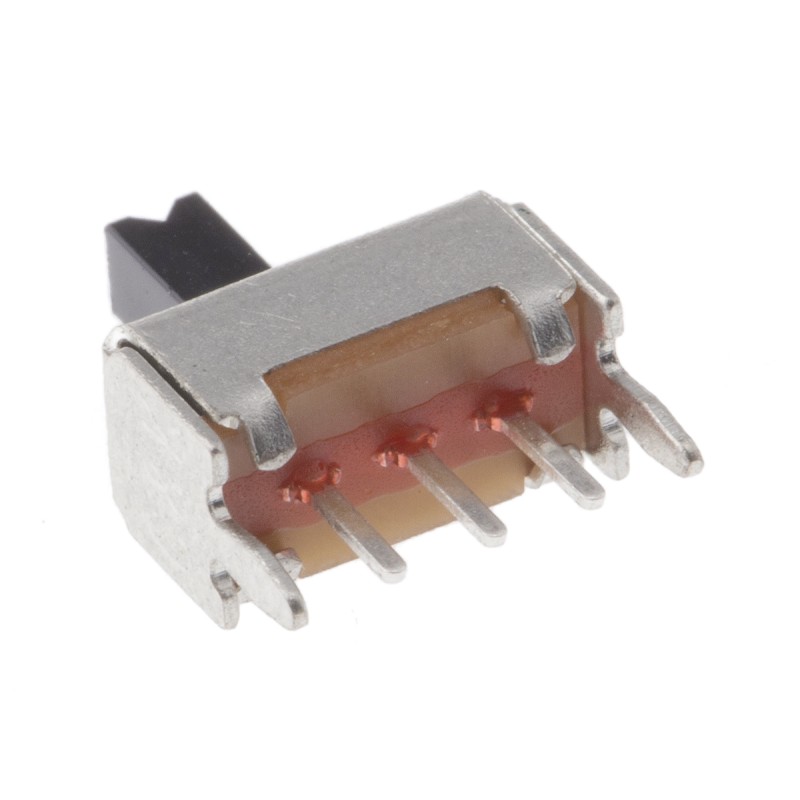

    10 pcs - OS102011MS2QN1 C & K Through Hole Slide Switch SPDT Latching 100 mA @ 12 V dc Slide
    • 10 pcs - OS102011MS2QN1 C & K Through Hole Slide Switch SPDT Latching 100 mA @ 12 V dc Slide
    • 10 pcs - OS102011MS2QN1 C & K Through Hole Slide Switch SPDT Latching 100 mA @ 12 V dc Slide

    10 pcs - OS102011MS2QN1 C & K Through Hole Slide Switch SPDT Latching 100 mA @ 12 V dc Slide

    10(Allparts)7874864
    C & K
    10 pcs - OS102011MS2QN1 C & K Through Hole Slide Switch SPDT Latching 100 mA @ 12 V dc Slide
    £27.80
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    C&K - OS Series Slide SwitchesThe OS Series miniature slide switches from C&K Components are compact and robust. Available with either straight or right angle actuation, the OS Series slide switches feature sturdy PC terminals for secure mounting. These two position PCB mounted switches are typically use in test and measurement equipment, computer peripheral devices and general electronic consumer products.Features and Benefits:• Non- shorting contacts• No of operations: 10000 under full load min.• Housing Material: Tin Plated steel,• Actuator Material: POM
    Product Details
    C & K
    10(Allparts)7874864
    OS102011MS2QN1
    10 Items

    Data sheet

    Manufacturer
    C & K
    Dimensions
    8.6 x 4.3 x 8mm
    Width
    4.3mm
    Length
    8.6mm
    Contact material
    Silver Plated Brass
    Depth
    8mm
    A-Supplier
    Allparts-UK/15/R-14
    Terminal Type
    PC Terminal
    Maximum Operating Temperature
    +70°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -10°C
    Contact Configuration
    SPDT
    Operating Temperature Range
    -10 - +70°C
    Actuator Type
    Slide
    Contact Current Rating
    100 mA @ 12 V dc
    Mechanical Life
    10000Cycles
    Switch Operation
    Latching
    Contact Resistance
    20mΩ
