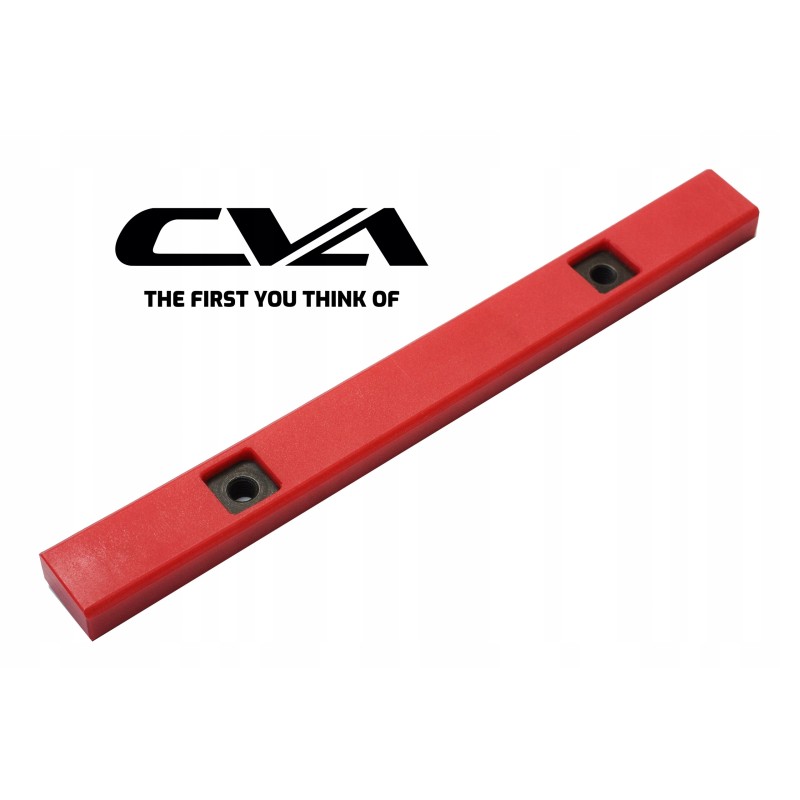

Slide and arm extension cat excavator, 15 mm thick

SLIDING ARM EXTENSION CAT EXCAVATOR-LAD GR 15 MM *Product description:

Arm extension slide used in Caterpillar construction machines.

Producer: CVA!

The slides are made of one element - TURNED, they are not made by injection method!!!

CVA slides are rolled slides made of polyamide. Thanks to the materials used and the production method, which is rolling, the slides are characterized by an extended service life.

LONG LIFE glides are characterized by good mechanical properties, abrasion resistance and a low coefficient of friction.

The great advantage of polyamides is their shape stability at elevated temperatures. Moreover, they are resistant to gasoline and solvents. They demonstrate very high stiffness and high dimensional stability.

Features:

- abrasion resistant,

- low coefficient of friction,

- good sliding properties,

- dimensional stability at large temperature changes,

- vibration damping

- very high impact strength even at low temperatures - good chemical resistance, e.g. to oils, fats, gasoline, etc.

Dimensions:

Length: 298 mm

Width: 30mm

Thickness: 15mm

Bolt spacing: 161mm

Screw: M10x1.5

Machine models: 422E, 422F, 428E, 428F, 432E, 432F, 434E, 434F, 442E, 444E, 444F.

*Comparison number: 3199667 PI
