    100 pcs - VY2222M31Y5VS63V7 Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 300V ac ±20% Y5V Dielectric, VY2, Through Hole +1
    • 100 pcs - VY2222M31Y5VS63V7 Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 300V ac ±20% Y5V Dielectric, VY2, Through Hole +1

    100 pcs - VY2222M31Y5VS63V7 Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 300V ac ±20% Y5V Dielectric, VY2, Through Hole +1

    100(Allparts)1335629
    VISHAY

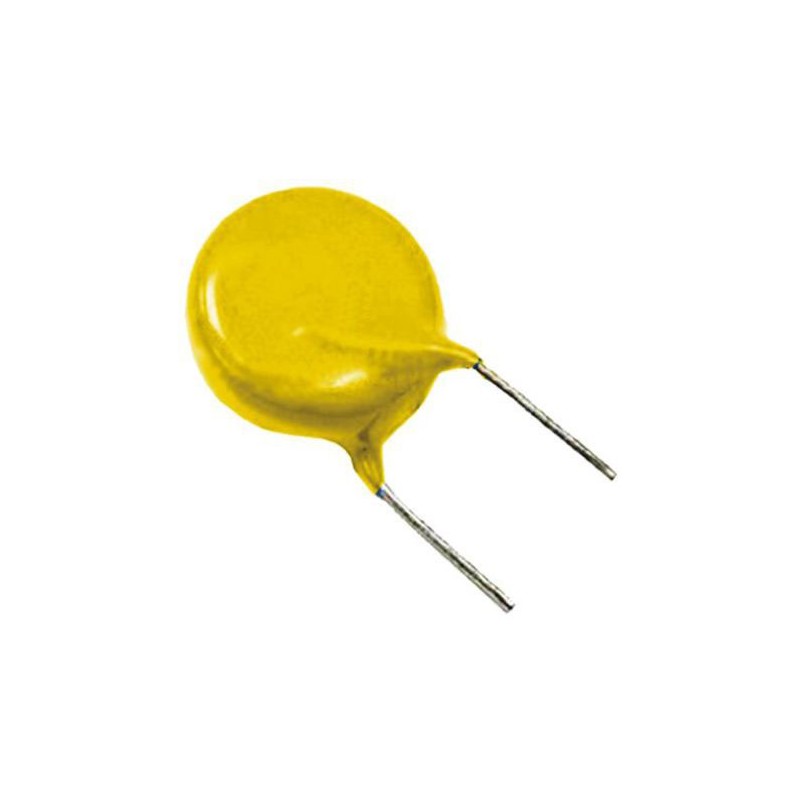

    100 pcs - VY2222M31Y5VS63V7 Vishay Single Layer Ceramic Capacitor (SLCC) 2.2nF 300V ac ±20% Y5V Dielectric, VY2, Through Hole +125°C Max Op. Temp.
    £63.59
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Vishay VY2 SeriesVishay VY2 Series capacitors have a ceramic disc of which both sides are silver-plated, encapsulated in a flame retardant epoxy resin. The radial connection leads are made of tinned copper clad steel. The VY2 capacitors offer a high reliability and extended temperature range making them suitable for a wide range of applications.FeaturesSinglelayer AC disc capacitorsFlame retardantHigh reliabilityApplicationsAcross-the-lineLine by-passAntenna couplingApprovalsIEC 60384-14.4, UL 60384-14, DIN EN 60384-14, CSA E60384-1:03, CSA E60384-14:09.X7R Dielectric
    Product Details
    VISHAY
    100(Allparts)1335629
    VY2222M31Y5VS63V7
    10 Items

    Data sheet

    Manufacturer
    VISHAY
    Capacitance
    2.2nF
    Tolerance
    ±20%
    Dimensions
    8 (Dia.) x 5mm
    Dielectric
    Y5V
    Diameter
    8mm
    Height
    12mm
    Depth
    5mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    VY2
    Terminal Type
    Radial
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Voltage
    300V ac
    Dielectric Material Family
    Ceramic
    Dissipation Factor
    2.5%
