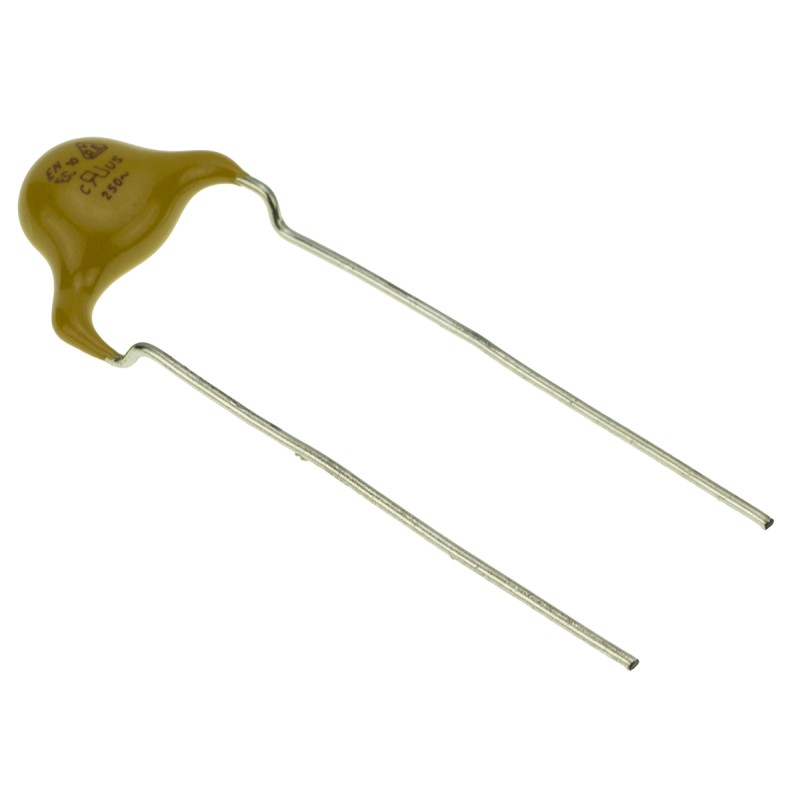

    50 pcs - VY1220K31U2JQ6TV0 Vishay Single Layer Ceramic Capacitor (SLCC) 22pF 500V ac ±10% U2J Dielectric, VY1, Through Hole +125
    • 50 pcs - VY1220K31U2JQ6TV0 Vishay Single Layer Ceramic Capacitor (SLCC) 22pF 500V ac ±10% U2J Dielectric, VY1, Through Hole +125

    50 pcs - VY1220K31U2JQ6TV0 Vishay Single Layer Ceramic Capacitor (SLCC) 22pF 500V ac ±10% U2J Dielectric, VY1, Through Hole +125

    50(Allparts)7368833
    VISHAY
    50 pcs - VY1220K31U2JQ6TV0 Vishay Single Layer Ceramic Capacitor (SLCC) 22pF 500V ac ±10% U2J Dielectric, VY1, Through Hole +125°C Max Op. Temp.
    £39.88
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    X1/Y1 Ceramic Disc VY1 SeriesThe capacitor consists of a ceramic disc which is silver plated on both sides. Connection leads are made of tinned copper clad steel having a diameter of 0.6 mm. The capacitors may be supplied with vertical (inline) kinked leads having a lead spacing of 10.0 mm, or 12.5 mm. Encapsulation is made of flame retardant epoxy resin in accordance with UL 94 V-0.Features- Complying with IEC 60384-14 4th edition - High reliability - Vertical (inline) kinked or straight leads - Singlelayer AC disc safety capacitorsApplicatiions- X1, Y1 according to IEC 60384-14.4 - Across-the-line - Line by-pass - Antenna couplingApprovalsIEC 60384-14.4 UL 60384-14 DIN EN 60384-14 CSA E60384-1:03, CSA E60384-14:09 CQC11-471112-2009ApprovalsUL, CSA, VDEX Class - X1
    Product Details
    VISHAY
    50(Allparts)7368833
    VY1220K31U2JQ6TV0
    10 Items

    Data sheet

    Manufacturer
    VISHAY
    Capacitance
    22pF
    Tolerance
    ±10%
    Dimensions
    8 (Dia.) x 5mm
    Dielectric
    U2J
    Diameter
    8mm
    Height
    11mm
    Depth
    5mm
    A-Supplier
    Allparts-UK/15/R-11
    Series
    VY1
    Terminal Type
    Radial
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -40°C
    Voltage
    500V ac
    Dielectric Material Family
    Ceramic
