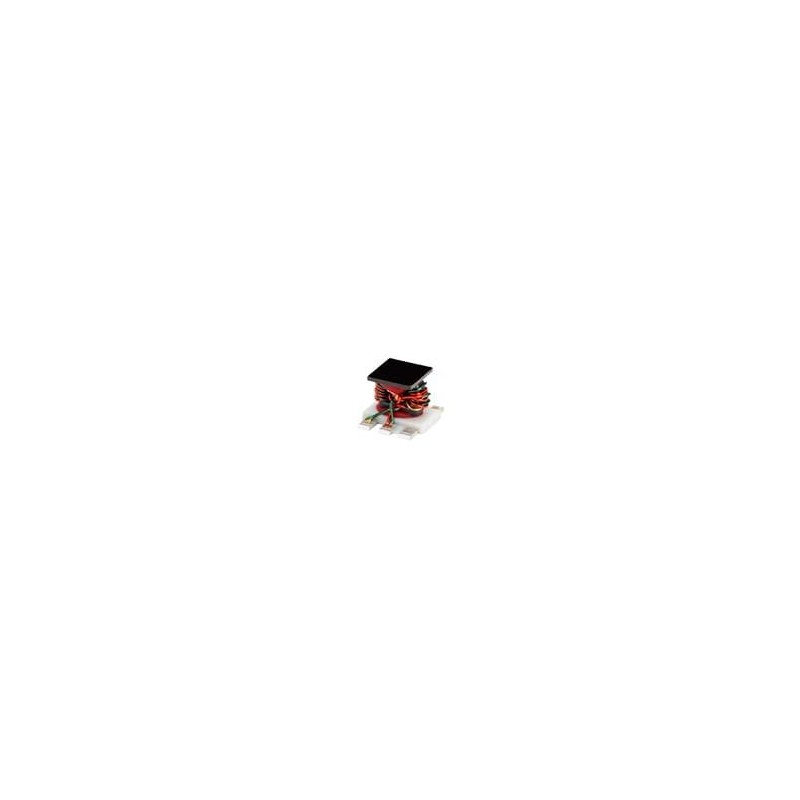

    1 pcs : TCM2-452AX+ - Audio & Signal Transformers 1:2 CORE & WIRE Transformer, 1000 - 4500 MHz, 50?
    • 1 pcs : TCM2-452AX+ - Audio & Signal Transformers 1:2 CORE & WIRE Transformer, 1000 - 4500 MHz, 50?

    1 pcs : TCM2-452AX+ - Audio & Signal Transformers 1:2 CORE & WIRE Transformer, 1000 - 4500 MHz, 50?

    Allparts-UK/M/139-TCM2-452AX+
    £20.16
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TCM Surface-Mount RF Transformers Mini-Circuits TCM Surface-Mount RF Transformers feature an ultra-wide bandwidth with good return loss and excellent amplitude and phase unbalance capability. The RF transformers provide an aqueous washable plastic base with solder-plated leads. The TCM series is ideal for various applications, including impedance matching, push-pull amplifiers, Wi-Fi®, and more. The Mini-Circuits TCM Surface-Mount RF Transformers also offer models with Top-hat® capability, which allows faster pick-and-place functions and enables visual identification marking.
    Product Details
    Mini-Circuits
    Allparts-UK/M/139-TCM2-452AX+
    TCM2-452AX+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Width
    4.06 mm
    Height
    4.06 mm
    Application
    CBRS 3.45 GHz to 3.98 GHz, IoT and ISM, LTE and 5G MIMO Infrastructure, Wideband Push-Pull Amplifiers
    Length
    3.81 mm
    Series
    TCM2
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Type
    Surface-Mount Transmission Line Core and Wire Transformer
    Power Rating
    1 W
    Product Type
    Audio & Signal Transformers
    Termination Style
    SMD/SMT
    Frequency Range
    1 GHz to 4.5 GHz
    Product Category
    Audio & Signal Transformers
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Mini-Circuits
    Product
    RF Transformers
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Transformers
