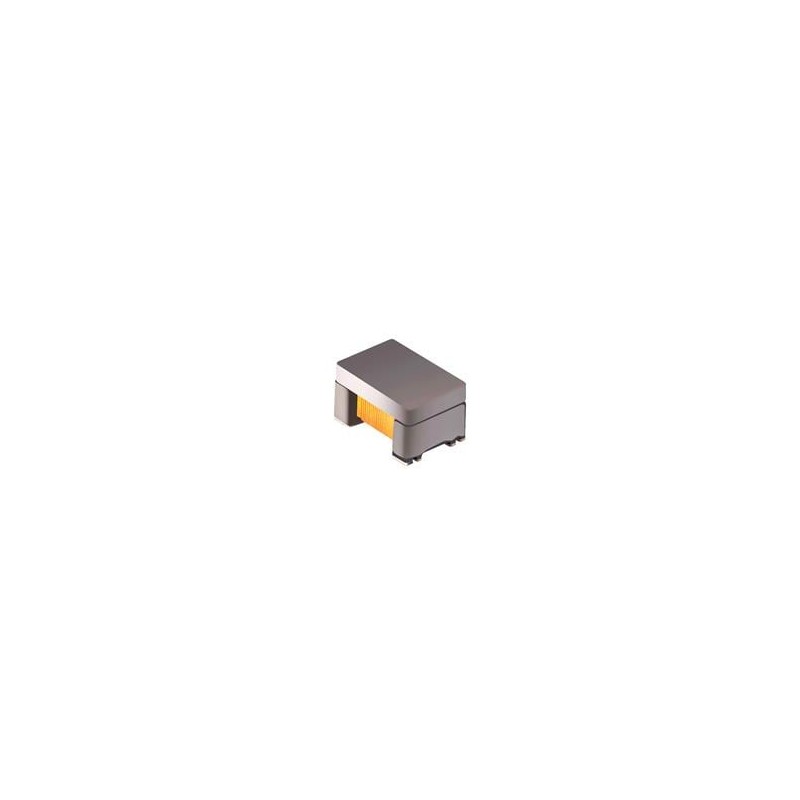

1 pcs : SM453229-381N7Y - Audio & Signal Transformers Chip LAN,10/100/1G xformer,4.7x3.2mm
    • 1 pcs : SM453229-381N7Y - Audio & Signal Transformers Chip LAN,10/100/1G xformer,4.7x3.2mm

    1 pcs : SM453229-381N7Y - Audio & Signal Transformers Chip LAN,10/100/1G xformer,4.7x3.2mm

    electronicparts-UK/M/652-SM453229-381N7Y
    BOURNS
    £10.56
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Chip LAN Transformers Bourns SM453229 Chip LAN Transformers are ideal for use in LAN interfaces for a variety of telecommunication and network devices. Bourns SM453229-231N7Y and SM453229-381N7Y chip LAN 10/100/1000 Base-T transformers are a discrete, center-tapped component wound on a drum core and capped with a ferrite plate to emulate the result of the close magnetic path of a toroid core. Bourns SRF2012A-801Y common-mode chip inductor pairs with the chip LAN transformer to provide EMI suppression. SM453229-231N7Y and SM453229-381N7Y are compliant with IEEE 802.3, and SM453229-231N7Y is PoE+ capable.
    Product Details
    BOURNS
    electronicparts-UK/M/652-SM453229-381N7Y
    SM453229-381N7Y
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Width
    3.22 mm
    Height
    2.9 mm
    Application
    10/100/1000 Base-T
    Length
    4.7 mm
    Series
    SM453229-381N7Y
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Isolation Voltage
    1.5 kVAC
    Product Type
    Audio & Signal Transformers
    Termination Style
    SMD/SMT
    Frequency Range
    1 MHz to 100 MHz
    Product Category
    Audio & Signal Transformers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Bourns
    Product
    LAN Transformers
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    Transformers
    Unit Weight
    160 mg
