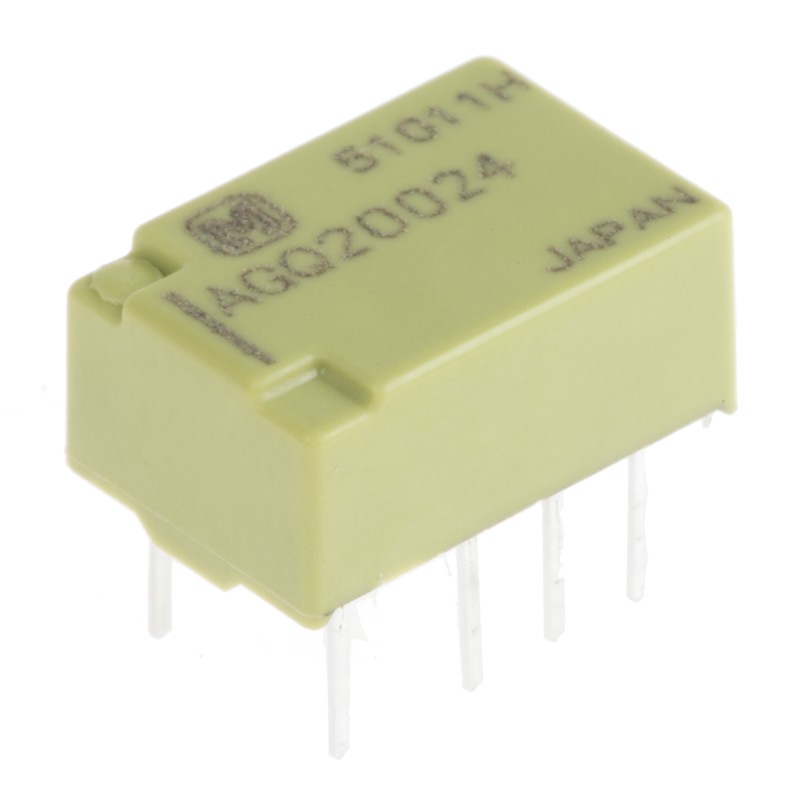

    1 pcs - Panasonic PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT
    • 1 pcs - Panasonic PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT
    • 1 pcs - Panasonic PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

    1 pcs - Panasonic PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

    Allparts-UK/15/R/815-4815
    PANASONIC
    £11.39
    Delivery: 4-7 business days
    Quantity
    324 Items

    Product Details
    PANASONIC
    Allparts-UK/15/R/815-4815
    AGQ20024
    324 Items

    Data sheet

    Manufacturer
    PANASONIC
    Dimensions
    10 x 5.2 x 7.2mm
    Height
    5.2mm
    Application
    Measurement Equipment, Safety, Telecommunications
    Length
    10.9mm
    Contact material
    Au Plated AgPd
    Depth
    7.2mm
    Number of poles
    2
    A-Supplier
    Allparts-UK-R
    Series
    FTR-B4
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    DPDT
    Switching Current
    1A
    Life
    10^5 (Electrical AC) Operations, 10^5 (Electrical-DC) Operations, 5 x 10^7 (Mechanical) Operations
    Coil Resistance
    2500Ω
    Maximum Switching Power AC
    37.5VA
    Coil Power
    230mW
    Isolation Coil To Contact
    2.5kV
    Maximum Switching Voltage AC
    125V
    Operating Temperature Range
    -40 - +85°C
    Maximum Switching Power DC
    30 W
    Maximum Switching Current AC
    0.3 A
    Maximum Switching Current DC
    1 A
    Maximum Switching Voltage DC
    110V
    Features
    Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
    Coil Voltage
    24V dc
    Latching
    No
    Electrical Life
    100000 Operations Cycles
