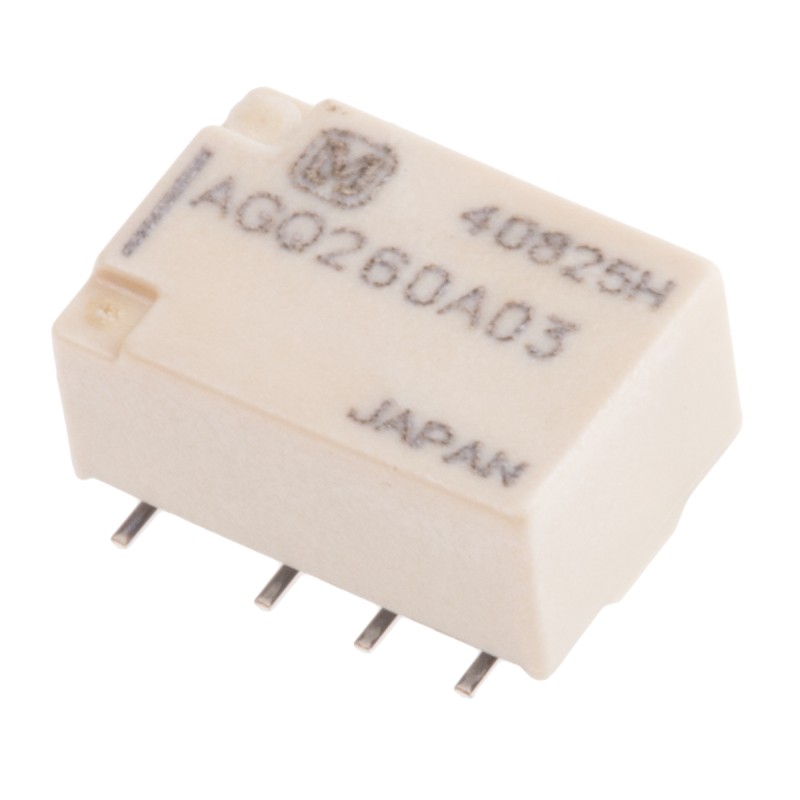

    1 pcs - Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT
    • 1 pcs - Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT
    • 1 pcs - Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT

    1 pcs - Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, DPDT

    Allparts-UK/15/R/699-5932
    PANASONIC
    £11.44
    Delivery: 4-7 business days
    Quantity
    134 Items

    Product Details
    PANASONIC
    Allparts-UK/15/R/699-5932
    AGQ260A03
    134 Items

    Data sheet

    Manufacturer
    PANASONIC
    Dimensions
    10 x 5.2 x 7.2mm
    Height
    5.2mm
    Length
    10.6mm
    Contact material
    Au Plated AgPd
    Depth
    7.7mm
    Number of poles
    2
    A-Supplier
    Allparts-UK-R
    Series
    FTR-C1
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    DPDT
    Switching Current
    1A
    Life
    100000 (Electrical) cycles, 50000000 (Mechanical) cycles
    Coil Resistance
    90Ω
    Maximum Switching Power AC
    37.5VA
    Coil Power
    100mW
    Isolation Coil To Contact
    1.5kV rms
    Maximum Switching Voltage AC
    125V
    Operating Temperature Range
    -40 - +85°C
    Maximum Switching Power DC
    30 W
    Maximum Switching Current AC
    0.3 A
    Maximum Switching Current DC
    1 A
    Maximum Switching Voltage DC
    110V
    Features
    Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
    Coil Voltage
    3V dc
    Latching
    No
    Electrical Life
    100000 Operations Cycles
