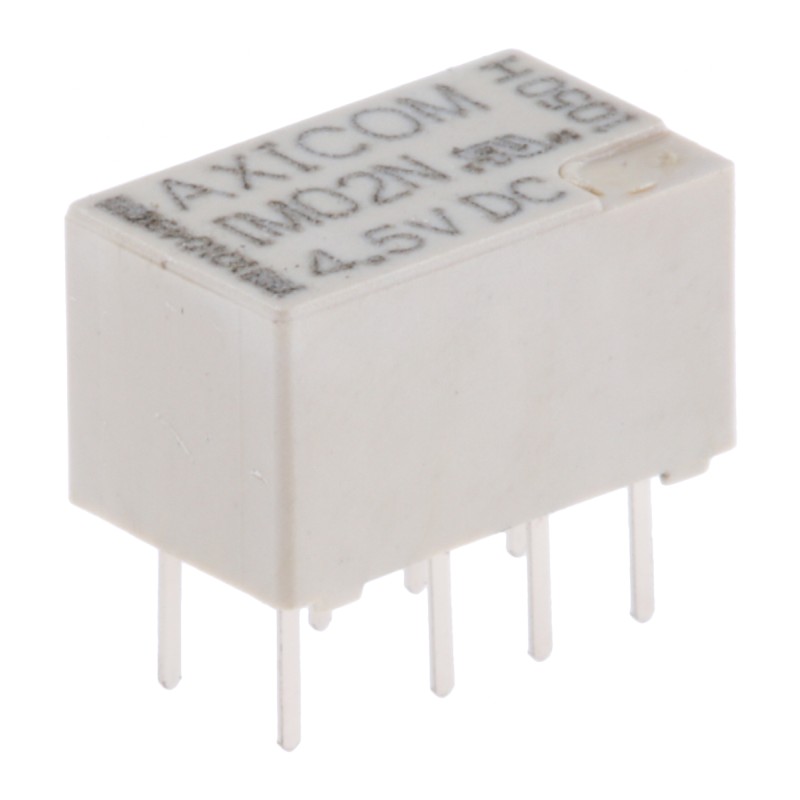

10 pcs - 1-1462038-2 TE Connectivity PCB Mount Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT

TE Connectivity PCB Mount Signal Relay - IM SeriesIM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.Features and Benefits:• Slimline and low profile - 10x6x5.65 mm• Bifurcated contacts, gold plated• Hermetically sealed (RT V), IP67• High mechanical shock resistance up to 300G functional, 500G survival• Insulation resistance at 500V dc >,10⁹Ω• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45. • 1500V between open contacts and 2500V between coil and contactsApplications:• Telecommunication equipment• Optical network terminals• Office equipment• Test and measurement equipment• Medical equipment • Automotive applicationsApprovalsUL
