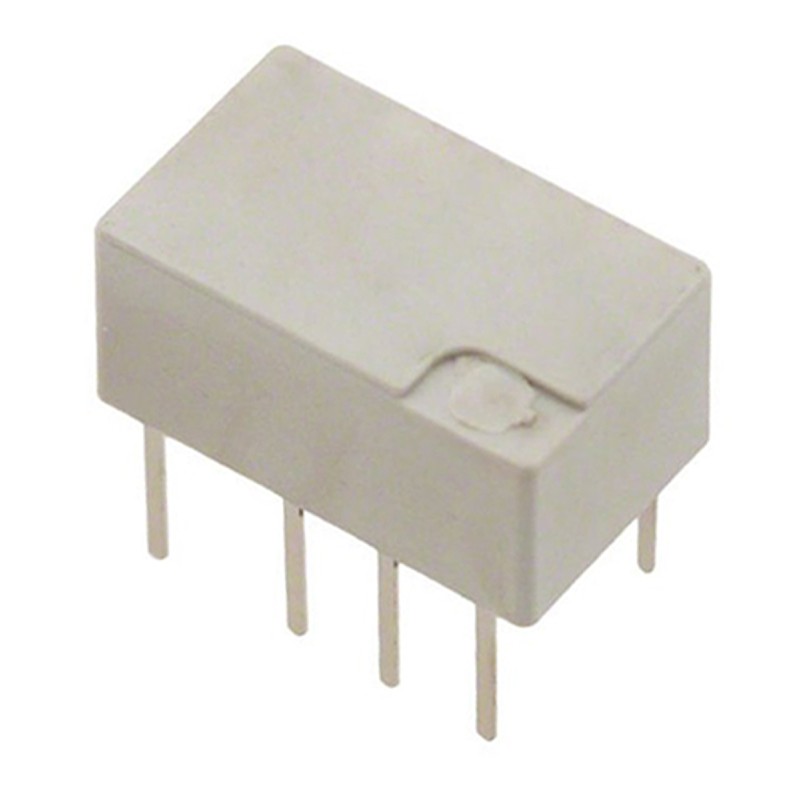

    10 pcs - 1462037-4 TE Connectivity PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT
    • 10 pcs - 1462037-4 TE Connectivity PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT

    10 pcs - 1462037-4 TE Connectivity PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT

    10(Allparts)9097996
    TE Connectivity PCB Mount Signal Relay, 3V dc Coil, 2A Switching Current, DPDT
    £53.94
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TE Connectivity PCB Mount Signal Relay - IM SeriesIM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.Features and Benefits:• Slimline and low profile - 10x6x5.65 mm• Bifurcated contacts, gold plated• Hermetically sealed (RT V), IP67• High mechanical shock resistance up to 300G functional, 500G survival• Insulation resistance at 500V dc >,10⁹Ω• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45. • 1500V between open contacts and 2500V between coil and contactsApplications:• Telecommunication equipment• Optical network terminals• Office equipment• Test and measurement equipment• Medical equipment • Automotive applicationsApprovalsUL
    Product Details
    TE Connectivity
    10(Allparts)9097996
    1462037-4
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Dimensions
    10 x 6 x 5.65mm
    Height
    5.2mm
    Application
    Access & Transmission Equipment, Automotive Applications, Consumer Electronics, HVAC, Industrial Controls, Measurement & Test Equipment, Medical Equipment, Modems, Office & Business Equipment, Optical Network Terminals, Telecommunication
    Length
    10mm
    Contact material
    Gold Plated
    Depth
    6mm
    Number of poles
    2
    A-Supplier
    Allparts-UK/15/R-17
    Series
    IM
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    UL
    Contact Configuration
    DPDT
    Switching Current
    2A
    Life
    1000000000 (Mechanical) Operations, 500000 (Electrical) Operations
    Coil Resistance
    64Ω
    Maximum Switching Power AC
    62.5VA
    Coil Power
    140mW
    Isolation Coil To Contact
    1.8kV rms
    Maximum Switching Voltage AC
    250V ac
    Operating Temperature Range
    -40 - +85°C
    Relay Switching Classification
    Non-Latching Relay
    Maximum Switching Power DC
    60 W
    Maximum Switching Current DC
    2 A
    Maximum Switching Voltage DC
    220V dc
    Features
    Bifurcated Contacts, Low Coil Power Consumption
    Coil Voltage
    3V dc
    Latching
    No
