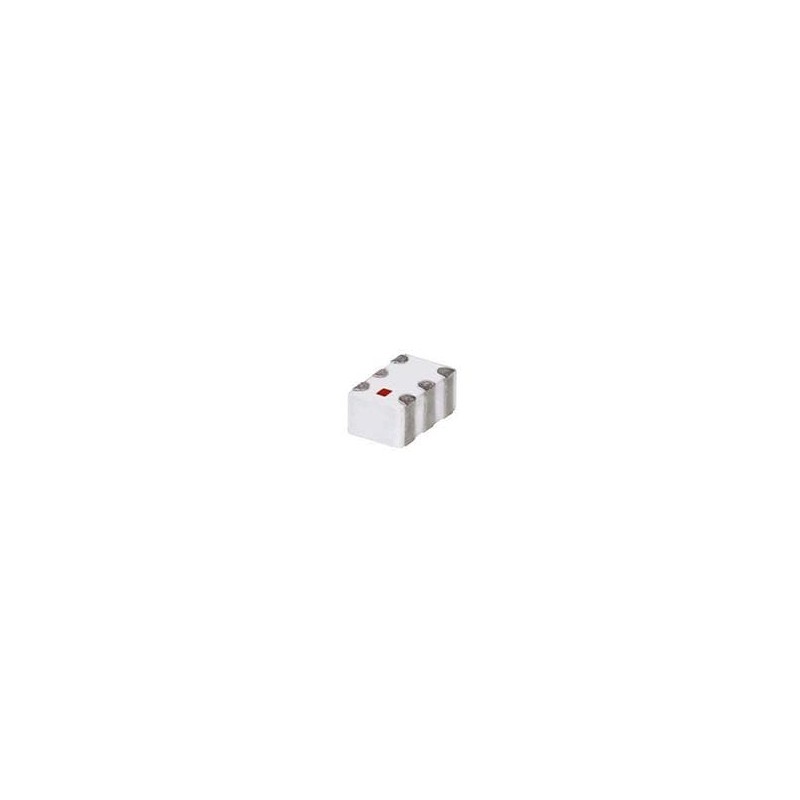

1 pcs : HFCW-5500+ - Signal Conditioning LTCC High Pass Filter, 6100 - 20000 MHz
    • 1 pcs : HFCW-5500+ - Signal Conditioning LTCC High Pass Filter, 6100 - 20000 MHz

    1 pcs : HFCW-5500+ - Signal Conditioning LTCC High Pass Filter, 6100 - 20000 MHz

    electronicparts-UK/M/139-HFCW-5500+
    £21.55
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    HFCW Ceramic High Pass Filters Mini-Circuits HFCW Ceramic High Pass Filters with passband offer a 5500MHz to 21000MHz frequency range, 50Ω impedance, and 34dB to 45dB typical rejection. These filters are housed in a small 0603 ceramic form factor with wraparound terminations, making them ideal for dense PCB layouts. The strategically constructed layout provides good insertion loss over a wide band. Typical applications for Mini-Circuits HFCW Ceramic High Pass Filters include test and measurement, military, telecommunications, and broadband wireless systems.
    Product Details
    electronicparts-UK/M/139-HFCW-5500+
    HFCW-5500+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Impedance
    50 Ohms
    Frequency
    6.1 GHz to 20 GHz
    Series
    HFCW
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 55 C
    Type
    Ceramic High Pass Filter
    Product Type
    Signal Conditioning
    Termination Style
    SMD/SMT
    Product Category
    Signal Conditioning
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Mini-Circuits
    Product
    High Pass Filters - HPF
    Factory Pack Quantity Factory Pack Quantity
    4000
    Subcategory
    Filters
