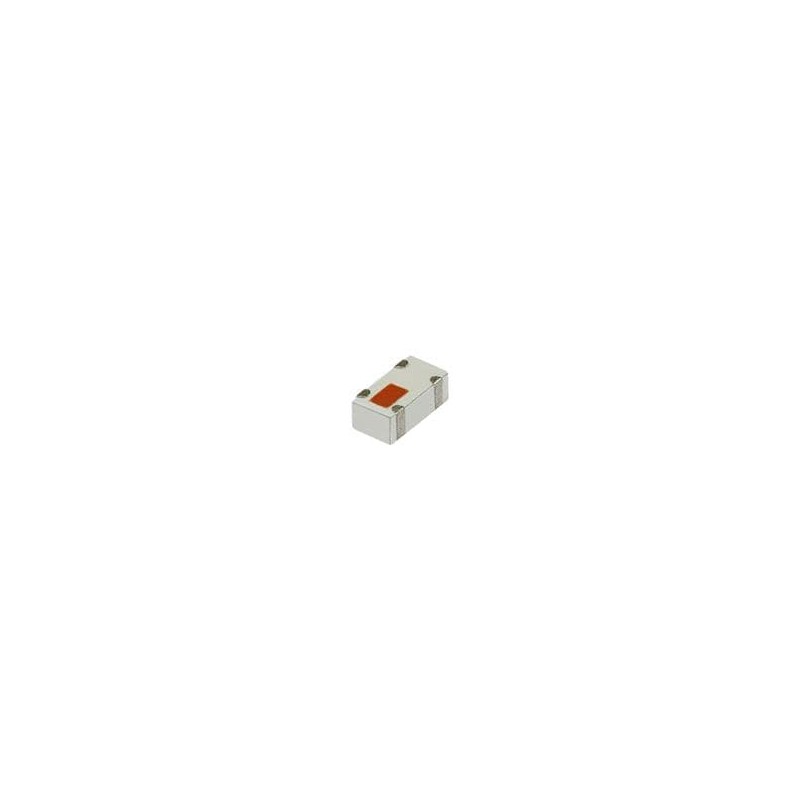

1 pcs : LDPO-33-53+ - Signal Conditioning DIPLEXER / SURF MOUNT / RoHS
    • 1 pcs : LDPO-33-53+ - Signal Conditioning DIPLEXER / SURF MOUNT / RoHS

    1 pcs : LDPO-33-53+ - Signal Conditioning DIPLEXER / SURF MOUNT / RoHS

    electronicparts-UK/M/139-LDPO-33-53+
    £17.98
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    LDPO-33-53+ Ceramic Diplexer Mini-Circuits LDPO-33-53+ Ceramic Diplexer is a tiny surface-mount diplexer with a low-pass channel from DC to 3000MHz and a high-pass channel from 5000MHz to 5750MHz. This model provides low passband insertion loss, high-stopband rejection, and RF input power handling up to 3W. The LDPO-33-53+ diplexer is fabricated using LTCC technology and the unit comes housed in a tiny 0402 ceramic package. This diplexer holds excellent thermal stability and is designed to operate from -55°C to 125°C temperature range. The LDPO-33-53+ ceramic diplexer is ideally used in ISM band, Wi-Fi, Bluetooth®, and cellular applications.
    Product Details
    electronicparts-UK/M/139-LDPO-33-53+
    LDPO-33-53+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Impedance
    50 Ohms
    Frequency
    DC to 3 GHz, 5 GHz to 5.75 GHz
    Series
    LDPO
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 55 C
    Type
    Ceramic Diplexer
    Product Type
    Signal Conditioning
    Termination Style
    SMD/SMT
    Product Category
    Signal Conditioning
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Mini-Circuits
    Product
    SAW Diplexers
    Factory Pack Quantity Factory Pack Quantity
    4000
    Subcategory
    Filters
